A Low-Distortion Fourth-Order Bandpass Sigma-Delta Modulator Using Double-Sampling Technique

Abstract:

In this paper, a low-distortion fourth-order bandpass sigma-delta (ΣΔ) modulator is proposed based on a switched-capacitor resonator which employs double-sampling technique to relax the requirements for circuits and reduce opamp power consumption and chip area. The modulator is based on the low-distortion low pass ΣΔ modulator. The system level simulation results compare between the low-distortion architecture and the traditional one is given. The full differential circuit applying two-path technique is implemented with TSMC0.18µm CMOS process. It achieves a peak SNR (signal-to-noise ratio) of 85.9dB and DR (dynamic range) of 91dB with 200 kHz bandwidth centered at 20MHz which are better than the conventional bandpass ΣΔ modulator.

You might also be interested in these eBooks

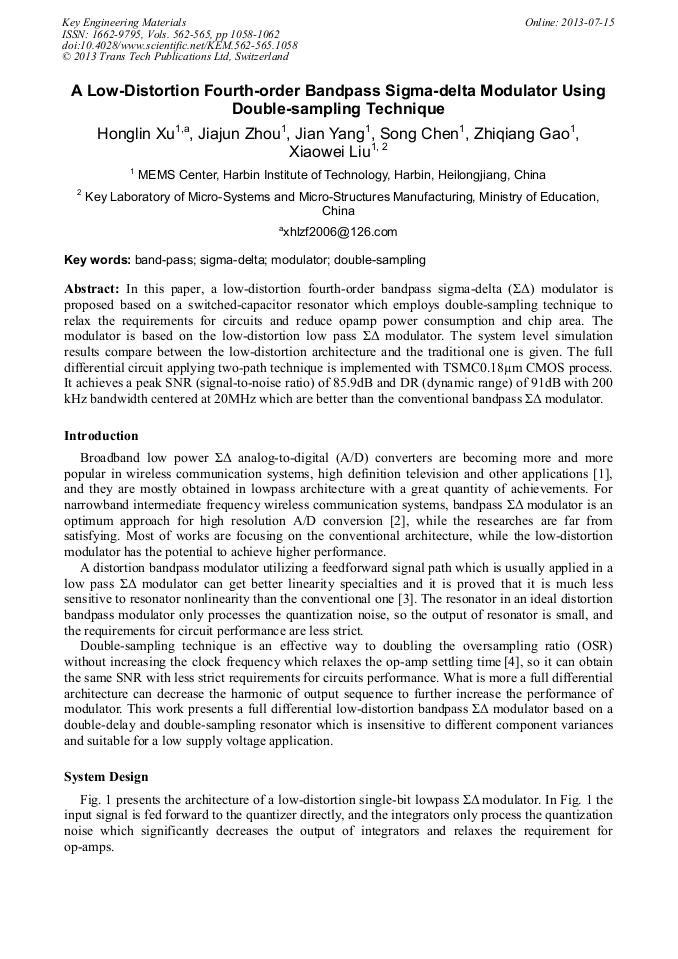

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 562-565)

Pages:

1058-1062

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.562-565.1058

Citation:

Cite this paper

Online since:

July 2013

Authors:

Hong Lin Xu, Jia Jun Zhou, Jian Yang, Song Chen, Zhi Qiang Gao, Xiao Wei Liu

Keywords:

Band-Pass, Double-Sampling, Modulator, Sigma-Delta

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Weilun Shen, Tao Wang and Gabor C. Temes, Low Distortion ΔΣ Modulator Employing Modified Charge-Pump Based Swtiched-Capacitor Integrator, 53rd IEEE International Midwest Symposium on Circuits and Systems, 2010, pp.901-904

DOI: 10.1109/mwscas.2010.5548655

Google Scholar

[2] Naoya Waki, Hiroki Sato, Akira Hyogo and Keitaro Sekine, A Low-Distortion Two-path Fourth-order Bandpass Delta-Sigma Modulator Using Horizontal Opamp Sharing, 50th Midwest Symposium on Circuits and Systems, Aguest 2007, pp.1372-1375

DOI: 10.1109/mwscas.2007.4488804

Google Scholar

[3] A. Rusu and M. Ismail, Low-distortion Bandpass Σ-Δ Modulator for Wireless Radio Receivers, Electronical Letters. Vol. 41, No. 19. 15 September 2005, pp.1044-1046

DOI: 10.1049/el:20052167

Google Scholar

[4] P. J. Hurst and W. J. Mclntyre, Double sampling in switched-capacitor delta-sigma AD converters, IEEE International Symposium on Circuits and Systems, Vol. 2. May 1990, pp.902-905

DOI: 10.1109/iscas.1990.112238

Google Scholar

[5] Teemu Salo, Saska Lindfors and Kari A. I. Halonen, An 80-MHz Bandpass ΔΣ Modulator for a 100-MHz IF Receiver, IEEE JOURNAL OF SOLID-STATE CIRCUITS, VOL. 37, NO. 7, JULY (2002)

DOI: 10.1109/jssc.2002.1015676

Google Scholar
