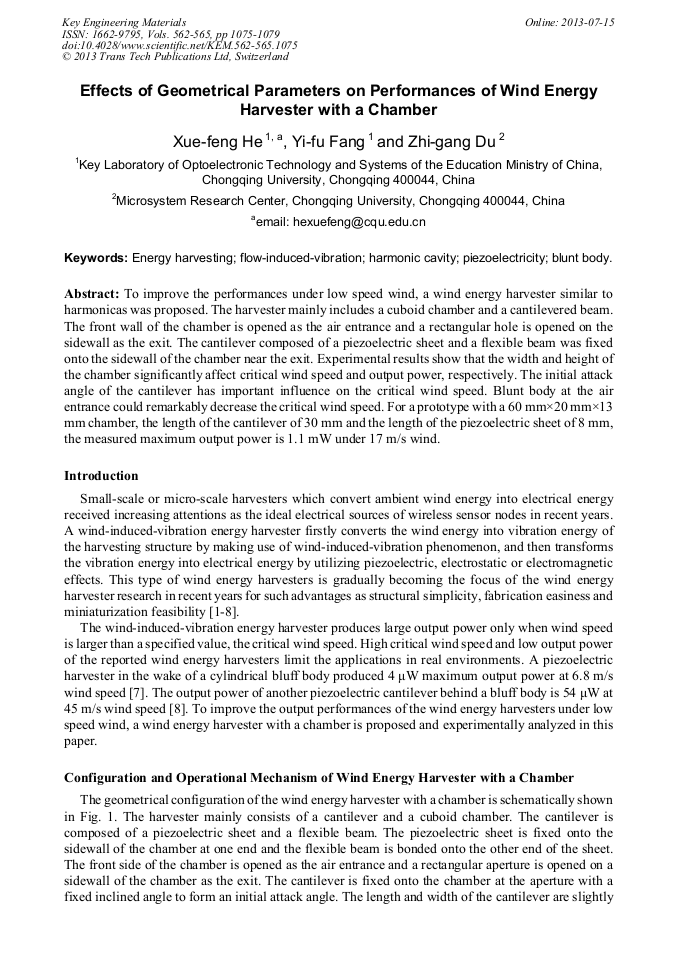

Effects of Geometrical Parameters on Performances of Wind Energy Harvester with a Chamber

Abstract:

To improve the performances under low speed wind, a wind energy harvester similar to harmonicas was proposed. The harvester mainly includes a cuboid chamber and a cantilevered beam. The front wall of the chamber is opened as the air entrance and a rectangular hole is opened on the sidewall as the exit. The cantilever composed of a piezoelectric sheet and a flexible beam was fixed onto the sidewall of the chamber near the exit. Experimental results show that the width and height of the chamber significantly affect critical wind speed and output power, respectively. The initial attack angle of the cantilever has important influence on the critical wind speed. Blunt body at the air entrance could remarkably decrease the critical wind speed. For a prototype with a 60 mm×20 mm×13 mm chamber, the length of the cantilever of 30 mm and the length of the piezoelectric sheet of 8 mm, the measured maximum output power is 1.1 mW under 17 m/s wind.

• Periodical: Key Engineering Materials (Volumes 562-565)
• Pages: 1075-1079
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.562-565.1075
• Online since: July 2013
• Authors: Xue Feng He, Yi Fu Fang, Zhi Gang Du
• Keywords: Blunt Body, Energy Harvesting, Flow-Induced-Vibration, Harmonic Cavity, Piezoelectricity

References

[1] S. H. Kim, C. H. Ji and P. Galle, An Electromagnetic Energy Scavenger from Direct Airflow, J. Micromech. Microeng. 19 (2009) 094010.

DOI: 10.1088/0960-1317/19/9/094010

[2] C. H. K. Williamson and R. Govardhan, A Breif Review of Recent Results in Vortex-Induced Vibrations, J. Wind Eng. Ind. Aerod. 96 (2008) 713-735.

DOI: 10.1016/j.jweia.2007.06.019

[3] S. G. Li, J. P. Yuan and H. Lipson, Ambient Wind Energy Harvesting using Cross-Flow Fluttering, J. Appl. Phys. 109 (2011) 026104.

DOI: 10.1063/1.3525045

[4] D. A. Wang and H. H. Ko, Piezoelectric Energy Harvesting from Flow-Induced Vibration, J. Micromech. Microeng. 20 (2010) 025019.

DOI: 10.1088/0960-1317/20/2/025019

[5] H. Hu, L. Clemons and H. Igarashi, An Experimental Study of the Unsteady Vortex Structures in the Wake of a Root-fixed Flapping Wing, Exp. Fluids 51 (2011) 347-359.

DOI: 10.1007/s00348-011-1052-z

[6] D. S. Clair, A. Bibo, V. R. Sennakesavababu, M. F. Daqaq and G. Li, A Scalable Concept for Micropower Generation using Flow-induced Self-excited Oscillations, Appl. Phys. Lett. 96 (2010) 144103.

DOI: 10.1063/1.3385780

[7] H. D. Akaydin, N. Elvin and Y. Andreopoulos, Wake of a cylinder: a paradigm for energy harvesting with piezoelectric materials, Exp. Fluids 49 (2010) 291-304.

DOI: 10.1007/s00348-010-0871-7

[8] S. Pobering, S. Ebermeyer and N. Schwesinger. Generation of electrical energy using short piezoelectric cantilevers inflowing media, Proc. SPIE 7288 (2009) 728807.

DOI: 10.1117/12.815189
