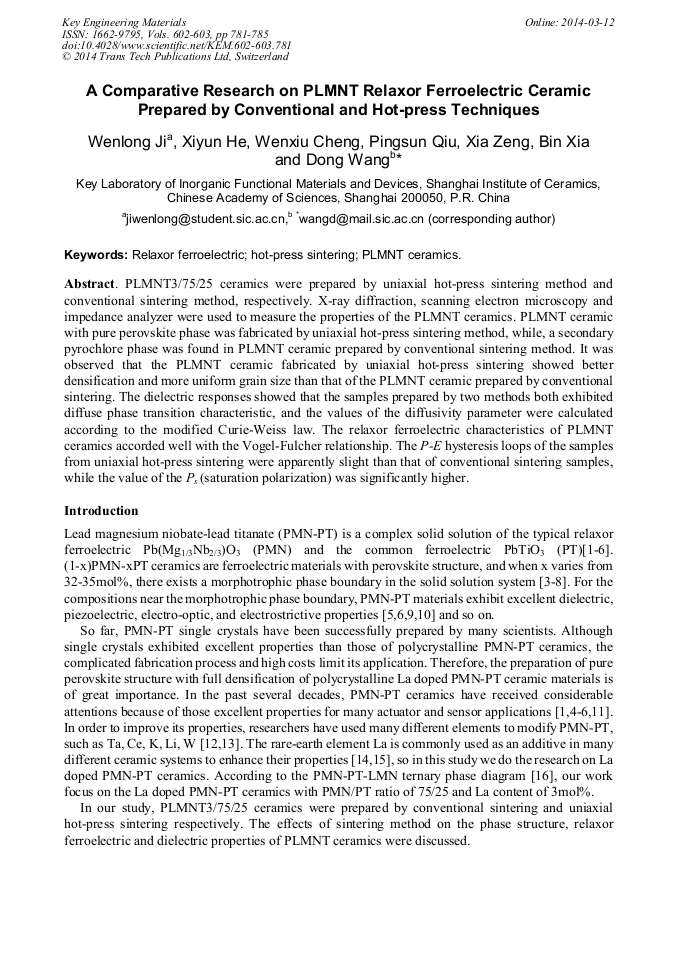

A Comparative Research on PLMNT Relaxor Ferroelectric Ceramic Prepared by Conventional and Hot-Press Techniques

Abstract:

PLMNT3/75/25 ceramics were prepared by uniaxial hot-press sintering method and conventional sintering method, respectively. X-ray diffraction (XRD), scanning electron microscopy (SEM) and impedance analyzer were used to measure the properties of the PLMNT ceramics. PLMNT ceramic with pure perovskite phase was fabricated by uniaxial hot-press sintering method, while, a secondary pyrochlore phase was found in PLMNT ceramic prepared by conventional sintering method. It was observed that the PLMNT ceramic fabricated by uniaxial hot-press sintering showed better densification and more uniform grain size than that of the PLMNT ceramic prepared by conventional sintering. The dielectric responses showed that the samples prepared by two methods both exhibited diffuse phase transition characteristic, and the values of the diffusivity parameter were calculated according to the linear fitting of the modified Curie-Weiss law. The relaxor ferroelectric characteristics of PLMNT ceramics accorded well with the Vogel-Fulcher relationship. The P-E hysteresis loops of the samples from uniaxial hot-press sintering were apparently slight than that of conventional sintering samples, while the value of the P_s (saturation polarization) was significantly higher.

• Periodical: Key Engineering Materials (Volumes 602-603)
• Pages: 781-785
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.602-603.781
• Online since: March 2014
• Authors: Wen Long Ji, Xi Yun He, Wen Xiu Cheng, Ping Sun Qiu, Xia Zeng, Bin Xia, Dong Wang*
• Keywords: PLMNT Ceramics, Relaxor Ferroelectric, Uniaxial Hot-Press Sintering

References

[1] Y.C. Zhang, W.N. Ye, Z.Z. Yang, C.J. Lu, L.H. Xia, Effect of excess Pb on formation of perovskite-type 0. 67Pb(Mg1/3Nb2/3)O3-0. 33PbTiO3 powders synthesized through a sol–gel process, Journal of Materials Science: Materials in Electronics. 22(1) (2010).

DOI: 10.1007/s10854-010-0090-2

[2] H. Jiang, Y.K. Zou, Q. Chen, K.K. Li, R. zhang, Y. Wang, Transparent Electro-Optic Ceramics and Devices, Proceedings of SPIE. 5644 (2005) 380.

[3] M.L. Calzada, M. Algueró, J. Ricote, A. Santos, L. Pardo, Preliminary results on sol-gel processing of <100> oriented Pb(Mg1/3Nb2/3)O3-PbTiO3 thin films using diol-based solutions, Journal of Sol-Gel Science and Technology. 42(3) (2006) 331-336.

DOI: 10.1007/s10971-006-0203-9

[4] K.H. Lam, H.L.W. Chan, C.L. Choy, H.S. Luo, Q.R. Yin Z.W. Yin, Properties of PMN–PT fibres fabricated using powder of PMN–PT single crystals, Ceramics International. 30(7) (2004) 1939-(1943).

DOI: 10.1016/j.ceramint.2003.12.189

[5] L.X. Cao, X. Yao, X. Zhou, Y.J. Feng, Research on dielectric and piezoelectric properties of Ta-doped 0. 68Pb(Mg1/3Nb2/3)O3–0. 32PbTiO3 ceramics, Ceramics International. 30(7) (2004) 1373-1376.

DOI: 10.1016/j.ceramint.2003.12.103

[6] M. Ghasemifard, S.M. Hosseini, Gh.H. Khorrami, Synthesis and structure of PMN–PT ceramic nanopowder free from pyrochlore phase, Ceramics International. 35(7) (2009) 2899-2905.

DOI: 10.1016/j.ceramint.2009.03.036

[7] S.M. Gupta, D. Viehland, Comositional studies of Lanthanum-modified morphotropic phase boundary Pb(Mg1/3Nb2/3)O3-PbTiO3 ceramics, J. Am. Ceram. Soc. 80(2) (1997) 477-485.

DOI: 10.1111/j.1151-2916.1997.tb02854.x

[8] E.M. Jayasingh, K. Prabhakaran, R. Sooraj, C. Durgaprasad, S.C. Sharma, Synthesis of pyrochlore free PMN-PT powder by partial oxalate process route, Ceramics International. 35(2) (2009) 591-596.

DOI: 10.1016/j.ceramint.2008.01.022

[9] .

[9] P. Papet, J.P. Doughterty, T.R. Shrout, Particle and grain size effects on the dielectric behavior of the relaxor ferroelectric Pb(Mg1/3Nb2/3)O3, J. Mater. Res. 5 (1990) 2902-2909.

DOI: 10.1557/jmr.1990.2902

[10] L. Wu, Y.C. Liou, The effect of heating rate on the properties of PMN relaxor ceramics, Ceramics International. 21 (1995) 335-338.

DOI: 10.1016/0272-8842(95)96205-4

[11] L.B. Kong, J. Ma, W. Zhu, O.K. Tan, Translucent PMN and PMN-PT ceramics from high-energy ball milling derived powders, Materials Reaearch Bulletin. 37 (2002) 23-32.

DOI: 10.1016/s0025-5408(01)00792-9

[12] B.J. Fang, C.L. Ding, J. Wu, Q.B. Du, J.N. Ding, Effects of dopants on the synthesis of Pb(Mg1/3Nb2/3)O3-PbTiO3 ceramics by the reaction-sintering method, Phys. Status Solidi A. 208(7) (2011) 1641-1645.

DOI: 10.1002/pssa.201127041

[13] B. Sahoo, P.K. Panda, Effect of CeO2 on dielectric, ferroelectric and piezoelectric properties of PMN–PT (67/33) compositions, J. Mater. Sci. 42(13) (2007) 4745-4752.

DOI: 10.1007/s10853-006-0828-7

[14] H.J. Wang, H.X. Lin, W. Li, J.L. Shi, Effect of La doping on microwave dielectric properties of translucent polycrystalline alumina ceramic, Ceramics International. 39(5) (2013) 4907-4911.

DOI: 10.1016/j.ceramint.2012.11.084

[15] S.M. Gupta, D. Viehland, Role of charge compensation mechanism in La-modified Pb(Mg1/3Nb2/3)O3–PbTiO3 ceramics: Enhanced ordering and pyrochlore formation, Journal of Applied Physics. 80(10) (1996) 5875-5883.

DOI: 10.1063/1.363581

[16] T.B. Wu, M.J. Shyu, C.C. Chung, H.Y. Lee, Phase transition and ferroelectric characteristics of Pb[(Mg1/3Nb2/3)1-xTix]O3 ceramics modified with La(Mg2/3Nb1/3)O3, J. Am. Ceram. Soc. 78(8) (1995) 2168-2174.

DOI: 10.1111/j.1151-2916.1995.tb08631.x
