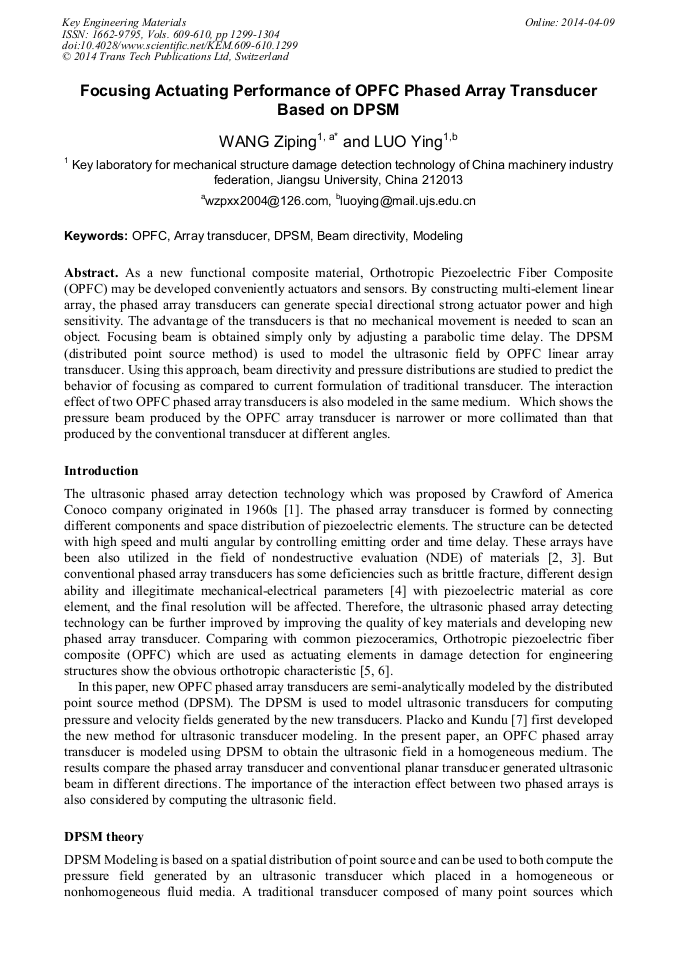

Focusing Actuating Performance of OPFC Phased Array Transducer Based on DPSM

Abstract:

As a new functional composite material, Orthotropic Piezoelectric Fiber Composite (OPFC) may be developed conveniently actuators and sensors. By constructing multi-element linear array, the phased array transducers can generate special directional strong actuator power and high sensitivity. The advantage of the transducers is that no mechanical movement is needed to scan an object. Focusing beam is obtained simply only by adjusting a parabolic time delay. The DPSM (distributed point source method) is used to model the ultrasonic field by OPFC linear array transducer. Using this approach, beam directivity and pressure distributions are studied to predict the behavior of focusing as compared to current formulation of traditional transducer. The interaction effect of two OPFC phased array transducers is also modeled in the same medium. Which shows the pressure beam produced by the OPFC array transducer is narrower or more collimated than that produced by the conventional transducer at different angles.
