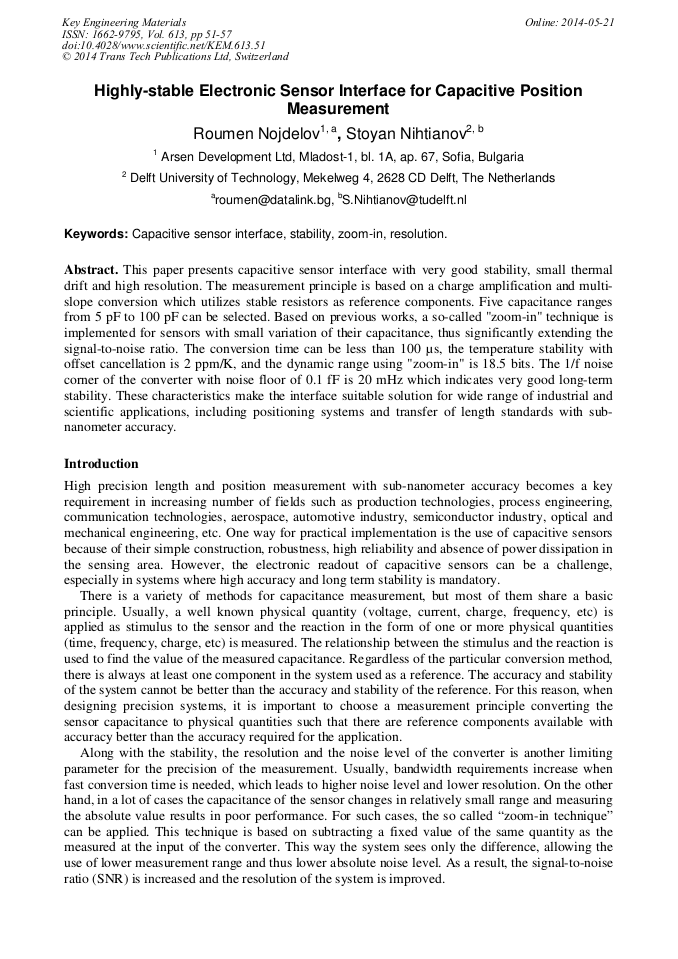

Highly-Stable Electronic Sensor Interface for Capacitive Position Measurement

Abstract:

This paper presents capacitive sensor interface with very good stability, small thermal drift and high resolution. The measurement principle is based on a charge amplification and multi-slope conversion which utilizes stable resistors as reference components. Five capacitance ranges from 5 pF to 100 pF can be selected. Based on previous works, a so-called "zoom-in" technique is implemented for sensors with small variation of their capacitance, thus significantly extending the signal-to-noise ratio. The conversion time can be less than 100 μs, the temperature stability with offset cancellation is 2 ppm/K, and the dynamic range using "zoom-in" is 18.5 bits. The 1/f noise corner of the converter with noise floor of 0.1 fF is 20 mHz which indicates very good long-term stability. These characteristics make the interface suitable solution for wide range of industrial and scientific applications, including positioning systems and transfer of length standards with sub-nanometer accuracy.

• Periodical: Key Engineering Materials (Volume 613)
• Pages: 51-57
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.613.51
• Online since: May 2014
• Authors: Roumen Nojdelov*, Stoyan Nihtianov
• Keywords: Capacitive Sensor Interface, Resolution, Stability, Zoom-In

References

[1] R. Nojdelov, S. Nihtianov, Capacitive sensor interface with high accuracy and stability, IEEE Transactions on Instrumentation and Measurement, vol. 58 (May 2009), pp.1633-1639.

DOI: 10.1109/tim.2009.2012957

[2] R. Nojdelov, S. Nihtianov, A fast charge meter for interfacing capacitive sensors, Africon 2007 (September, 2007), pp.1-6, 26-28.

DOI: 10.1109/afrcon.2007.4401488

[3] R. Nojdelov, R. Yang, X. Guo, S. Nihtianov, Highly Stable Capacitance-to-Digital Converter with Improved Dynamic Range, ICST 2011 (28 Nov. -1 Dec. 2011), pp.140-144.

DOI: 10.1109/icsenst.2011.6136950

[4] R. Yang, A. Fekri, S. Nihtianov, R. Nojdelov, Qualification of a Stable Capacitive Sensor Interface Based on Capacitance-Resistance Comparison, IEEE Sensors, 2011 IEEE (28-31 Oct. 2011), pp.1181-1184.

DOI: 10.1109/icsens.2011.6127417

[5] Kuenen, J.C., Meijer, G.C.M., Measurement of dielectric absorption of capacitors and analysis of its effects on VCOs, IEEE Transactions on Instrumentation and Measurement, vol. 45 (1996), No. 1, pp.89-97.

DOI: 10.1109/19.481317

[6] M. L. van der Goes, Gerard C. M. Meijer, A novel low-cost capacitive-sensor interface, IEEE Transactions on Instrumentation and Measurement, vol. 45 (1996), No. 2, pp.536-540.

DOI: 10.1109/19.492782
