Fluid Dynamic Analysis on Solar Heating Error of Radiosonde MEMS Humidity Measurement

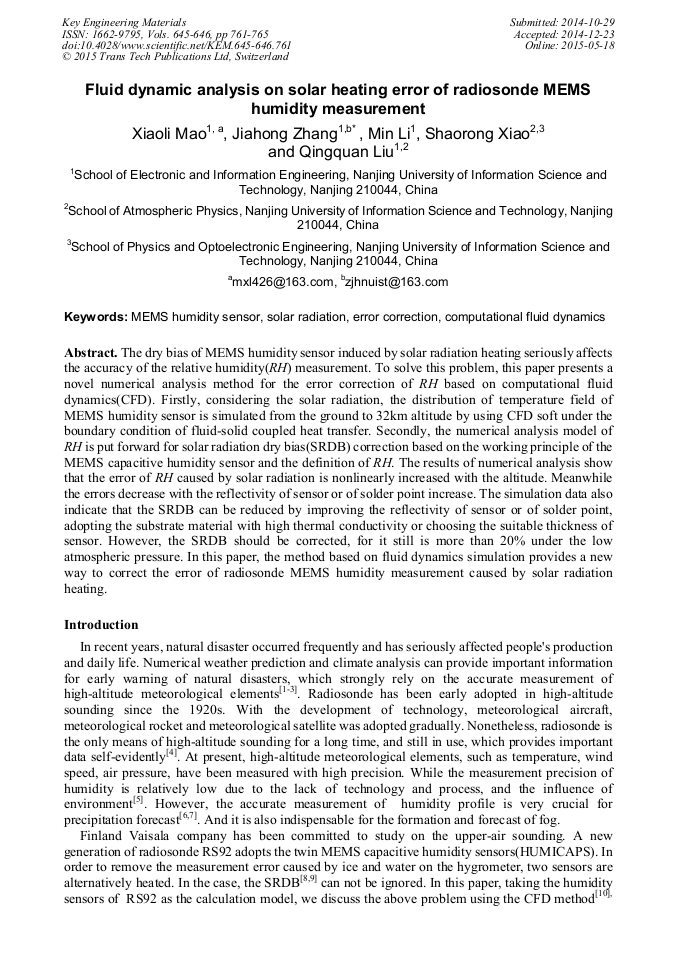

Abstract:

The dry bias of MEMS humidity sensor induced by solar radiation heating seriously affects the accuracy of the relative humidity (RH) measurement. To solve this problem, this paper presents a novel numerical analysis method for the error correction of RH based on computational fluid dynamics (CFD). Firstly, considering the solar radiation, the distribution of temperature field of MEMS humidity sensor is simulated from the ground to 32km altitude by using CFD soft under the boundary condition of fluid-solid coupled heat transfer. Secondly, the numerical analysis model of RH is put forward for solar radiation dry bias (SRDB) correction based on the working principle of the MEMS capacitive humidity sensor and the definition of RH. The results of numerical analysis show that the error of RH caused by solar radiation is nonlinearly increased with the altitude. Meanwhile the errors decrease with the reflectivity of sensor or of solder point increase. The simulation data also indicate that the SRDB can be reduced by improving the reflectivity of sensor or of solder point, adopting the substrate material with high thermal conductivity or choosing the suitable thickness of sensor. However, the SRDB should be corrected, for it still is more than 20% under the low atmospheric pressure. In this paper, the method based on fluid dynamics simulation provides a new way to correct the error of radiosonde MEMS humidity measurement caused by solar radiation heating.

• Periodical: Key Engineering Materials (Volumes 645-646)
• Pages: 761-765
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.645-646.761
• Online since: May 2015
• Authors: Xiao Li Mao, Jia Hong Zhang*, Min Li, Shao Rong Xiao, Qing Quan Liu
• Keywords: Computational Fluid Dynamics, Error Correction, MEMS Humidity Sensor, Solar Radiation

References

[1] G. A. Wick, P. J. Neiman, F. M. Ralph, T. M. Hamill, Evaluation of forecasts of the water vapor signature of atmospheric rivers in operational numerical weather prediction models, Wea. Forecasting, 28(2013)1337-1352.

DOI: 10.1175/waf-d-13-00025.1

[2] W. P. Elliott, R. J. Ross, Effects on climate records of changes in national weather service humidity processing procedures, J. Climate, 11(1998)2424-2436.

DOI: 10.1175/1520-0442(1998)011<2424:eocroc>2.0.co;2

[3] R. Posada, E. García-Ortega, J. L. Sánchez, L. López, Verification of the MM5 model using radiosonde data from Madrid-Barajas Airport, Atom. Res., 122(2013)174-182.

DOI: 10.1016/j.atmosres.2012.10.018

[4] Z. Z. Liu, M. Li, W. K. Zhong, M. S. Wong, An approach to evaluate the absolute accuracy of WVR water vapor measurements inferred from multiple water vapor techniques, J. Geodrn., 72(2013)86-94.

DOI: 10.1016/j.jog.2013.09.002

[5] L. M. Miloshevich, A. Paukkunen, H. Vömel, S. J. Oltmans, Development and validation of a time-lag correction for vaisala radiosonde humidity measurements, J. Atoms. Ocean. Tech., 21(2004)1305-1327.

DOI: 10.1175/1520-0426(2004)021<1305:davoat>2.0.co;2

[6] E. Campmany, J. Bech, J. Rodríguez-Marcos, Y. Sola, J. Lorente, A comparison of total precipitable water measurement from radiosonde and sunphotometers, Atom. Res., 97(2010)385-392.

DOI: 10.1016/j.atmosres.2010.04.016

[7] A. Koulali, D. Ouazar, O. Bock, A. Fadil, Study of seasonal-scale atmospheric water cycle with ground-based GPS receivers, radiosonde and NWP models over Morocco, Atom. Res., 104-105(2012)273-291.

DOI: 10.1016/j.atmosres.2011.11.002

[8] J. H. Wang, L. Y. Zhang, A. G. Dai, Radiation dry bias correction of vaisala RS92 humidity data and its impacts on historical radiosonde data, J. Atmos. Ocean. Tech., 30(2013)197-214.

DOI: 10.1175/jtech-d-12-00113.1

[9] H. Vömel, H. Selkirk, L. Miloshevich, J. Valverde-Canossa, J. Valdés, E. Kyrö, R. Kivi, W. Stolz, G. Peng, J. A. Diaz, Radiation dry bias of the vaisala RS92 humidity sensor, J. Atmos. Ocean. Tech., 24(2007)953-963.

DOI: 10.1175/jtech2019.1

[10] X. L. Mao, S. R. Xiao, Q. Q. Liu, M. Li, J. H. Zhang. Fluid dynamic analysis on solar heating error of radiosonde humidity measurement, Acta phys. sin., 14(2014)144701.

[11] F. Guichard, D. Parsons, E. Miller, Thermodynamic and radiative impact of the correction of sounding humidity bias in tropics, J. Climate, 13(2000)3611-3624.

DOI: 10.1175/1520-0442(2000)013<3611:tariot>2.0.co;2
