Experimental Investigations on New Characterization Method for Giant Piezoresistance Effect and Silicon Nanowire Piezoresistive Detection

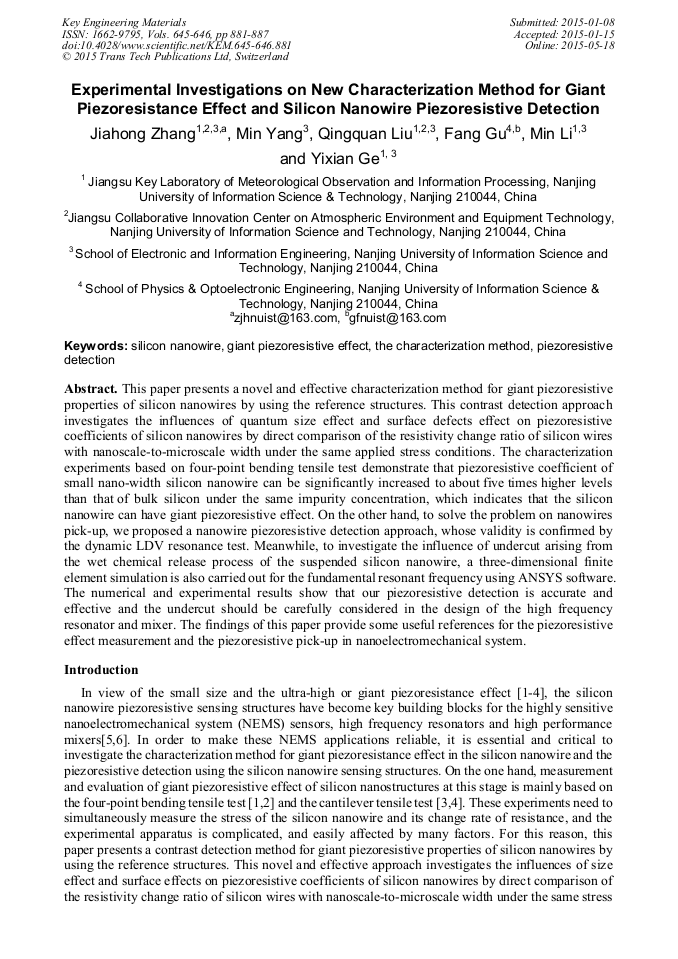

Article Preview

Abstract:

This paper presents a novel and effective characterization method for giant piezoresistive properties of silicon nanowires by using the reference structures. This contrast detection approach investigates the influences of quantum size effect and surface defects effect on piezoresistive coefficients of silicon nanowires by direct comparison of the resistivity change ratio of silicon wires with nanoscale-to-microscale width under the same applied stress conditions. The characterization experiments based on four-point bending tensile test demonstrate that piezoresistive coefficient of small nanowidth silicon nanowire can be significantly increased to about five times higher levels than that of bulk silicon under the same impurity concentration, which indicates that the silicon nanowire can have giant piezoresistive effect. On the other hand, to solve the problem on nanowires pick-up, we proposed a nanowire piezoresistive detection approach, whose validity is confirmed by the dynamic LDV resonance test. Meanwhile, to investigate the influence of undercut arising from the wet chemical release process of the suspended silicon nanowire, a three-dimensional finite element simulation is also carried out for the fundamental resonant frequency using ANSYS software. The numerical and experimental results show that our piezoresistive detection is accurate and effective and the undercut should be carefully considered in the design of the high frequency resonator and mixer. The findings of this paper provide some useful references for the piezoresistive effect measurement and the piezoresistive pick-up in nanoelectromechanical system.

You might also be interested in these eBooks

Info:

Periodical:

Key Engineering Materials (Volumes 645-646)

Pages:

881-887

Citation:

Online since:

May 2015

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] R.R. He, P.D. Yang, Giant piezoresistance effect in silicon nanowires, Nature, 1(2006)42-46.

Google Scholar

[2] K. Reck, J. Richter, O. Hansen, E.V. Thomsen, Piezoresistive effect in top-down fabricated silicon nanowires, Proc. MEMS 2008, (2008)717-720.

DOI: 10.1109/memsys.2008.4443757

Google Scholar

[3] A. Lugstein, M. Steinmair, A. Steiger, H. Kosina, E. Bertagnolli, Anamalous piezoresistive effect in ultrastrained silicon nanowires, Nano Lett. 10(2010)3204-3208.

DOI: 10.1021/nl102179c

Google Scholar

[4] Y. l. Yang, X.X. Li, Giant piezoresistance of p-type nano-thick silicon induced by interface electron trapping instead of 2D quantum confinement, Nanotechnology, 22(2011)015501.

DOI: 10.1088/0957-4484/22/1/015501

Google Scholar

[5] B.W. Soon, P. Neuzil, C.C. Wong, J. Reboud, H.H. Feng, C.K. Lee, Ultrasensitive nanowire pressure sensor makes its debut, Procedia Engineering, 5(2010)1127-1130.

DOI: 10.1016/j.proeng.2010.09.309

Google Scholar

[6] E. Mile, G. Jourdan, I. Bargatin, S. Labarthe, C. Marcoux, P. Andreucci, S. Hentz, C. Kharrat, E. Colinet, L. Duraffourg, In-plane nanoelectromechanical resonators based on silicon nanowire piezoresistive detection, Nanotechnology, 21(2010)165504.

DOI: 10.1088/0957-4484/21/16/165504

Google Scholar

[7] J.H. Zhang, X.L. Mao, Q.Q. Liu, F. Gu, M. Li, H. Liu, Y.X. Ge, Mechanical properties of silicon nanobeams with an undercut evaluated by combining thedynamic resonance test and finite element analysis, Chin. Phys. B, 21 (2012)086101.

DOI: 10.1088/1674-1056/21/8/086101

Google Scholar

[8] J.H. Zhang, Q.Q. Liu, Y.X. Ge, F. Gu, M. Li, X.L. Mao, H. X Cao, Extraction of interface state density and resistivity of suspended p-type silicon nanobridges, Journal of Semiconductors, 34(2013) 052002.

DOI: 10.1088/1674-4926/34/5/052002

Google Scholar

[9] T. Namazu, Y. Isono, T. Tanaka, Evaluation of size effect on mechanical properties of single crystal silicona by nanoscale bending test using AFM, J. Microelectromech. Syst., 9(2000)450-459.

DOI: 10.1109/84.896765

Google Scholar

[10] K.R. Virwani, A.P. Malshe, W.F. Schmidt, D.K. Sood, Young's modulus measurements of silicon nanostructures using a scanning probe system: a non-destructive evaluation approach, Smart. Mater. Struct., 12(2003)1028-1032.

DOI: 10.1088/0964-1726/12/6/023

Google Scholar

[11] J. Richter, J. Pedersen, M. Brandbyge, O. Hansen, E.V. Thomsen, Piezoresistance in p-type silicon revisited, Journal of Applied Physics, 104(2008)023715.

DOI: 10.1063/1.2960335

Google Scholar

[12] S. Guillon, D. Saya, L. Mazenq, S. Perisanu, P. Vincent, A. Lazarus, O. Thomas, L. Nicu, Effect of non-ideal clamping shape on the resonance frequencies of silicon nanocantilevers, Nanotechnology, 22(2011)245501.

DOI: 10.1088/0957-4484/22/24/245501

Google Scholar
