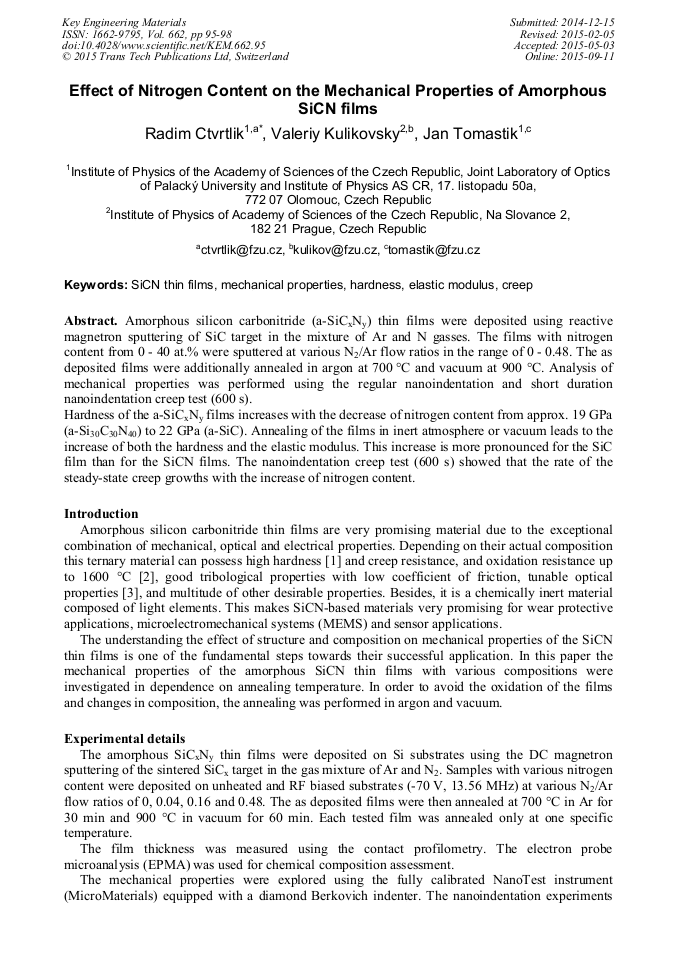

Effect of Nitrogen Content on the Mechanical Properties of Amorphous SiCN Films

Abstract:

Amorphous silicon carbonitride (a-SiC_xN_y) thin films were deposited using reactive magnetron sputtering of SiC target in the mixture of Ar and N gasses. The films with nitrogen content from 0 - 40 at.% were sputtered at various N₂/Ar flow ratios in the range of 0 - 0.48. The as deposited films were additionally annealed in argon at 700 °C and vacuum at 900 °C. Analysis of mechanical properties was performed using the regular nanoindentation and short duration nanoindentation creep test (600 s).Hardness of the a-SiC_xN_y films increases with the decrease of nitrogen content from approx. 19 GPa (a-Si₃₀C₃₀N₄₀) to 22 GPa (a-SiC). Annealing of the films in inert atmosphere or vacuum leads to the increase of both the hardness and the elastic modulus. This increase is more pronounced for the SiC film than for the SiCN films. The nanoindentation creep test (600 s) showed that the rate of the steady-state creep growths with the increase of nitrogen content.

• Periodical: Key Engineering Materials (Volume 662)
• Pages: 95-98
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.662.95
• Online since: September 2015
• Authors: Radim Čtvrtlík, Valeriy Kulikovsky, Jan Tomaštík
• Keywords: Creep, Elastic Modulus, Hardness, Mechanical Properties, SiCN Thin Films

References

[1] A. Badzian, T. Badzian, W.D. Drawl, R. Roy, Silicon carbonitride: A rival to cubic boron nitride, Diam. Relat. Mater. 7 (1998) 1519-1525.

DOI: 10.1016/s0925-9635(98)00228-3

[2] R. Riedel, H.J. Kleebe, H. Schonfelder, F. Aldinger, A Covalent Micro Nanocomposite Resistant to High-Temperature Oxidation, Nature 374 (1995) 526-528.

DOI: 10.1038/374526a0

[3] E. Tomasella, L. Spinelle, A. Bousquet, F. Rebib, M. Dubois, C. Eypert, et al., Structural and optical investigations of silicon carbon nitride thin films deposited by magnetron sputtering, Plasma Process Polym. 6 (2009) S11-S16.

DOI: 10.1002/ppap.200930103

[4] W.C. Oliver, G.M. Pharr, An improved technique for determining hardness and elastic modulus using load and displacement sensing indentation experiments, J. Mater. Res. 7 (1992) 1564-1583.

DOI: 10.1557/jmr.1992.1564

[5] V. Kulikovsky, V. Vorlíček, P. Boháč, M. Stranyánek, R. Čtvrtlík, A. Kurdyumov, et al., Hardness and elastic modulus of amorphous and nanocrystalline SiC and Si films, Surf. Coat. Technol. 202 (2008) 1738-1745.

DOI: 10.1016/j.surfcoat.2007.07.029

[6] V. Kulikovsky, R. Ctvrtlik, V. Vorlicek, V. Zelezny, P. Bohac, L. Jastrabik, Effect of air annealing on mechanical properties and structure of SiCxNy magnetron sputtered films, Surf. Coat. Technol. 240 (2014) 76-85.

DOI: 10.1016/j.surfcoat.2013.12.017

[7] Y.T. Cheng, C.M. Cheng, Scaling, dimensional analysis, and indentation measurements, Mat. Sci. Eng. R 44 (2004) 91-150.

[8] A. Leyland, A. Matthews, On the significance of the H/E ratio in wear control: a nanocomposite coating approach to optimised tribological behaviour, Wear 246 (2000) 1-11.

DOI: 10.1016/s0043-1648(00)00488-9

[9] J. Chen, S.J. Bull, Indentation fracture and toughness assessment for thin optical coatings on glass, J. Phys. D Appl. Phys. 40 (2007) 5401-5417.

DOI: 10.1088/0022-3727/40/18/s01

[10] D. Galvan, Y.T. Pei, J.T.M. De Hosson, Deformation and failure mechanism of nano-composite coatings under nano-indentation, Surf. Coat. Technol. 200 (2006) 6718-6726.

DOI: 10.1016/j.surfcoat.2005.10.010

[11] S. Zhang, H.L. Wang, S.E. Ong, D. Sun, X.L. Bui, Hard yet tough nanocomposite coatings - Present status and future trends, Plasma Process Polym. 4 (2007) 219-228.

DOI: 10.1002/ppap.200600179

[12] B.D. Beake, G.S. Fox-Rabinovich, S.C. Veldhuis, S.R. Goodes, Coating optimisation for high speed machining with advanced nanomechanical test methods, Surf. Coat. Technol. 203 (2009) 1919-(1925).

DOI: 10.1016/j.surfcoat.2009.01.025

[13] R. Ctvrtlik, M. Al-Haik, V. Kulikovsky, Mechanical properties of amorphous silicon carbonitride thin films at elevated temperatures, J. Mater. Sci. (2014) 1-12.

DOI: 10.1007/s10853-014-8715-0
