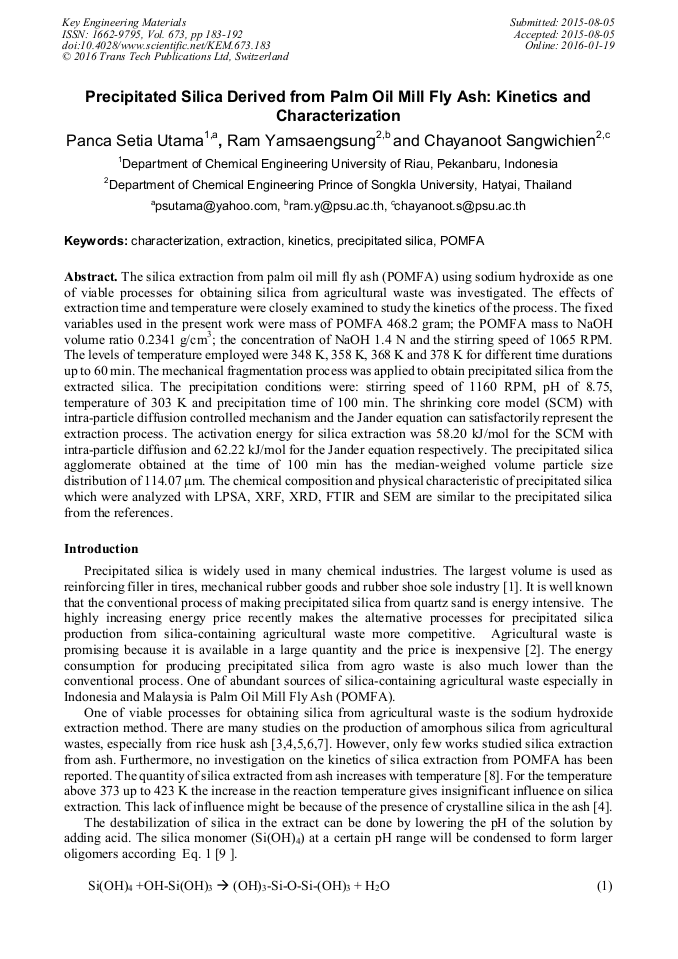

Precipitated Silica Derived from Palm Oil Mill Fly Ash: Kinetics and Characterization

Abstract:

The silica extraction from palm oil mill fly ash (POMFA) using sodium hydroxide as one of viable processes for obtaining silica from agricultural waste was investigated. The effects of extraction time and temperature were closely examined to study the kinetics of the process. The fixed variables used in the present work were mass of POMFA 468.2 gram; the POMFA mass to NaOH volume ratio 0.2341 g/cm³; the concentration of NaOH 1.4 N and the stirring speed of 1065 RPM. The levels of temperature employed were 348 K, 358 K, 368 K and 378 K for different time durations up to 60 min. The mechanical fragmentation process was applied to obtain precipitated silica from the extracted silica. The precipitation conditions were: stirring speed of 1160 RPM, pH of 8.75, temperature of 303 K and precipitation time of 100 min. The shrinking core model (SCM) with intra-particle diffusion controlled mechanism and the Jander equation can satisfactorily represent the extraction process. The activation energy for silica extraction was 58.20 kJ/mol for the SCM with intra-particle diffusion and 62.22 kJ/mol for the Jander equation respectively. The precipitated silica agglomerate obtained at the time of 100 min has the median-weighed volume particle size distribution of 114.07 μm. The chemical composition and physical characteristic of precipitated silica which were analyzed with LPSA, XRF, XRD, FTIR and SEM are similar to the precipitated silica from the references.

• Periodical: Key Engineering Materials (Volume 673)
• Pages: 183-192
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.673.183
• Online since: January 2016
• Authors: Panca Setia Utama*, Ram Yamsaengsung, C. Sangwichien
• Keywords: Characterization, Extraction, Kinetics, POMFA, Precipitated Silica

References

[1] B.G. Sampat, Specialty Silica 2: A Techno-Commercial Profile, Chemical Weekly (2008).

[2] D.J. Benke, M.S. Wainwright, K.D.P. Nigam and T.R. Rao: The Canadian Journal of Chemical Engineering, Vol. 84 (2006), pp.688-692.

[3] S.P.B. de Lima, R.V.P.O. Paiva, G.C. Cordeiro, M.R.M. Chaves and R.D.T.F.E.M. Fairbairn: Quimica Nova, Vol. 34, No. 1 (2011), pp.71-75.

[4] A.M. de Sousa, L. Visconte, C. Mansur, and C. Furtado: Journal of Chemical Technology, Vol. 3, No. 4 (2009), pp.321-326.

[5] V.R. Shelke, S.S. Bhagade and S.A. Mandavgane: Bulletin of Chemical Reaction Engineering & Catalysis, Vol. 5, No. 2 (2010), pp.63-67.

[6] U. Kalapathy, A. Proctor and J. Shultz: Bioresource Technology, Vol. 73(2000), pp.257-262.

[7] S.R. Kamath and A. Proctor: Cereal Chemical, Vol. 75, No. 4 (1998), pp.484-487.

[8] P.S. Utama, R. Yamsaengsung and C. Sangwichien: Submitted to ASEAN Eng. Journal (2015).

[9] S. Affandi, H. Setyawan, S. Winardi, A. Purwanto and R. Balgis: Advanced Powder Technology, Vol. 20 (2009), p.468–472.

DOI: 10.1016/j.apt.2009.03.008

[10] J. Schlomach and M. Kind : Journal of Colloid and Interface Science, Vol. 277 (2004), p.316 – 326.

[11] A. Khawam and D.R. Flanagan : Journal of Physical Chemistry B, Vol. 110, No. 35, pp.17315-17328, (2006).

[12] O. Levenspiel: Chemical reaction engineering, (Willey Eastern Limited, New Delhi, 1988).

[13] K. Quarch, E. Durand, C. Schilde, A. Kwade and M. Klind: Chemical Engineering Research and Design, Vol. 88 (2010), pp.1639-1647.

DOI: 10.1016/j.cherd.2010.01.007

[14] H. Cheng, R. Tamaki, R.M. Lane, F. Babonneau, Y. Chujo and D.R. Treadwell: Journal of American Chemical Society, Vol. 122 (2000), pp.10063-10072.

DOI: 10.1021/ja001885h

[15] X. Cai, R.Y. Hong, L.S. Wang, X.Y. Wang, H.Z. Li, and D.G. Wei: Chemical Engineering Journal, Vol. 151 (2009), pp.380-386.

[16] S. Music, N. Filipovic-Vincekovic and L. Sekovanic: Brazilian Journal of Chemical Enginering, Vol. 28, No. 1 (2011), pp.89-94.

[17] J.R. Martinez, S. Palomares, G. Ortega-Zarzosa, F. Ruiz and Y Chumakov : Material Letters, Vol. 60 (2006) , pp.3526-3529.

DOI: 10.1016/j.matlet.2006.03.044

[18] H. Ferch: Chem Ing-Tech, Vol 48 (1976), pp.922-933.

[19] Roempp: Roempp Lexikon, Lacke und Druckfarben (ThiemeVerlag, Stuttgart, Germany, 2001).
