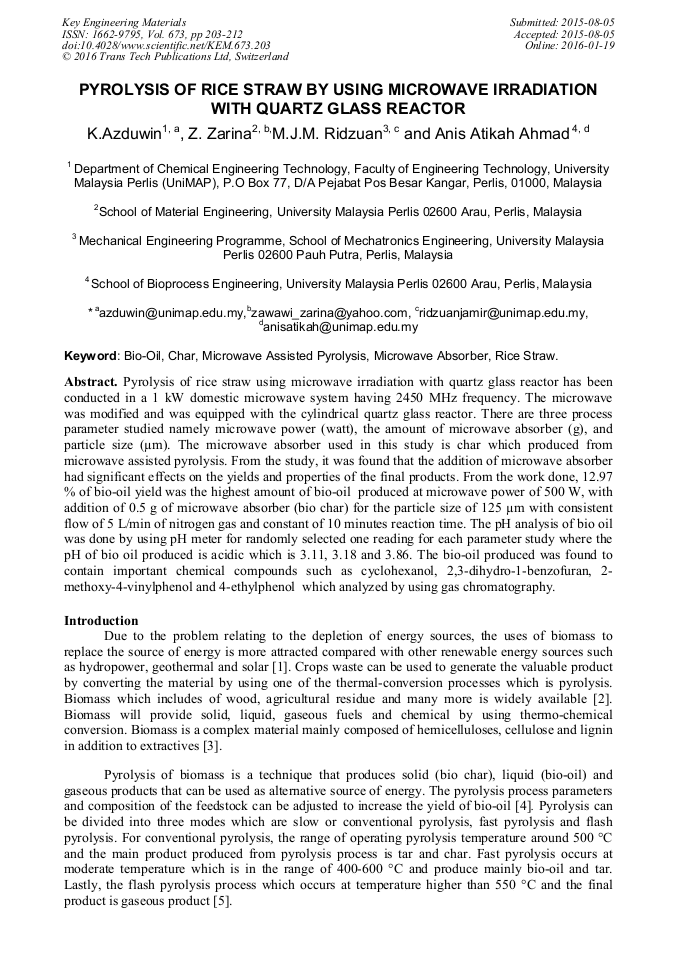

Pyrolysis of Rice Straw by Using Microwave Irradiation with Quartz Glass Reactor

Abstract:

Pyrolysis of rice straw using microwave irradiation with quartz glass reactor has been conducted in a 1 kW domestic microwave system having 2450 MHz frequency. The microwave was modified and was equipped with the cylindrical quartz glass reactor. There are three process parameter studied namely microwave power (watt), the amount of microwave absorber (g), and particle size (μm). The microwave absorber used in this study is char which produced from microwave assisted pyrolysis. From the study, it was found that the addition of microwave absorber had significant effects on the yields and properties of the final products. From the work done, 12.97 % of bio-oil yield was the highest amount of bio-oil produced at microwave power of 500 W, with addition of 0.5 g of microwave absorber (bio char) for the particle size of 125 μm with consistent flow of 5 L/min of nitrogen gas and constant of 10 minutes reaction time. The pH analysis of bio oil was done by using pH meter for randomly selected one reading for each parameter study where the pH of bio oil produced is acidic which is 3.11, 3.18 and 3.86. The bio-oil produced was found to contain important chemical compounds such as cyclohexanol, 2,3-dihydro-1-benzofuran, 2-methoxy-4-vinylphenol and 4-ethylphenol which analyzed by using gas chromatography.

• Periodical: Key Engineering Materials (Volume 673)
• Pages: 203-212
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.673.203
• Online since: January 2016
• Authors: K. Azduwin*, Z. Zarina, Mohd Jamir Mohd Ridzuan, Anis Atikah Ahmad
• Keywords: Bio-Oil, Char, Microwave Absorber, Microwave Assisted Pyrolysis, Rice Straw

References

[1] A. Al-Kassir, J. Ganan, C. M. Gonzales, J. F. Gonzales, V. A. Mangut, Ramoro, S. Roman and E. Sabio. Thermogravimetric study of the pyrolysis of biomass residue from tomato processing industry. Journal of Fuel Process Technology, 87 (2006).

DOI: 10.1016/j.fuproc.2005.08.006

[2] S. Li, S. Xu, S. Liu, , C. Yang, and Q. Lu. Fast pyrolysis of biomass in free-fall reactor for hydrogen-rich gas. Journal of Fuel Processing Technology, 85 (2004), pp.1201-1211.

DOI: 10.1016/j.fuproc.2003.11.043

[3] K. Slopiecka, P. Bartocci, and F. Fantozzi. Thermogravimetric analysis and kinetic study of poplar wood pyrolysis. Journal of Applied Energy, 97 (2012), pp.491-497.

DOI: 10.1016/j.apenergy.2011.12.056

[4] K. Azduwin, M. J. M. Ridzuan, S. M. Hafis, and Z. Zarina. Pyrolysis of Palm pressed fibre (PPF ) Towards Maximizing Bio-oil Yield in a Fixed-bed reactor. Applied Mechanics and Materials Vol. 695 (2015), pp.239-242.

DOI: 10.4028/www.scientific.net/amm.695.239

[5] K. Azduwin, M. J. M. Ridzuan, S. M. Hafis, and Z. Zarina. Pyrolysis of Empty fruit bunch ( EFB ) in a vertical fixed bed reactor, Applied Mechanics and Materials Vol. 695 (2015), pp.228-231.

DOI: 10.4028/www.scientific.net/amm.695.228

[6] Y. Wan, P. Chen, B. Zhang, C. Yang, Y. Liu, X. Lin, and R. Ruan. Microwave assisted pyrolysis of biomass: Catalyst to improve product selectivity. J. Anal. Appl. Pyrolysis. 86(2009), p.161–167.

DOI: 10.1016/j.jaap.2009.05.006

[7] J.A. Menendez, A. Arenillas, B. Fidalgo, Y. Fernandez, L. Zubizarreta, E.G. Calvo, and J.M. Bermudez. Microwave heating processes involving carbon materials. Fuel Process. Technol. 91 (1) (2010), p.1–8.

DOI: 10.1016/j.fuproc.2009.08.021

[8] J.A. Menendez, E.J. Juarez-Perez, E. Ruisanchez, J.M. Bermudez, and A. Arenillas, Ball lightning plasma and plasma arc formation during the microwave heating of carbons. Carbon 49 (2011), p.346–349.

DOI: 10.1016/j.carbon.2010.09.010

[9] M. Misson, R. Haron, M. Fadhzir, A. Kamaroddin, and N.A.S. Amin,. Pretreatment of empty palm fruit bunch for production of chemicals via catalytic pyrolysis. Bioresour. Technol. 100 (11) (2009), p.2867–2873.

DOI: 10.1016/j.biortech.2008.12.060

[10] R. Omar, A. Idris, R. Yunus, and K. Khalid. Microwave absorber addition in microwave pyrolysis of oil palm empty fruit bunch. In Proceedings of Third International Symposium on Energy from Biomass and Waste, Venice, Italy, 8–11 November (2010).

DOI: 10.1016/j.fuel.2011.01.023

[11] R. Razuan, Q. Chen, X. Zhang, V. Sharifi, and J. Swithenbank. Pyrolysis and combustion of oil palm stone and palm kernel cake in fixed-bed reactors. Bioresour. Technol. 101 (12)(2010). p.4622–4629.

DOI: 10.1016/j.biortech.2010.01.079

[12] J.H. Clark, F.E.I. Deswarte, and T.J. Farmer. The integration of green chemistry into future biorefineries. Biofuels Bioprod. Biorefining. 3( 2009), p.72–90.

DOI: 10.1002/bbb.119

[13] A. Dominguez, J. A. Menendez, Y. Fernandez, J.J. Pis, J.M. Velente Nabais, and P.J. M Carrot. Conventional and microwave induced pyrolysis of coffee hulls for the production of a hydrogen rich fuel gas. Journal of Analytical and Applied Pyrolysis, 79 (2007).

DOI: 10.1016/j.jaap.2006.08.003

[14] F.S.R. Blake and M. J. Ramsden. A kinetic study of the acetylation of cellulose, hemicelluloses and lignin components in wood. Journal of Wood Science and Technology, 31(1997) 45-50.

DOI: 10.1007/bf00705699

[15] Mohammad I. Jahirul, Mohammad G. Rasul, Ashfaque Ahmed Chowdhury and Nanjappa Ashwath. Biofuels Production through Biomass Pyrolysis—A Technological Review. Energies 5 (2012), pp.4952-5001.

DOI: 10.3390/en5124952

[16] W.S. Dai, L.H. Chen, and T.S. Lui. A study on SiO2 particle erosion of flake graphite and spheroidal graphite cast irons. Wear. 239(2000). pp.143-152.

DOI: 10.1016/s0043-1648(00)00318-5
