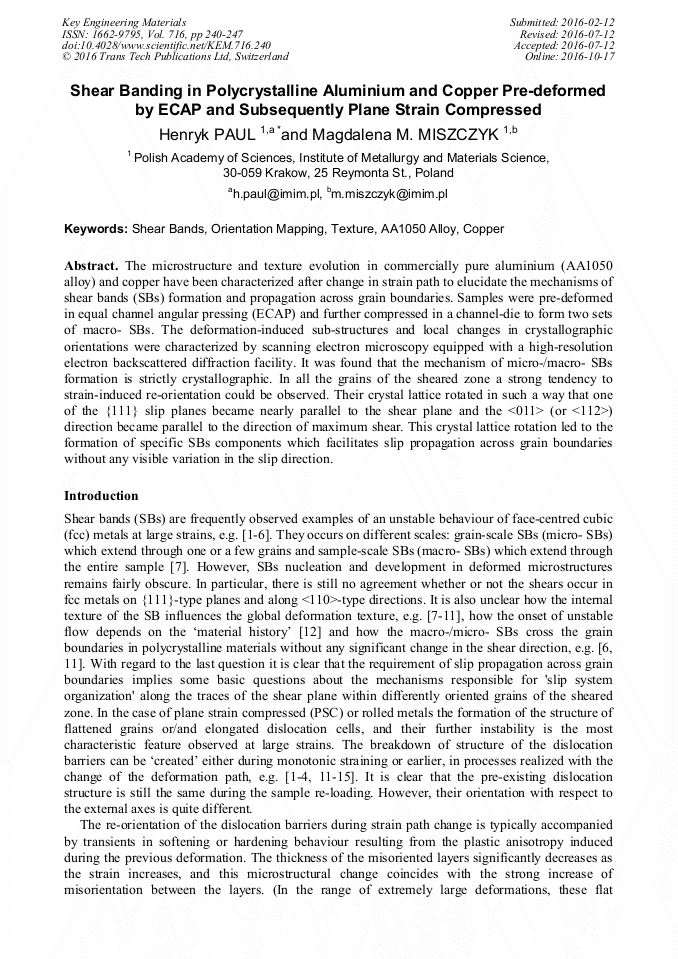

Shear Banding in Polycrystalline Aluminium and Copper Pre-Deformed by ECAP and Subsequently Plane Strain Compressed

Abstract:

The microstructure and texture evolution in commercially pure aluminium (AA1050 alloy) and copper have been characterized after change in strain path to elucidate the mechanisms of shear bands (SBs) formation and propagation across grain boundaries. Samples were pre-deformed in equal channel angular pressing (ECAP) and further compressed in a channel-die to form two sets of macro-SBs. The deformation-induced sub-structures and local changes in crystallographic orientations were characterized by scanning electron microscopy equipped with a high-resolution electron backscattered diffraction facility. It was found that the mechanism of micro-/macro-SBs formation is strictly crystallographic. In all the grains of the sheared zone a strong tendency to strain-induced re-orientation could be observed. Their crystal lattice rotated in such a way that one of the {111} slip planes became nearly parallel to the shear plane and the <011> (or <112>) direction became parallel to the direction of maximum shear. This crystal lattice rotation led to the formation of specific SBs components which facilitates slip propagation across grain boundaries without any visible variation in the slip direction.

• Periodical: Key Engineering Materials (Volume 716)
• Pages: 240-247
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.716.240
• Online since: October 2016
• Authors: Henryk Paul*, Magdalena M. Miszczyk
• Keywords: AA1050 Alloy, Copper, Orientation Mapping, Shear Bands, Texture

References

[1] J. Gill Sevillano, P. Van Houtte, E. Aernoudt, The contribution of macroscopic shear bands to the rolling texture of fcc metals, Scripta Metall. 11 (1977) 581-585.

DOI: 10.1016/0036-9748(77)90113-2

[2] M. Blicharski, S. Gorczyca, Structural inhomogeneity of deformed austenitic stainless steel, Metal Sci. 12 (1978) 303-312.

DOI: 10.1179/msc.1978.12.7.303

[3] M. Hatherly, A.S. Malin, Shear bands in deformed metals, Scripta Metall. 18 (1984) 449-454.

DOI: 10.1016/0036-9748(84)90419-8

[4] P. Wagner, O. Engler, K. Lücke, Formation of Cu-type shear bands and their influence on deformation and texture of rolling fcc {112}<111> single crystals, Acta Metall. Mater. 43, (1995) 3799-3812.

DOI: 10.1016/0956-7151(95)90164-7

[5] H. Paul, J.H. Driver, C. Maurice, Z. Jasieński, Shear band microtexture formation in twinned face centred cubic single crystals, Mater. Sci. Eng. A. 359 (2003) 178-191.

DOI: 10.1016/s0921-5093(03)00335-6

[6] H. Paul, A. Morawiec, J.H. Driver, E. Bouzy, On twinning and shear banding in a Cu-8 at. % Al alloy plane strain compressed at 77K, Int. J. Plasticity. 29 (2009) 1588-1608.

DOI: 10.1016/j.ijplas.2008.10.003

[7] E. El-Danaf, S.R. Kalidindi, R.D. Doherty, C. Necker, Deformation texture transition in brass: critical role of micro-scale shear bands, Acta Mater. 48 (2000) 2665-2673.

DOI: 10.1016/s1359-6454(00)00050-1

[8] S. Mahesh, Deformation banding and shear banding in single crystals, Acta Mater. 54 (2006) 4565-4574.

DOI: 10.1016/j.actamat.2006.05.043

[9] N. Jia, P. Eisenlohr, F. Roters, D. Raabe, X. Zhao, Orientation dependence of shear banding in face-centred-cubic single crystals, Acta Mater. 60 (2012) 3415-3434.

DOI: 10.1016/j.actamat.2012.03.005

[10] A. Duckham, R.D. Knutsen, O. Engler, Influence of deformation variables on the formation of copper-type shear bands in Al-1Mg, Acta Mater. 49 (2001) 2739-2749.

DOI: 10.1016/s1359-6454(01)00166-5

[11] H. Paul, J.H. Driver, A. Tarasek, W. Wajda, M.M. Miszczyk, Mechanism of macroscopic shear band formation in plane strain compressed fine-grained Al, Mater. Sci. Eng. A. 642 (2015) 167-180.

DOI: 10.1016/j.msea.2015.06.056

[12] H. Paul, C. Maurice, J.H. Driver, Microstructure and microtexture evolution during strain path changes of an initially stable Cu single crystal, Acta Mater. 58 (2010) 2799-2813.

DOI: 10.1016/j.actamat.2009.12.055

[13] M.Z. Quadir, M. Ferry, O. Al-Buhamad, P.R. Munroe, Shear banding and recrystallization texture development in multilayered Al alloy sheet produced by accumulative roll bonding, Acta Mater. 57 (2009) 29-40.

DOI: 10.1016/j.actamat.2008.08.056

[14] C.S. Hong, N.R. Tao, X. Huang, K. Lu, Nucleation and thickening of shear bands in nano-scale twin/matrix lamellae of a Cu-Al alloy processed by dynamic plastic deformation, Acta Mater. 58 (2010) 3103-3116.

DOI: 10.1016/j.actamat.2010.01.049

[15] E. El-Danaf, M.S. Soliman, A.A. Almajid, Effect of deformation path change on plastic response and texture evolution for 1050 Al pre-deformed by ECAP and subsequently plane strain compressed, Mater. Sci. Eng. A. 527 (2010) 2547-2558.

DOI: 10.1016/j.msea.2010.01.003
