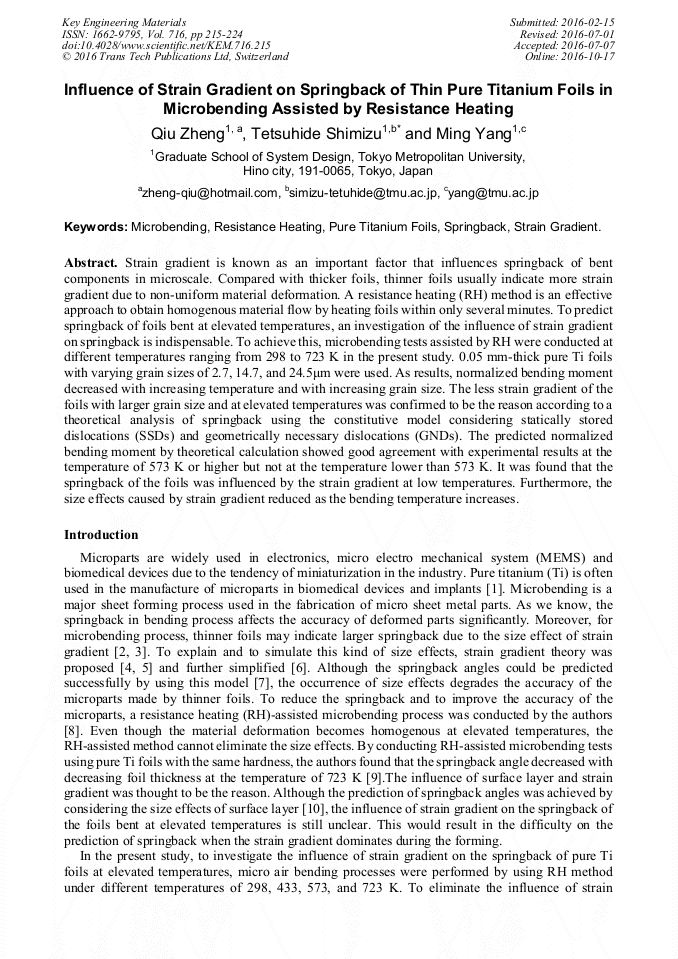

Influence of Strain Gradient on Springback of Thin Pure Titanium Foils in Microbending Assisted by Resistance Heating

Abstract:

Strain gradient is known as an important factor that influences springback of bent components in microscale. Compared with thicker foils, thinner foils usually indicate more strain gradient due to non-uniform material deformation. A resistance heating (RH) method is an effective approach to obtain homogenous material flow by heating foils within only several minutes. To predict springback of foils bent at elevated temperatures, an investigation of the influence of strain gradient on springback is indispensable. To achieve this, microbending tests assisted by RH were conducted at different temperatures ranging from 298 to 723 K in the present study. 0.05 mm-thick pure Ti foils with varying grain sizes of 2.7, 14.7, and 24.5 μm were used. As results, normalized bending moment decreased with increasing temperature and with increasing grain size. The less strain gradient of the foils with larger grain size and at elevated temperatures was confirmed to be the reason according to a theoretical analysis of springback using the constitutive model considering statically stored dislocations (SSDs) and geometrically necessary dislocations (GNDs). The predicted normalized bending moment by theoretical calculation showed good agreement with experimental results at the temperature of 573 K or higher but not at the temperature lower than 573 K. It was found that the springback of the foils was influenced by the strain gradient at low temperatures. Furthermore, the size effects caused by strain gradient reduced as the bending temperature increases.

• Periodical: Key Engineering Materials (Volume 716)
• Pages: 215-224
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.716.215
• Online since: October 2016
• Authors: Qiu Zheng, Tetsuhide Shimizu*, Ming Yang
• Keywords: Microbending, Pure Titanium Foils, Resistance Heating, Springback, Strain Gradient

References

[1] C. N. Elias, J. H. C. Lima, R. Valiev, M. A. Meyers. Biomedical applications of titanium and its alloys, JOM-J. Min. Met. Mat. S. 60 (2008) 46–49.

DOI: 10.1007/s11837-008-0031-1

[2] F. Vollertsen, D. Biermann, H.N. Hansen, I.S. Jawahir, K. Kuzman. Size effects in manufacturing of metallic components, CIRP Ann. -Manuf. Techn. 58 (2009) 566-587.

DOI: 10.1016/j.cirp.2009.09.002

[3] A. Diehl, U. Engel, M. Merklein, M. Geiger. Size effects in bending processes applied to metal foils, Prod. Engineer. 4 (2010) 47-56.

DOI: 10.1007/s11740-009-0196-7

[4] W. D. Nixand, H. Gao. Indentation size effects in crystalline materials: A law for strain gradient plasticity, J. Mech. Phys. Solids. 46 (1998) 411-425.

DOI: 10.1016/s0022-5096(97)00086-0

[5] N. A. Fleck, J. W. Hutchinson. A reformulation of strain gradient plasticity, J. Mech. Phys. Solids. 49 (2001) 2245-2271.

DOI: 10.1016/s0022-5096(01)00049-7

[6] Y. Huang, S. Qu, K. C. Hwang, M. Li, H. Gao. A conventional theory of mechanism-based strain gradient plasticity, Int. J. Plasticity. 20 (2004) 753-782.

DOI: 10.1016/j.ijplas.2003.08.002

[7] H. Li, X. Dong, Y. Shen, A. Diehl, H. Hagenah, U. Engel, M. Merklein. Size effect on springback behavior due to plastic strain gradient hardening in microbending process of pure aluminum foils, Mat. Sci. Eng. A-Struct. 527 (2010) 4497-4504.

DOI: 10.1016/j.msea.2010.03.105

[8] T. Aoyama, T. Shimizu, Q. Zheng, M. Yang. Effect of heating on springback in heat assisted microbending, Adv. Mater. Res. 939 (2014) 409-414.

DOI: 10.4028/www.scientific.net/amr.939.409

[9] Q. Zheng, T. Aoyama, T. Shimizu, and M. Yang. Experimental and numerical analysis of springback behavior under elevated temperatures in micro bending assisted by resistance heating, Procedia Eng. 81 (2014)1481-1486.

DOI: 10.1016/j.proeng.2014.10.177

[10] Q. Zheng, T. Shimizu, M. Yang. Scale effect on springback behavior of pure titanium foils in microbending at elevated temperature, J. Mater. Process. Tech. 230 (2016) 233-243.

DOI: 10.1016/j.jmatprotec.2015.11.025

[11] Q. Zheng, T. Shimizu, T. Shiratori, M. Yang. Tensile properties and constitutive model of ultrathin pure titanium foils at elevated temperatures in microforming assisted by resistance heating method, Mater. Design. 63 (2014) 389-397.

DOI: 10.1016/j.matdes.2014.06.039

[12] W. F. Smithand, J. Hashemi. Foundations of materials science and engineering, Published by McGraw-Hill, Fifth Edition, (2011) 254-267.

[13] Q. Zheng, T. Shimizu, M. Yang. Effect of Heat on Tensile Properties of Thin Pure Titanium Foils, Manufacturing Review, 2 (2015) Article No. 3.

DOI: 10.1051/mfreview/2015005

[14] H. Kim, N. Nargundkar, T. Altan. Prediction of Bend Allowance and Springback in Air Bending, J. Manuf. Sci. E. -T. ASME. 129 (2007) 342-351.

DOI: 10.1115/1.2673527

[15] Z. Jiang, J. Lian, B. Baudelet. A Dislocation Density Approximation for the Flow Stress-Grain Size Relation of Polycrystals, Acta Metall. Mater. 43 (1995) 3349-3360.

DOI: 10.1016/0956-7151(95)00031-p

[16] Q. Zheng, T. Shimizu, and M. Yang: submitted to J. Mater. Process. Tech. (2016).

[17] H. Gaoand, Y. Huang. Geometrically necessary dislocation and size-dependent plasticity, Scripta Mater. 48 (2003) 113-118.

DOI: 10.1016/s1359-6462(02)00329-9

[18] Y. Huang, S. Qu, K. C. Hwang, M. Li, H. Gao. A conventional theory of mechanism-based strain gradient plasticity, Int. J. Plasticity. 20 (2004) 753-782.

DOI: 10.1016/j.ijplas.2003.08.002
