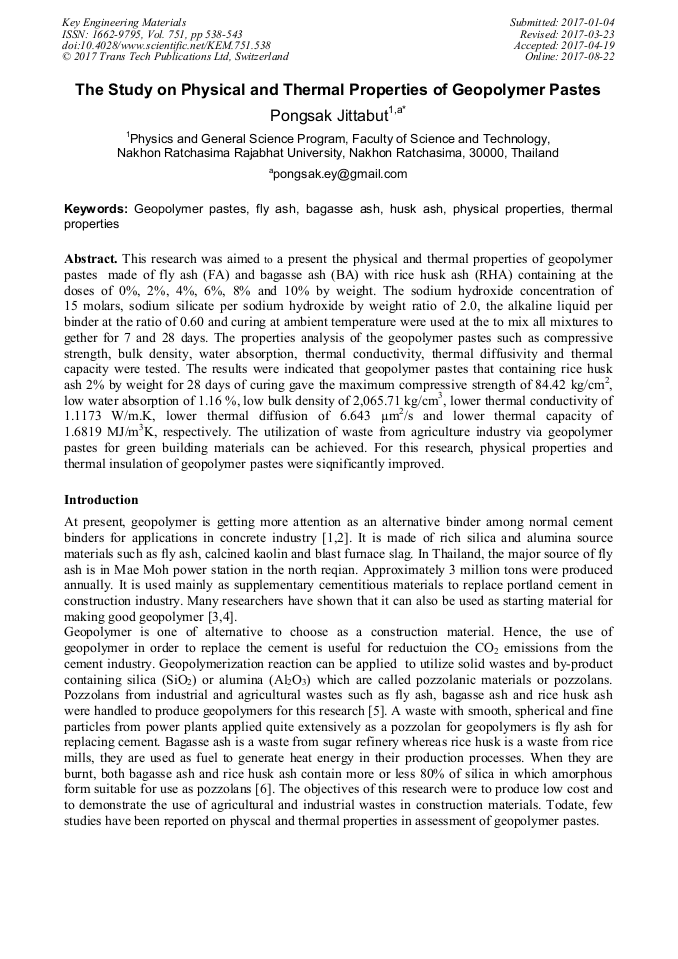

The Study on Physical and Thermal Properties of Geopolymer Pastes

Abstract:

This research was aimed to a present the physical and thermal properties of geopolymer pastes made of fly ash (FA) and bagasse ash (BA) with rice husk ash (RHA) containing at the doses of 0%, 2%, 4%, 6%, 8% and 10% by weight. The sodium hydroxide concentration of 15 molars, sodium silicate per sodium hydroxide by weight ratio of 2.0, the alkaline liquid per binder at the ratio of 0.60 and curing at ambient temperature were used at the to mix all mixtures to gether for 7 and 28 days. The properties analysis of the geopolymer pastes such as compressive strength, bulk density, water absorption, thermal conductivity, thermal diffusivity and thermal capacity were tested. The results were indicated that geopolymer pastes that containing rice husk ash 2% by weight for 28 days of curing gave the maximum compressive strength of 84.42 kg/cm², low water absorption of 1.16 %, low bulk density of 2,065.71 kg/cm³, lower thermal conductivity of 1.1173 W/m.K, lower thermal diffusion of 6.643 µm²/s and lower thermal capacity of 1.6819 MJ/m³K, respectively. The utilization of waste from agriculture industry via geopolymer pastes for green building materials can be achieved. For this research, physical properties and thermal insulation of geopolymer pastes were siqnificantly improved.

• Periodical: Key Engineering Materials (Volume 751)
• Pages: 538-543
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.751.538
• Online since: August 2017
• Authors: Pongsak Jittabut*
• Keywords: Bagasse Ash, Fly Ash, Geopolymer Pastes, Husk Ash, Physical Properties, Thermal Properties

References

[1] Hu S, Wang H, Zhang G, Ding Q. Bonding and abrasion resistance of geopolymeric repair material made with steel slag. Cem Concr Compos 2008 30: 239–44.

DOI: 10.1016/j.cemconcomp.2007.04.004

[2] Pacheco-Torgal F, Castro-Gomes JP, Jalali S. Adhesion characterization of tungsten mine waste geopolymeric binder. Influence of OPC concrete substrate surface treatment. Constr Build Mater 2008 22: 154–61.

DOI: 10.1016/j.conbuildmat.2006.10.005

[3] Chindaprasirt P, Chareerat T, Sirivivatnanon V. Workability and strength of coarse high calcium fly ash geopolymer. Cem Concr Compos 2007 29: 224–9.

DOI: 10.1016/j.cemconcomp.2006.11.002

[4] Sinsiri T, Phoo-ngernkham T, Sata V, Chindaprasirt P. The effects of replacement fly ash with diatomite in geopolymer mortar. Computers Concr 2012 9: 427–37.

DOI: 10.12989/cac.2012.9.6.427

[5] Tippayasam, C., Boonsalee, S., Sajjavanich, S., Ponzoni, C., Kamseu, E., and Chaysuwan, D. (2010). Geopolymer Development by Powders of Metakaolin and Wastes in Thailand. Advances in Science and Technology. 69: 63-68.

DOI: 10.4028/www.scientific.net/ast.69.63

[6] Chindaprasirt, P., Sirivivatnanon, S., and Rukzon, V. (2008). Resistance to chloride penetration of blended Portland cement mortar containing palm oil fuel ash, rice husk ash and fly ash. Construction and Building Materials. 22: 932- 938.

DOI: 10.1016/j.conbuildmat.2006.12.001

[7] ASTM B962-08, Standard Test Methods for Density of Compacted or Sintered Powder Metallurgy (PM) Products Using Archimedes' Principle, ASTM International, West Conshohocken, PA, 2014, www. astm. org.

DOI: 10.1520/b0962-15

[8] ASTM C109 / C109M - 16a, Standard Test Method for Compressive Strength of Hydraulic Cement Mortars (Using 2-in. or [50-mm] Cube Specimens, ASTM International, West Conshohocken, PA, 2014, www. astm. org.

DOI: 10.1520/c0109_c0109m-20

[9] ASTM C642 – 13, Standard Test Method for Density, Absorption, and Voids in Hardened Concrete, ASTM International, West Conshohocken, PA, 2014, www. astm. org.
