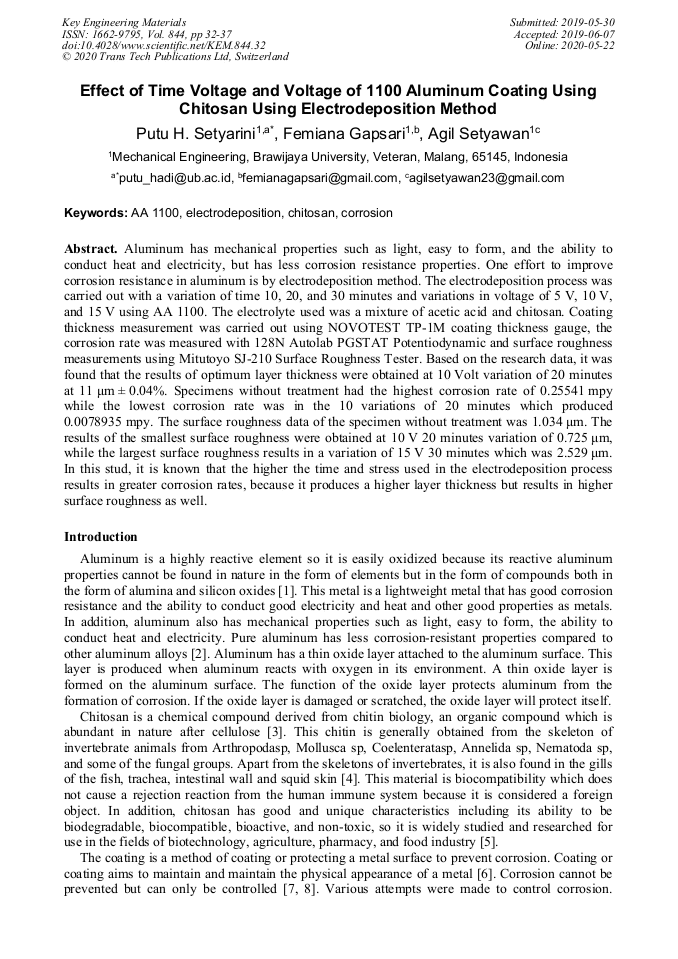

Effect of Time Voltage and Voltage of 1100 Aluminum Coating Using Chitosan Using Electrodeposition Method

Abstract:

Aluminum has mechanical properties such as light, easy to form, and the ability to conduct heat and electricity, but has less corrosion resistance properties. One effort to improve corrosion resistance in aluminum is by electrodeposition method. The electrodeposition process was carried out with a variation of time 10, 20, and 30 minutes and variations in voltage of 5 V, 10 V, and 15 V using AA 1100. The electrolyte used was a mixture of acetic acid and chitosan. Coating thickness measurement was carried out using NOVOTEST TP-1M coating thickness gauge, the corrosion rate was measured with 128N Autolab PGSTAT Potentiodynamic and surface roughness measurements using Mitutoyo SJ-210 Surface Roughness Tester. Based on the research data, it was found that the results of optimum layer thickness were obtained at 10 Volt variation of 20 minutes at 11 μm ± 0.04%. Specimens without treatment had the highest corrosion rate of 0.25541 mpy while the lowest corrosion rate was in the 10 variations of 20 minutes which produced 0.0078935 mpy. The surface roughness data of the specimen without treatment was 1.034 μm. The results of the smallest surface roughness were obtained at 10 V 20 minutes variation of 0.725 μm, while the largest surface roughness results in a variation of 15 V 30 minutes which was 2.529 μm. In this stud, it is known that the higher the time and stress used in the electrodeposition process results in greater corrosion rates, because it produces a higher layer thickness but results in higher surface roughness as well.

• Periodical: Key Engineering Materials (Volume 844)
• Pages: 32-37
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.844.32
• Online since: May 2020
• Authors: Puth H. Setyarini*, Femiana Gapsari, Agil Setyawan
• Keywords: AA 1100, Chitosan, Corrosion, Electrodeposition

References

[1] Setyarini, P. H., Gapsari, F., & Purnomo. (2018). Growth of anodic Aluminum Oxide using titanium as cathode – a review. MATEC Web of Conferences, 204, 05019. https://doi.org/10.1051/matecconf/201820405019.

DOI: 10.1051/matecconf/201820405019

[2] Setyarini, P.H., Soenoko, R., Suprapto, A., & Irawan, Y.S. (2016). Properties of Electrochemical Impedance and Surface Characteristics of Anodized AA 6061. International Review of Mechanical Engineering (IREME), 10(3), 186. https://doi.org/10.15866/ireme.v10i3.8751.

DOI: 10.15866/ireme.v10i3.8751

[3] Simchi, A., Pishbin, F., & Boccaccini, A. R. (2009). Electrophoretic deposition of chitosan. Materials Letters, 63(26), 2253-2256. https://doi.org/10.1016/j.matlet.2009.07.046.

DOI: 10.1016/j.matlet.2009.07.046

[4] Ahmed, R.A., Farghali, R.A., & Fekry, A.M. (2012). Study for the stability and corrosion inhibition of electrophoretic deposited chitosan on mild steel alloy in acidic medium. International Journal of Electrochemical Science, 7, 7270-7282.

[5] Foged, J.N., Folkmar, A.J., Elisabeth, J., Løvstad, P., Melsing, E., Napper, D., Riis, A., Jørgensen, C., Christiansen, P., Ranløv, P., & Boye-Møller, A.R. (2005). Stainless Steel in The Food Industry – an Introduction. Denmark: Danish Technological Institute.

[6] Besra, L., & Liu, M. (2007). A review on fundamentals and applications of electrophoretic deposition (EPD). Progress in materials science, 52(1), 1-61.

DOI: 10.1016/j.pmatsci.2006.07.001

[7] Gapsari, F., Wijaya, A.H. (2018). Corrosion Behavior of Brass Acid. Metalurgija, 57, (2018) 333-336.

[8] Gapsari, F., Wahyudi, S., & Sumawan. (2014). The Influence of High Content of Silicon in Austenitic Stainless Steel to Corrosion Rate in Sulphuric Acid. Applied Mechanics and Materials, 493, 727-732. https://doi.org/10.4028/www.scientific.net/amm.493.727.

DOI: 10.4028/www.scientific.net/amm.493.727

[9] Setyarini, P.H., Soenoko, R., Irawan, Y.S. (2018). Purnomo, Corrosion Characterization of Anodized AA6061, MM Sci Journal, 2415-2420.

DOI: 10.17973/mmsj.2018_06_201803

[10] Ganda, A.N.F., Andoko, Setyarini, P.H., & Gapsari, F. (2018). The inhibitive effect of tannin in Psidium guajava leaves towards 304SS corrosion in concentrated HCl. MATEC Web of Conferences, 204, 05018. https://doi.org/10.1051/matecconf/201820405018.

DOI: 10.1051/matecconf/201820405018

[11] Gapsari, F., Soenoko, R., Suprapto, A. & Suprapto, W. (2016). Green Inhibitor For Api 5L X65 Steel In HCl 0.5 M", ARPN Journal of Engineering and Applied Sciences, 11.

[12] Gapsari, F., Soenoko, R., Suprapto, A., Suprapto, W. (2018). Minimization of corrosion rate using response surface methodology. Engineering Review, 38, (2018) 115-119.

[13] Suprapto, W., & Gapsari, F. (2018). Comparation of the analytical and experimental models of 304SS corrosion rate in 0.5 m H2SS4 with bee wax propolis extract. Engineering Review, 38(2), 182-188.

DOI: 10.30765/er.38.2.6

[14] Gapsari, F., Soenoko, R., Suprapto, A., & Suprapto, W. (2016). Effect of Organics Corrosion Inhibitors on the Corrosion of 304SS in 3.5% NaCl. International Review of Mechanical Engineering (IREME), 10(7), 531. https://doi.org/10.15866/ireme.v10i7.9732.

DOI: 10.15866/ireme.v10i7.9732

[15] Gapsari, F., Soenoko, R., Suprapto, A., & Suprapto, W. (2015). Bee Wax Propolis Extract as Eco-Friendly Corrosion Inhibitors for 304SS in Sulfuric Acid. International Journal of Corrosion, 2015, 1-10. https://doi.org/10.1155/2015/567202.

DOI: 10.1155/2015/567202

[16] Sharmin, E., Ahmad, S., & Zafar, F. (2012). Renewable Resources in Corrosion Resistance,Corrosion Resistance. Dr Shih. Croatia: In Tech.

DOI: 10.5772/31995
