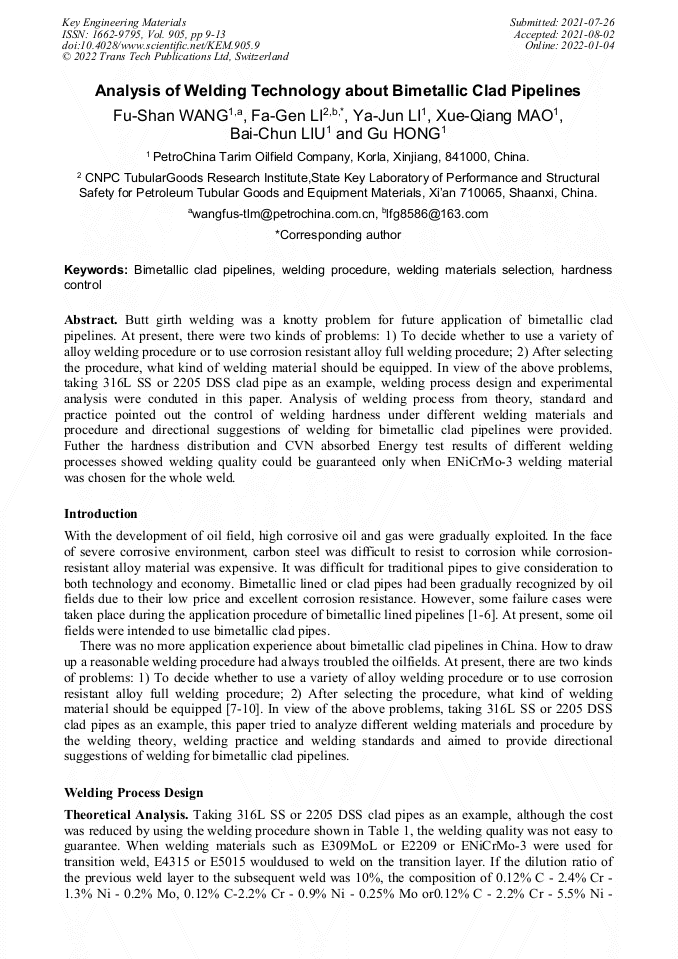

Analysis of Welding Technology about Bimetallic Clad Pipelines

Abstract:

Butt girth welding was a knotty problem for future application of bimetallic clad pipelines. At present, there were two kinds of problems: 1) To decide whether to use a variety of alloy welding procedure or to use corrosion resistant alloy full welding procedure; 2) After selecting the procedure, what kind of welding material should be equipped. In view of the above problems, taking 316L SS or 2205 DSS clad pipe as an example, welding process design and experimental analysis were conduted in this paper. Analysis of welding process from theory, standard and practice pointed out the control of welding hardness under different welding materials and procedure and directional suggestions of welding for bimetallic clad pipelines were provided. Futher the hardness distribution and CVN absorbed Energy test results of different welding processes showed welding quality could be guaranteed only when ENiCrMo-3 welding material was chosen for the whole weld.

• Periodical: Key Engineering Materials (Volume 905)
• Pages: 9-13
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.905.9
• Online since: January 2022
• Authors: Fu Shan Wang, Fa Gen Li*, Ya Jun Li, Xue Qiang Mao, Bai Chun Liu, Gu Hong
• Keywords: Bimetallic Clad Pipelines, Hardness Control, Welding Materials Selection, Welding Procedure

References

[1] PAN Xu, ZHOU Yongliang, FENG Zhigang, at el. Problems and Suggestions on Collapse of Double Metal Composite Pipe Lining. Petroleum Engineering Construction, 2017, 43(1): 57-59.

[2] GUO Chongxiao, JIANG Qinrong, ZHANG Yanfei, at el. Stress Corrosion Cracking Failure Analysis on Bimetal Composite Pipe Lining Layer. Welded Pipe and Tube, 2016, 39(02): 33-38.

[3] CHEN Hao, GU Yuanguo, JIANG Shengfei. Failure Reasons for 20G/316L Double Metal Composite Pipe. Corrosion & Protection, 2015, 36(12): 1194-1197.

[4] Fu A.Q, Kuang X.R, Han Y. Failure Analysis of Girth Weld Cracking of Mechanically Lined Pipein Gas Field Gathering System. Engineering Failure Analysis, 2016, (68) :64-75.

DOI: 10.1016/j.engfailanal.2016.05.034

[5] CHEN Haiyun, CAO Zhixi. Influence of Heat Load to the Residue Pressure of Bimetal Composite Pipe. Journal of Plasticity Engineering, 2007, 14(2): 86-89.

[6] WEI Fan, JIANG Yi, WU Ze, at el. Mechanism Analysis and Testing Research on the Buckling of the Bimetal Lined Pipe. Natural Gasand Oil, 2017, 35(5): 06-11.

[7] YANG Gang. Research on Welding Procedure and Quality Control about X65/316L Lind Pipe. Welding Technology, 2012, 41(12): 56-57.

[8] WANG Jianming, WANG wenlong, GUO Yuexin. Research on Welding Procedure and Performance of Inconel 625/X65 Lind Pipe. Welding & Joining, 2012(8): 42-46.

[9] ZHANG Dianjie. Research on Welding Procedure of L485MB+316L Lined Pipe. Management & Technology of SME, 2012, (05): 311-312.

[10] MA Qihui, WANG Shaogang, ZHANG Liang, LI Yan. Review of Dissimilar Metal Welding Between Duplex Stainless Steel and Carbon Steel. Welded Pipe and Tube, 2009, (08):26-30.

[11] API Specification 5LD: CRA Clad or Lined Steel Pipe, (2015).

[12] GB/T 13148: Specification for Welding of stainless Steel clad Plates, (2008).

[13] SH/T 3527: Specification for Welding of Stainless Steel Clad Plates in Petrochemical Industry, (2009).
