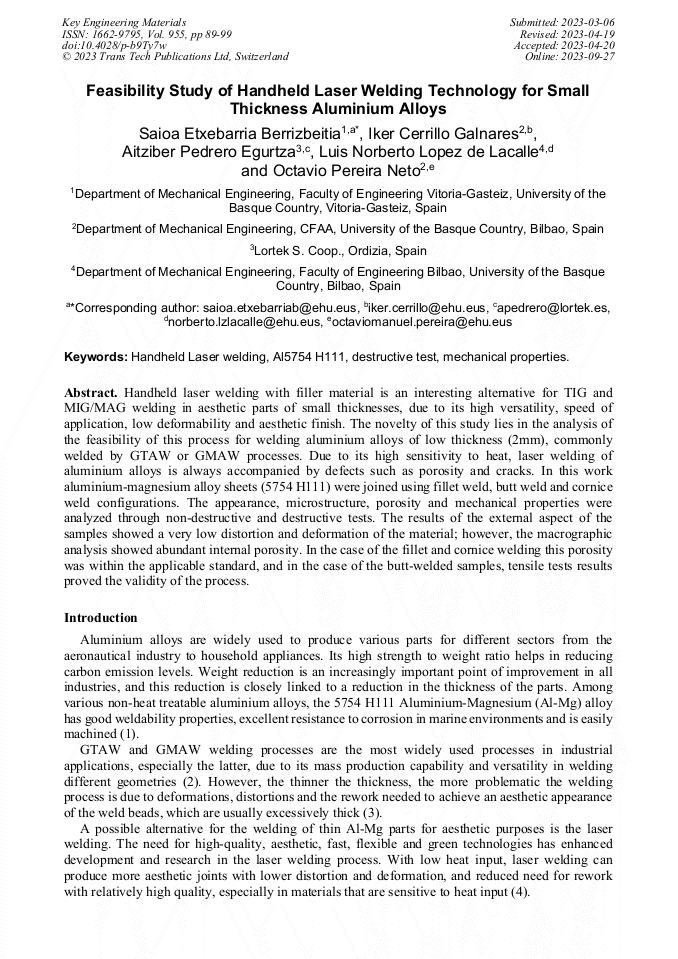

Feasibility Study of Handheld Laser Welding Technology for Small Thickness Aluminium Alloys

Abstract:

Handheld laser welding with filler material is an interesting alternative for TIG and MIG/MAG welding in aesthetic parts of small thicknesses, due to its high versatility, speed of application, low deformability and aesthetic finish. The novelty of this study lies in the analysis of the feasibility of this process for welding aluminium alloys of low thickness (2mm), commonly welded by GTAW or GMAW processes. Due to its high sensitivity to heat, laser welding of aluminium alloys is always accompanied by defects such as porosity and cracks. In this work aluminium-magnesium alloy sheets (5754 H111) were joined using fillet weld, butt weld and cornice weld configurations. The appearance, microstructure, porosity and mechanical properties were analyzed through non-destructive and destructive tests. The results of the external aspect of the samples showed a very low distortion and deformation of the material; however, the macrographic analysis showed abundant internal porosity. In the case of the fillet and cornice welding this porosity was within the applicable standard, and in the case of the butt-welded samples, tensile tests results proved the validity of the process.

• Periodical: Key Engineering Materials (Volume 955)
• Pages: 89-99
• DOI: https://doi.org/10.4028/p-b9Ty7w
• Online since: September 2023
• Authors: Saioa Etxebarria Berrizbeitia*, Iker Cerrillo Galnares, Aitziber Pedrero Egurtza, Luis Norberto López de Lacalle, Octavio Pereira Neto
• Keywords: Al5754 H111, Destructive Test, Handheld Laser Welding, Mechanical Properties

References

[1] M. Ciemiorek, A. Ambroziak, K. Majchrowicz, M. Lewandowska, J. Goliński, Ductility and formability of ultrafine-grained 5754 aluminium alloy under various strain rates and temperatures, Materials Science and Engineering: A, Volume 848, 2022, 143375, ISSN 0921-5093.

DOI: 10.1016/j.msea.2022.143375

[2] Rajesh P. Verma, K.N. Pandey, Kovács András, Rohit Khargotra, Tej Singh, Difficulties and redressal in joining of aluminium alloys by GMA and GTA welding: a review, Journal of Materials Research and Technology, Volume 23, 2023, Pages 2576-2586, ISSN 2238-7854.

DOI: 10.1016/j.jmrt.2023.01.183

[3] M.I. Costa, C. Leitão, D.M. Rodrigues, Parametric study of friction stir welding induced distortion in thin aluminium alloy plates: A coupled numerical and experimental analysis, Thin-Walled Structures, Volume 134, 2019, Pages 268-276, ISSN 0263-8231.

DOI: 10.1016/j.tws.2018.10.027

[4] Jing Han, Yu Shi, Gang Zhang, Korzhyk Volodymyr, Wang-yun Le, Minimizing defects and controlling the morphology of laser welded aluminum alloys using power modulation-based laser beam oscillation, Journal of Manufacturing Processes, Volume 83, 2022, Pages 49-59, ISSN 1526-6125.

DOI: 10.1016/j.jmapro.2022.08.031

[5] G.A. Moraitis, G.N. Labeas, Prediction of residual stresses and distortions due to laser beam welding of butt joints in pressure vessels, International Journal of Pressure Vessels and Piping, Volume 86, Issues 2–3, 2009, Pages 133-142, ISSN 0308-0161.

DOI: 10.1016/j.ijpvp.2008.11.004

[6] Y. Gao, P. Zhong, X. Tang, H. Hu and P. Xu, "Feature Extraction of Laser Welding Pool Image and Application in Welding Quality Identification," in IEEE Access, vol. 9, pp.120193-120202, 2021, http://.

DOI: 10.1109/ACCESS.2021.3108462

[7] UNE-EN ISO 17637:2017, "Non-destructive testing of welds - Visual testing of fusion-welded joints".

DOI: 10.3403/30230977

[8] UNE-EN ISO 3452-1:2022, "Non-destructive testing - Penetrant testing - Part 1: General principles".

[9] UNE-EN ISO 17639:2013, "Destructive tests on welds in metallic materials - Macroscopic and microscopic examination of welds".

DOI: 10.3403/30420699

[10] UNE-EN ISO 15614-2: 2006, "Specification and qualification of welding procedures for metallic materials - Welding procedure test - Part 2: Arc welding of aluminium and its alloys"

DOI: 10.3403/03254938

[11] UNE-EN ISO 13919-2: 2021, "Electron and laser-beam welded joints - Requirements and recommendations on quality levels for imperfections - Part 2: Aluminium, magnesium and their alloys and pure copper".

DOI: 10.3403/30374018

[12] Król, M., Tański, T., Snopiński, P. et al. Structure and properties of aluminium–magnesium casting alloys after heat treatment. J Therm Anal Calorim 127, 299–308 (2017)

DOI: 10.1007/s10973-016-5845-4
