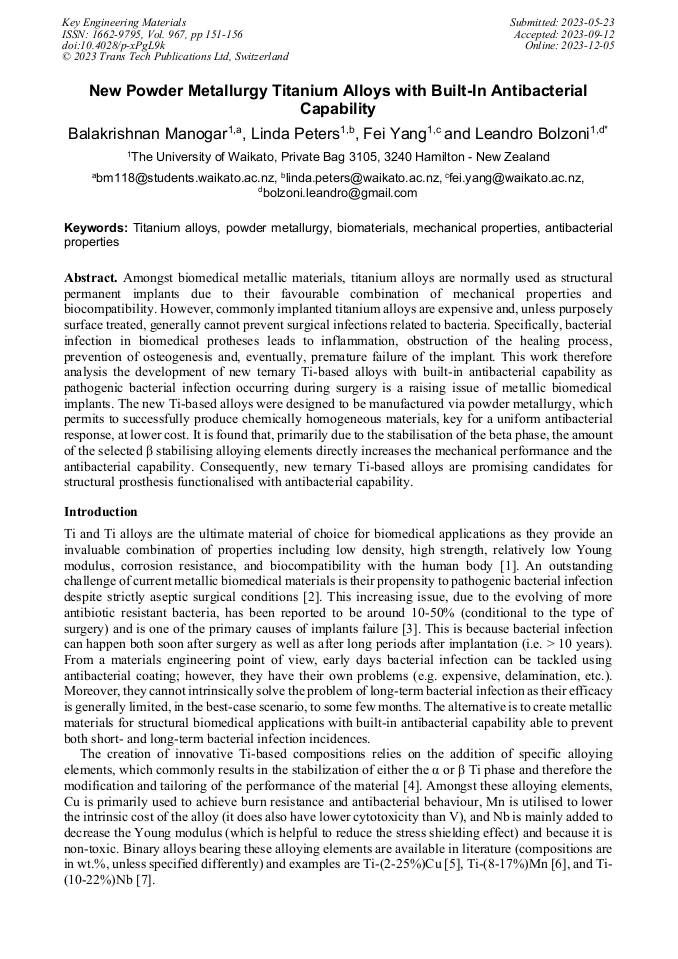

New Powder Metallurgy Titanium Alloys with Built-In Antibacterial Capability

Abstract:

Amongst biomedical metallic materials, titanium alloys are normally used as structural permanent implants due to their favourable combination of mechanical properties and biocompatibility. However, commonly implanted titanium alloys are expensive and, unless purposely surface treated, generally cannot prevent surgical infections related to bacteria. Specifically, bacterial infection in biomedical protheses leads to inflammation, obstruction of the healing process, prevention of osteogenesis and, eventually, premature failure of the implant. This work therefore analysis the development of new ternary Ti-based alloys with built-in antibacterial capability as pathogenic bacterial infection occurring during surgery is a raising issue of metallic biomedical implants. The new Ti-based alloys were designed to be manufactured via powder metallurgy, which permits to successfully produce chemically homogeneous materials, key for a uniform antibacterial response, at lower cost. It is found that, primarily due to the stabilisation of the beta phase, the amount of the selected β stabilising alloying elements directly increases the mechanical performance and the antibacterial capability. Consequently, new ternary Ti-based alloys are promising candidates for structural prosthesis functionalised with antibacterial capability.

• Periodical: Key Engineering Materials (Volume 967)
• Pages: 151-156
• DOI: https://doi.org/10.4028/p-xPgL9k
• Online since: December 2023
• Authors: Balakrishnan Manogar, Linda Peters, Fei Yang, Leandro Bolzoni*
• Keywords: Antibacterial Properties, Biomaterials, Mechanical Properties, Powder Metallurgy, Titanium Alloys

References

[1] L. Bolzoni, E.M. Ruiz-Navas, E. Gordo, Powder Metallurgy CP-Ti Performances: Hydride-dehydride vs. sponge, Materials and Design 60 (2014) 226-232.

DOI: 10.1016/j.matdes.2014.04.005

[2] J. Liu, X. Zhang, H. Wang, F. Li, M. Li, K. Yang, E. Zhang, The Antibacterial Properties and Biocompatibility of a Ti-Cu Sintered Alloy for Biomedical Application, Biomedical Materials 9(2) (2014) 025013.

DOI: 10.1088/1748-6041/9/2/025013

[3] E. Seebach, K.F. Kubatzky, Chronic Implant-Related Bone Infections - Can Immune Modulation be a Therapeutic Strategy?, Frontiers in Immunology 10(1724) (2019).

DOI: 10.3389/fimmu.2019.01724

[4] L. Bolzoni, E.M. Ruiz-Navas, E. Neubauer, E. Gordo, Mechanical Properties and Microstructural Evolution of Vacuum Hot-pressed Titanium and Ti-6Al-7Nb Alloy, Journal of the Mechanical Behavior of Biomedical Materials 9C (2012) 91-99.

DOI: 10.1016/j.jmbbm.2012.01.015

[5] J. Liu, F. Li, C. Liu, H. Wang, B. Ren, K. Yang, E. Zhang, Effect of Cu Content on the Antibacterial Activity of Titanium-Copper Sintered Alloys, Materials Science and Engineering: C 35 (2014) 392-400.

DOI: 10.1016/j.msec.2013.11.028

[6] P. Fernandes Santos, M. Niinomi, H. Liu, K. Cho, M. Nakai, Y. Itoh, T. Narushima, M. Ikeda, Fabrication of Low-cost Beta-type Ti-Mn Alloys for Biomedical Applications by Metal Injection Molding Process and Their Mechanical Properties, Journal of the Mechanical Behavior of Biomedical Materials 59 (2016) 497-507.

DOI: 10.1016/j.jmbbm.2016.02.035

[7] D. Zhao, K. Chang, T. Ebel, M. Qian, R. Willumeit, M. Yan, F. Pyczak, Microstructure and Mechanical Behavior of Metal Injection Molded Ti-Nb Binary Alloys as Biomedical Material, Journal of the Mechanical Behavior of Biomedical Materials 28 (2013) 171-182.

DOI: 10.1016/j.jmbbm.2013.08.013

[8] T. Shirai, H. Tsuchiya, T. Shimizu, K. Ohtani, Y. Zen, K. Tomita, Prevention of Pin Tract Infection with Titanium-copper Alloys, Journal of Biomedical Materials Research Part B: Applied Biomaterials 91B(1) (2009) 373-380.

DOI: 10.1002/jbm.b.31412

[9] L. Ren, Z. Ma, M. Li, Y. Zhang, W. Liu, Z. Liao, K. Yang, Antibacterial Properties of Ti-6Al-4V-xCu Alloys, Journal of Materials Science & Technology 30(7) (2014) 699-705.

DOI: 10.1016/j.jmst.2013.12.014

[10] M.T. Jia, B. Gabbitas, L. Bolzoni, Evaluation of Reactive Induction Sintering as a Manufacturing Route for Blended Elemental Ti-5Al-2.5Fe Alloy, Journal of Materials Processing Technology 255 (2018) 611-620.

DOI: 10.1016/j.jmatprotec.2018.01.013

[11] M. Morinaga, N. Yukawa, T. Maya, K. Sone, H. Adachi, Theoretical Design of Titanium Alloys, Sixth World Conferecne on Titanium III (1988) 1601-1606.

[12] P.J. Bania, Beta Titanium Alloys and Their Role in the Titanium Industry, JOM 46(7) (1994) 16-19.

DOI: 10.1007/bf03220742

[13] Q. Wang, C. Dong, P.K. Liaw, Structural Stabilities of β-Ti Alloys Studied Using a New Mo Equivalent Derived from [β/(α + β)] Phase-Boundary Slopes, Metallurgical and Materials Transactions A 46(8) (2015) 3440-3447.

DOI: 10.1007/s11661-015-2923-3

[14] L. Bolzoni, M. Alqattan, L. Peters, Y. Alshammari, F. Yang, Ternary Ti Alloys Functionalised with Antibacterial Activity, Scientific Reports 10(1) (2020) 22201.

DOI: 10.1038/s41598-020-79192-3

[15] R.M. German, Titanium Sintering Science: A Review of Atomic Events during Densification, International Journal of Refractory Metals and Hard Materials 89 (2020) 105214.

DOI: 10.1016/j.ijrmhm.2020.105214

[16] S. Raynova, M.A. Imam, F. Yang, L. Bolzoni, Hybrid Microwave Sintering of Blended Elemental Ti Alloys, Journal of Manufacturing Processes 39 (2019) 52-57.

DOI: 10.1016/j.jmapro.2019.02.002

[17] GB4789.2-2010, National Food Safety Standard Food Microbiological Examination: Aerobic Plate Count: Ministry of health of the people's republic of China, Ministry of health of the people's republic of China., China, 2010.

[18] E.-L. Zhang, S. Fu, R.-X. Wang, H.-X. Li, Y. Liu, Z.-Q. Ma, G.-K. Liu, C.-S. Zhu, G.-W. Qin, D.-F. Chen, Role of Cu Element in Biomedical Metal Alloy Design, Rare Metals 38(6) (2019) 476-494.

DOI: 10.1007/s12598-019-01245-y

[19] R. Liu, Y. Tang, L. Zeng, Y. Zhao, Z. Ma, Z. Sun, L. Xiang, L. Ren, K. Yang, In vitro and In vivo Studies of Anti-bacterial Copper-bearing Titanium Alloy for Dental Application, Dental Materials 34(8) (2018) 1112-1126.

DOI: 10.1016/j.dental.2018.04.007
