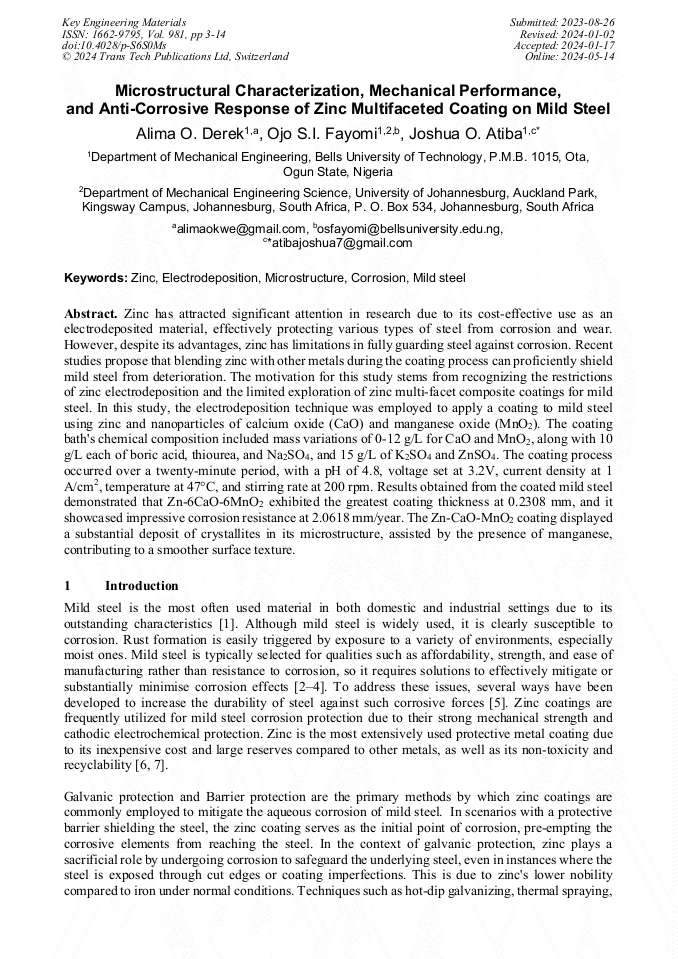

Microstructural Characterization, Mechanical Performance, and Anti-Corrosive Response of Zinc Multifaceted Coating on Mild Steel

Abstract:

Zinc has attracted significant attention in research due to its cost-effective use as an electrodeposited material, effectively protecting various types of steel from corrosion and wear. However, despite its advantages, zinc has limitations in fully guarding steel against corrosion. Recent studies propose that blending zinc with other metals during the coating process can proficiently shield mild steel from deterioration. The motivation for this study stems from recognizing the restrictions of zinc electrodeposition and the limited exploration of zinc multi-facet composite coatings for mild steel. In this study, the electrodeposition technique was employed to apply a coating to mild steel using zinc and nanoparticles of calcium oxide (CaO) and manganese oxide (MnO₂). The coating bath's chemical composition included mass variations of 0-12 g/L for CaO and MnO₂, along with 10 g/L each of boric acid, thiourea, and Na₂SO₄, and 15 g/L of K₂SO₄ and ZnSO₄. The coating process occurred over a twenty-minute period, with a pH of 4.8, voltage set at 3.2V, current density at 1 A/cm², temperature at 47°C, and stirring rate at 200 rpm. Results obtained from the coated mild steel demonstrated that Zn-6CaO-6MnO₂ exhibited the greatest coating thickness at 0.2308 mm, and it showcased impressive corrosion resistance at 2.0618 mm/year. The Zn-CaO-MnO₂ coating displayed a substantial deposit of crystallites in its microstructure, assisted by the presence of manganese, contributing to a smoother surface texture.

• Periodical: Key Engineering Materials (Volume 981)
• Pages: 3-14
• DOI: https://doi.org/10.4028/p-S6S0Ms
• Online since: May 2024
• Authors: Alima. O Derek, Ojo Sunday Isaac Fayomi, Joshua O. Atiba*
• Keywords: Corrosion, Electrodeposition, Microstructure, Mild Steel, Zinc

References

[1] O. P. Abioye, A. J. Musa, C. A. Loto, O. S. I. Fayomi, and G. P. Gaiya, "Evaluation of Corrosive Behavior of Zinc Composite Coating on Mild Steel for Marine Applications," J. Phys. Conf. Ser., vol. 1378, no. 4, 2019.

DOI: 10.1088/1742-6596/1378/4/042051

[2] M. J. Rahman, S. R. Sen, M. Moniruzzaman, and K. M. Shorowordi, "Morphology and properties of electrodeposited Zn-Ni alloy coatings on mild steel," J. Mech. Eng., vol. 40, no. 1, p.9–14, 2009.

DOI: 10.3329/jme.v40i1.3468

[3] I. H. Karahan, & H. S. Güder, (2009). Electrodeposition and properties of Zn, Zn–Ni, Zn–Fe and Zn–Fe–Ni alloys from acidic chloride–sulphate electrolytes. Transactions of the IMF, 87(3), 155-158.

DOI: 10.1179/174591909x438875

[4] N. C. Hosking, M. A. Ström, P. H. Shipway, and C. D. Rudd, "Corrosion resistance of zinc–magnesium coated steel," Corros. Sci., vol. 49, no. 9, p.3669–3695, 2007.

DOI: 10.1016/j.corsci.2007.03.032

[5] C. N. Panagopoulos, E. P. Georgiou, P. E. Agathocleous, & K. I. Giannakopoulos, (2009). Mechanical behaviour of Zn–Fe alloy coated mild steel. Materials & Design, 30(10), 4267-4272.

DOI: 10.1016/j.matdes.2009.04.026

[6] J. D. Brassard, D. K. Sarkar, J. Perron, A. Audibert-Hayet, and D. Melot, "Nano-micro structured superhydrophobic zinc coating on steel for prevention of corrosion and ice adhesion," J. Colloid Interface Sci., vol. 447, p.240–247, 2015.

DOI: 10.1016/j.jcis.2014.11.076

[7] N. A. Polyakov, I. G. Botryakova, V. G. Glukhov, G. V Red'kina, and Y. I. Kuznetsov, "Formation and anticorrosion properties of superhydrophobic zinc coatings on steel," Chem. Eng. J., vol. 421, p.127775, 2021.

DOI: 10.1016/j.cej.2020.127775

[8] P. G. Salom, "The metallurgy of steel," J. Franklin Inst., vol. 120, no. 3, 2000.

DOI: 10.1016/0016-0032(85)90312-6

[9] R. P. Edavan and R. Kopinski, "Corrosion resistance of painted zinc alloy coated steels," Corros. Sci., vol. 51, no. 10, p.2429–2442, 2009.

DOI: 10.1016/j.corsci.2009.06.028

[10] S. M. A. Shibli, B. N. Meena, and R. Remya, "A review on recent approaches in the field of hot dip zinc galvanizing process," Surf. Coatings Technol., vol. 262, p.210–215, 2015.

DOI: 10.1016/j.surfcoat.2014.12.054

[11] N. Loukil and M. Feki, "Zn–Mn electrodeposition: a literature review," J. Electrochem. Soc., vol. 167, no. 2, p.22503, 2020.

DOI: 10.1149/1945-7111/ab6160

[12] K. K. Maniam and S. Paul, "Progress in electrodeposition of zinc and zinc nickel alloys using ionic liquids," Appl. Sci., vol. 10, no. 15, p.5321, 2020.

DOI: 10.3390/app10155321

[13] A. Lelevic and F. C. Walsh, "Electrodeposition of NiP alloy coatings: a review," Surf. Coatings Technol., vol. 369, p.198–220, 2019.

DOI: 10.1016/j.surfcoat.2019.03.055

[14] O. P. Abioye, A. J. Musa, C. A. Loto, O. S. I. Fayomi, and G. P. Gaiya, "Evaluation of corrosive behavior of zinc composite coating on mild steel for marine applications," in Journal of Physics: Conference Series, 2019, vol. 1378, no. 4, p.42051.

DOI: 10.1088/1742-6596/1378/4/042051

[15] A. Kumar and D. P. Sammaiah, "Influence of process parameters on mechanical and metallurgical properties of zinc coating on mild steel during mechanical process," Curr. Res. Top. poweer, Nucl. Fuel Energy, SP-CRTPNFE, no. 2016, 2017.

DOI: 10.1016/j.matpr.2017.11.640

[16] D. T. Oloruntoba, O. O. Oluwole, & E. O. Oguntade, (2009). Comparative study of corrosion behaviour of galvanized steel and coated Al 3103 roofing sheets in carbonate and chloride environments. Materials & Design, 30(4), 1371-1376.

DOI: 10.1016/j.matdes.2008.06.005

[17] S. G. Croll, "Surface roughness profile and its effect on coating adhesion and corrosion protection: A review," Prog. Org. Coatings, vol. 148, p.105847, 2020.

DOI: 10.1016/j.porgcoat.2020.105847

[18] V. Kumar and K. Balasubramanian, "Progress update on failure mechanisms of advanced thermal barrier coatings: A review," Prog. Org. Coatings, vol. 90, p.54–82, 2016.

DOI: 10.1016/j.porgcoat.2015.09.019

[19] I. G. Akande, O. S. I. Fayomi, and B. J. Akpan, "Development of UPP nanoparticles reinforced Zn–ZnO–MgO composite coating for corrosion-resistance, hardness, and microstructure property enhancement of AISI 1015 carbon steel for automotive and marine applications," Int. J. Adv. Manuf. Technol., vol. 123, no. 3–4, p.999–1008, 2022.

DOI: 10.1007/s00170-022-10222-2

[20] X. Wang, J. Pan, Q. Li, X. Dong, L. Shi, and S. Chang, "Preparation, Corrosion Resistance, and Electrochemical Properties of MnO2/TiO2 Coating on Porous Titanium," Coatings, vol. 12, no. 10, p.1381, 2022.

DOI: 10.3390/coatings12101381

[21] D. T. Ruppel, S. C. Dexter, and G. W. Luther, "Role of manganese dioxide in corrosion in the presence of natural biofilms," Corrosion, vol. 57, no. 10, 2001.

DOI: 10.5006/1.3290313

[22] A. Domenech-Carbo, M. A. P. Ronda, J. Vives-Ferrandiz, G. S. Duffo, S. Farina, and M. T. Domenech-Carbo, "Modeling 'dry'OCP measurements to characterize archaeological iron corrosion I: long-time transients," J. Electroanal. Chem., vol. 913, p.116210, 2022.

DOI: 10.1016/j.jelechem.2022.116210

[23] O. D. Akinfenwa, O. S. I. Fayomi, J. O. Atiba, and B. E. Anyaegbuna, "Chemical and microstructural investigation of starch modified zinc oxide paired as a composite superhydrophobic coating for mild steel protection," Chem. Pap., no. 0123456789, 2023.

DOI: 10.1007/s11696-023-03091-w

[24] K. Charoenkitamorn, P. T. Tue, K. Kawai, O. Chailapakul, and Y. Takamura, "Electrochemical immunoassay using open circuit potential detection labeled by platinum nanoparticles," Sensors, vol. 18, no. 2, p.444, 2018.

DOI: 10.3390/s18020444

[25] T. A. Hemkemeier, F. C. R. Almeida, A. Sales, and A. J. Klemm, "Corrosion monitoring by open circuit potential in steel reinforcements embedded in cementitious composites with industrial wastes," Case Stud. Constr. Mater., vol. 16, p. e01042, 2022.

DOI: 10.1016/j.cscm.2022.e01042

[26] B. Yazıcılar, F. Böke, A. Alaylı, H. Nadaroglu, S. Gedikli, and I. Bezirganoglu, "In vitro effects of CaO nanoparticles on Triticale callus exposed to short and long-term salt stress," Plant Cell Rep., vol. 40, p.29–42, 2021.

DOI: 10.1007/s00299-020-02613-0

[27] M. Liu et al., "Effect of microstructure and crystallography on sulfide stress cracking in API-5CT-C110 casing steel," Mater. Sci. Eng. A, vol. 671, p.244–253, 2016.

DOI: 10.1016/j.msea.2016.06.034

[28] A. Datta, U. Ramamurty, S. Ranganathan, and U. V Waghmare, "Crystal structures of a Mg–Zn–Y alloy: A first-principles study," Comput. Mater. Sci., vol. 37, no. 1–2, p.69–73, 2006.

DOI: 10.1016/j.commatsci.2005.12.020

[29] M.K. Kolle, S. Shajahan, and A. Basu, "Effect of electrodeposition current and pulse parameter on surface mechanical and electrochemical behavior of Ni–W alloy coatings," Metall. Mater. Trans. A, vol. 51, p.3721–3731, 2020.

DOI: 10.1007/s11661-020-05787-0

[30] Y. Liu et al., "Structure–Performance evolution mechanism of the wear failure process of coated spherical plain bearings," Eng. Fail. Anal., vol. 135, p.106097, 2022.

DOI: 10.1016/j.engfailanal.2022.106097
