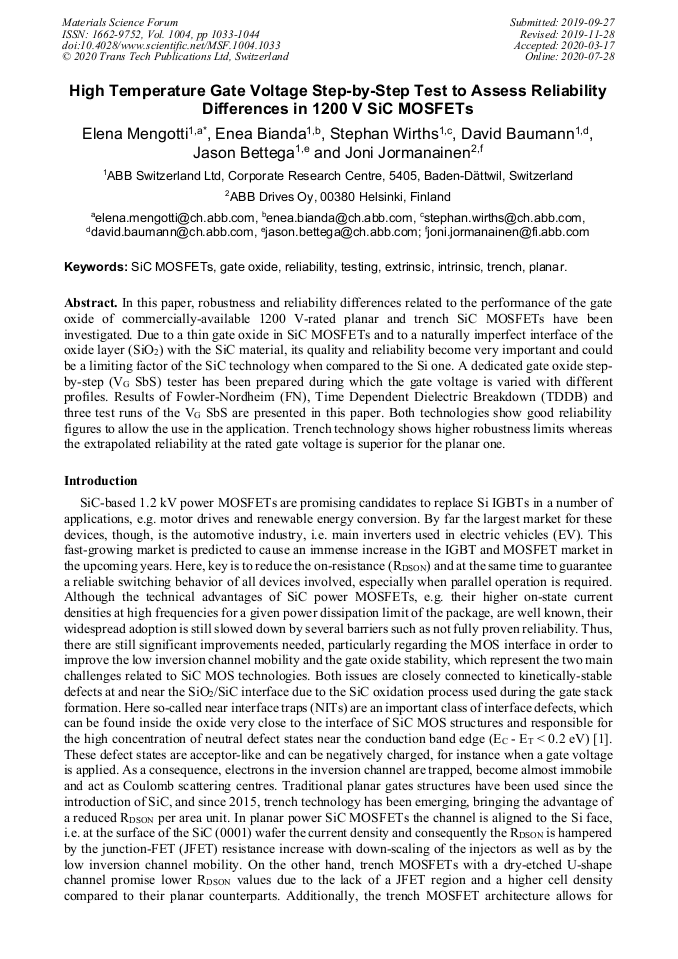

High Temperature Gate Voltage Step-by-Step Test to Assess Reliability Differences in 1200 V SiC MOSFETs

Abstract:

In this paper, robustness and reliability differences related to the performance of the gate oxide of commercially-available 1200 V-rated planar and trench SiC MOSFETs have been investigated. Due to a thin gate oxide in SiC MOSFETs and to a naturally imperfect interface of the oxide layer (SiO₂) with the SiC material, its quality and reliability become very important and could be a limiting factor of the SiC technology when compared to the Si one. A dedicated gate oxide step-by-step (V_G SbS) tester has been prepared during which the gate voltage is varied with different profiles. Results of Fowler-Nordheim (FN), Time Dependent Dielectric Breakdown (TDDB) and three test runs of the V_G SbS are presented in this paper. Both technologies show good reliability figures to allow the use in the application. Trench technology shows higher robustness limits whereas the extrapolated reliability at the rated gate voltage is superior for the planar one.

• Periodical: Materials Science Forum (Volume 1004)
• Pages: 1033-1044
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1004.1033
• Online since: July 2020
• Authors: Elena Mengotti*, Enea Bianda, Stephan Wirths, David Baumann, Jason Bettega, Joni Jormanainen
• Keywords: Extrinsic, Gate Oxide, Intrinsic, Planar, Reliability, SiC-MOSFET, Testing, Trench

References

[1] T. Kimoto and J. A. Cooper, Fundamentals of Silicon Carbide Technology. Singapore: John Wiley & Sons Singapore Pte. Ltd, (2014).

[2] J.A. Cooper, Jr., Oxides on SiC,, IEEE/Cornell Conference on Advanced Concepts in High Speed Semiconductor Device and Circuits, 1997, pp.236-243.

DOI: 10.1109/cornel.1997.649363

[3] M. Beier-Moebius and J. Lutz, Breakdown of gate oxide of 1.2 kV SiC-MOSFETs under high temperature and high gate voltage,, PCIM Europe 2016, pp.1-8.

[4] M. Beier-Moebius and J. Lutz, Breakdown of Gate Oxide of SiC-MOSFETs and Si-IGBTs under High Temperature and High Gate Voltage,, PCIM Europe 2017, pp.1-8.

[5] J. Jormanainen et al., High Humidity, High Temperature and High Voltage Reverse Bias - A Relevant Test for Industrial Applications,, PCIM Europe 2018, pp.1-7.

[6] D. Peters et al., Investigation of threshold voltage stability of SiC MOSFETs,, ISPSD 2018, 40-43.

[7] T. Basler et al., Practical Aspects and Body Diode Robustness of a 1200 V SiC Trench MOSFET,, PCIM Europe 2018, pp.1-7.

[8] C. Unger and M. Pfost, Influence of the off-state gate-source voltage on the transient drain current response of SiC MOSFETs,, ISPSD, 2018, pp.48-51.

DOI: 10.1109/ispsd.2018.8393599

[9] D. J. Lichtenwalner et al., Reliability studies of SiC vertical power MOSFETs,, IRPS 2018, pp. 2B.2-1-2B.2-6.

[10] N. Kaminski et al., Gaining Confidence - A Review of Silicon Carbide's Reliability Status,, IRPS 2019, pp.1-7.

[11] M. Kimura, Oxide breakdown mechanism and quantum physical chemistry for time-dependent dielectric breakdown,, IRPS 1997, pp.190-200.

DOI: 10.1109/relphy.1997.584259

[12] J.C. Lee et al., Modeling and characterization of gate oxide reliability,, IEEE Transaction on Electron Devices, Vol. 35, no. 12, 1988, pp.2268-2278.

DOI: 10.1109/16.8802
