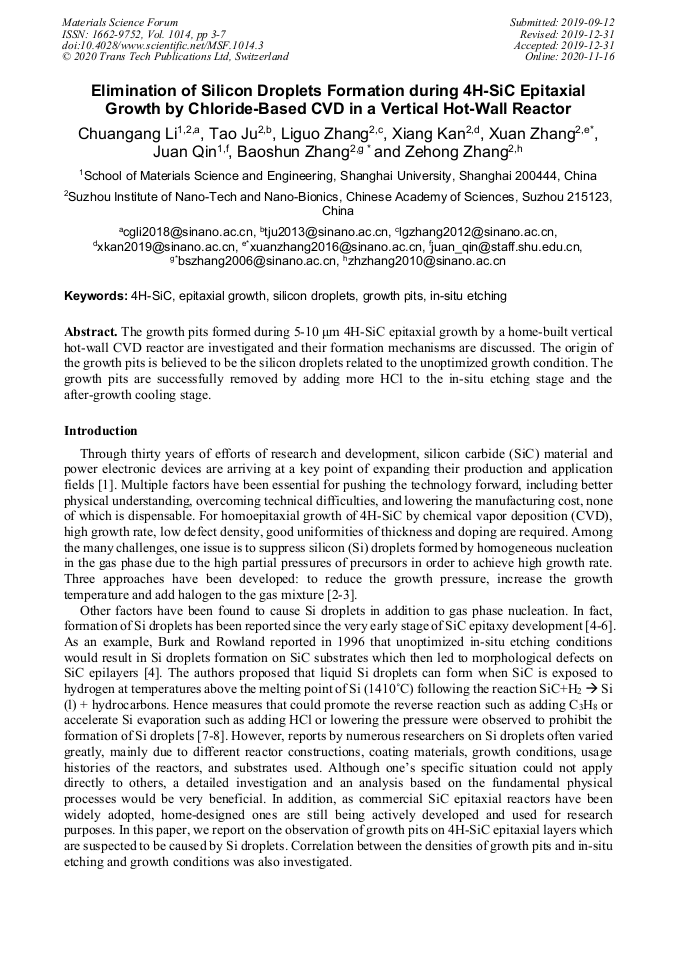

Elimination of Silicon Droplets Formation during 4H-SiC Epitaxial Growth by Chloride-Based CVD in a Vertical Hot-Wall Reactor

Abstract:

The growth pits formed during 5-10 μm 4H-SiC epitaxial growth by a home-built vertical hot-wall CVD reactor are investigated and their formation mechanisms are discussed. The origin of the growth pits is believed to be the silicon droplets related to the unoptimized growth condition. The growth pits are successfully removed by adding more HCl to the in-situ etching stage and the after-growth cooling stage.

You might also be interested in these eBooks

Materials for Electronics: Silicon Carbide and Related Materials

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1014)

Pages:

3-7

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1014.3

Citation:

Cite this paper

Online since:

November 2020

Authors:

Chuan Gang Li, Tao Ju, Li Guo Zhang, Xiang Kan, Xuan Zhang*, Juan Qin, Bao Shun Zhang, Ze Hong Zhang

Keywords:

4H-SiC, Epitaxial Growth, Growth Pits, In-Situ Etching, Silicon Droplets

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] T. Kimoto, J.A. Cooper, Fundamentals of Silicon Carbide Technology, John Wiley & Sons, Singapore, (2014).

Google Scholar

[2] H. Tsuchida, I. Kamata, T. Jikimoto and K. Izumi, Epitaxial growth of thick 4H-SiC layers in a vertical radiant-heating reactor, J. Cryst. Growth 237-239 (2002) 1206-1212.

DOI: 10.1016/s0022-0248(01)02173-x

Google Scholar

[3] F. La Via, G. Galvagno, A. Firrincieli, F. Roccaforte, S. Di Franco, A. Ruggiero, and D. Crippa, Epitaxial layers grown with HCl addition: A comparison with the standard process, Mater. Sci. Forum 527-529 (2006) 163-166.

DOI: 10.4028/www.scientific.net/msf.527-529.163

Google Scholar

[4] A.A. Burk Jr. and L.B. Rowland, The role of excess silicon and in situ etching on 4H-SiC and 6H-SiC epitaxial layer morphology, J. Crystal. Growth 167 (1996) 586-595.

DOI: 10.1016/0022-0248(96)00293-x

Google Scholar

[5] S. Karmann, W. Suttrop, M. Schadt, C. Haberstroh, Chemical vapour deposition and characterization of undoped and nitrogen-doped single crystalline 6H-SiC, J. Appl. Phys. 72 (1992) 5437-5442.

DOI: 10.1063/1.351985

Google Scholar

[6] J.A. Powell, D.J. Larkin and P.B. Abel, Surface morphology of silicon carbide epitaxial films, Electronic Mater. 24 (1995) 295-301.

DOI: 10.1007/bf02659690

Google Scholar

[7] T. Hori, K. Danno, T. Kimoto, Fast homoepitaxial growth of 4H-SiC with low basal-plane dislocation density and low trap concentration by hot-wall chemical vapor deposition, J. Cryst. Growth. 306 (2007) 297-302.

DOI: 10.1016/j.jcrysgro.2007.05.009

Google Scholar

[8] B.L. VanMil, K.K. Lew, R.L. Myers-Ward, R.T. Holm, D.K. Gaskill, C.R. Eddy Jr., L. Wang, P. Zhao, Etch rates near hot-wall CVD growth temperature for Si-face 4H-SiC using H2 and C3H8, J. Cryst. Growth. 311 (2009) 238-243.

DOI: 10.1016/j.jcrysgro.2008.11.030

Google Scholar
