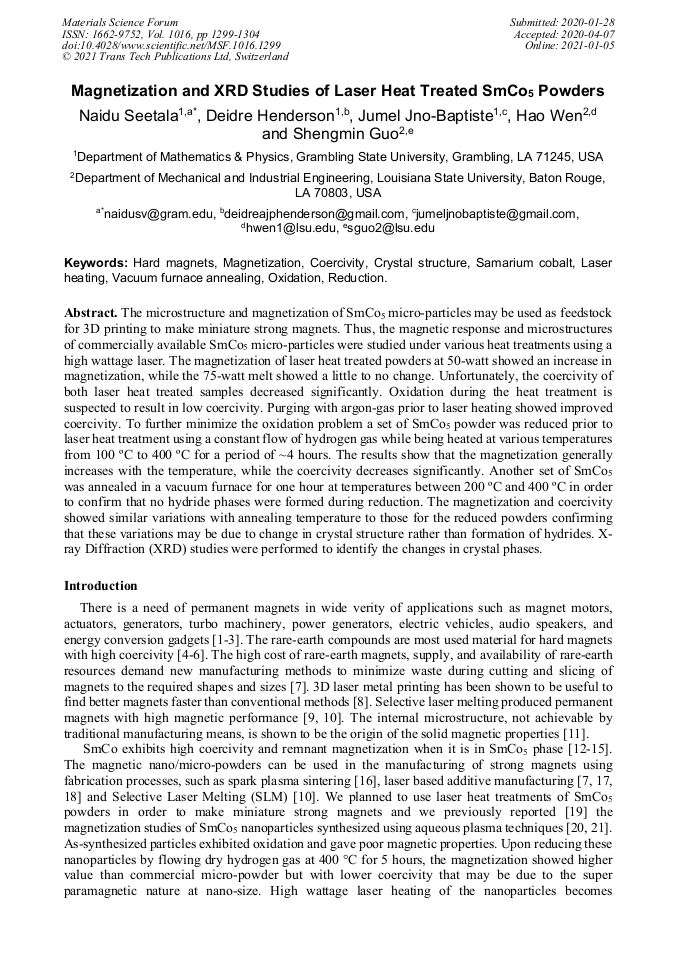

Magnetization and XRD Studies of Laser Heat Treated SmCo₅ Powders

Abstract:

The microstructure and magnetization of SmCo₅ micro-particles may be used as feedstock for 3D printing to make miniature strong magnets. Thus, the magnetic response and microstructures of commercially available SmCo₅ micro-particles were studied under various heat treatments using a high wattage laser. The magnetization of laser heat treated powders at 50-watt showed an increase in magnetization, while the 75-watt melt showed a little to no change. Unfortunately, the coercivity of both laser heat treated samples decreased significantly. Oxidation during the heat treatment is suspected to result in low coercivity. Purging with argon-gas prior to laser heating showed improved coercivity. To further minimize the oxidation problem a set of SmCo₅ powder was reduced prior to laser heat treatment using a constant flow of hydrogen gas while being heated at various temperatures from 100 oC to 400 oC for a period of ~4 hours. The results show that the magnetization generally increases with the temperature, while the coercivity decreases significantly. Another set of SmCo₅ was annealed in a vacuum furnace for one hour at temperatures between 200 oC and 400 oC in order to confirm that no hydride phases were formed during reduction. The magnetization and coercivity showed similar variations with annealing temperature to those for the reduced powders confirming that these variations may be due to change in crystal structure rather than formation of hydrides. X-ray Diffraction (XRD) studies were performed to identify the changes in crystal phases.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 1299-1304
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.1299
• Online since: January 2021
• Authors: Naidu Seetala*, Deidre Henderson, Jumel Jno-Baptiste, Hao Wen, Sheng Min Guo
• Keywords: Coercivity, Crystal Structure, Hard Magnets, Laser Heating, Magnetization, Oxidation, Reduction, Samarium Cobalt, Vacuum Furnace Annealing

References

[1] O. Gutfleisch, M.A. Willard, E. Bruck, C.H. Chen, S.G. Sankar, J.P. Liu, Magnetic materials and devices for the 21st century: stronger, lighter, and more energy efficient, Adv. Mater. 23 (2011) 821-842.

DOI: 10.1002/adma.201002180

[2] J.M.D. Coey, Permanent magnet applications, J. Magn. Magn. Mater. 248 (2002) 441-456.

[3] R. Hilzinger, W. Rodewald, Magnetic materials: fundamentals, products, properties, applications, first ed., Hanau: Vacuumschmelze, (2013).

[4] S Sugimoto, Current status and recent topics of rare-earth permanent magnets, J. Phys. D: Appl. Phys. 44 (2011) 064001.

DOI: 10.1088/0022-3727/44/6/064001

[5] B. Sprecher, Y. Xiao, A. Walton, J. Speight, R. Harris, R. Kleijn, G. Visser, G. J. Kramer, Life cycle inventory of the production of rare earths and the subsequent production of NdFeB rare earth permanent magnets, Environ. Sci. Technol. 48 (2014) 3951-3958.

DOI: 10.1021/es404596q

[6] I. Ozeki, K. Kume, T. Okuno, T. Ozaki, T. Omure, K. Taihaku, T. Yamamoto, Rare earth permanent magnet and method for producing rare earth permanent magnet, U.S. Patent 10269475B2. (2019).

DOI: 10.1007/978-3-642-36388-7_4

[7] M.P. Paranthaman, I.C. Nlebedim, F. Johnson, S.K. McCall, Additive manufacturing of permanent magnets, Mater. Matters 11 (2016) 111-115.

[8] F. Meng, R.P. Chaudhary, K. Gandha, I.C. Nlebedim, A. Palasyuk, E. Simsek, M.J. Kramer, R.T. Ott, Rapid assessment of the Ce-Co-Fe-Cu system for permanent magnetic applications, JOM 70 (2018) 872-878.

DOI: 10.1007/s11837-018-2862-8

[9] J. Jacimovic, F. Binda, L. Herrmann, F. Greuter, J. Genta, M. Calvo, T. Tomse, R. Simon, Net shape 3D printed NdFeB permanent magnet, 2016, arXiv:1611.05332 [physics.ins-det].

DOI: 10.1002/adem.201700098

[10] H. Schleifenbaum, W. Meiners, K. Wissenbach, C. Hinke, Individualized production by means of high-power selective laser melting, Cirp J. Manuf. Sci. Tech. 2 (2010) 161–169.

DOI: 10.1016/j.cirpj.2010.03.005

[11] G. Huang, X. Li, L. Lou, Y. Hua, G. Zhu, M. Li, H. Zhang, J. Xiao, B. Wen, M. Yue, X. Zhang, Engineering bulk, layered, multicomponent nanostructures with high energy density, Small 14 (2018) 1800619.

DOI: 10.1002/smll.201800619

[12] A. Signh, V. Neu, S. Fahler, L. Schultz, B. Holzapfel, Effect of composition on phase formation and magnetic properties of highly coercive Sm-Co films, J. Magn. Magn. Mater. 290-291 (2005) 1259-1262.

DOI: 10.1016/j.jmmm.2004.11.417

[13] L. Ning, L. Shuai, Z. En, W. Lijin, Magnetic property and microstructure of SmCo magnetic recording films, J. Rare Earths 27 (2009) 839-842.

DOI: 10.1016/s1002-0721(08)60346-4

[14] Y. Li, X. L. Zhang, R. Qiu, Y. S. Kang, Synthesis and investigation of SmCo5 magnetic nanoparticles, Coll. Surf. A: Physicochem. Eng. Aspects 313–314 (2008) 621–624.

DOI: 10.1016/j.colsurfa.2007.04.150

[15] Z. Qiu, J. P. Liu, H. Yu, N. Poudyal, G. Han, D. Zeng, and Y. Hong, Atomic diffusion and microstructure of SmCo5 multilayers with high Coercivity, J. Alloys Comp. 733 (2018) 45-52.

DOI: 10.1016/j.jallcom.2017.10.286

[16] Z. Munir, U. Anselmi-Tamburini, The effect of electric field and pressure on the synthesis and consolidation of materials: A review of the spark plasma sintering method, J. Mater. Sci. 41 (2006) 763–777.

DOI: 10.1007/s10853-006-6555-2

[17] S. Huang, P. Liu, A. Mokasdar, L. Hou, Additive manufacturing and its societal impact, Int. J. Adv. Manuf. Tech. 67 (2013) 1191–1203.

DOI: 10.1007/s00170-012-4558-5

[18] W.E. Frazier, Metal additive manufacturing: A review, J. Mater. Eng. Perform. 23 (2014) 1917-1928.

[19] J. Jno-Baptiste, D. Henderson, N. Seetala, S. Guo, H. Wen, C. Wilson, W. Clower, B. Redford, K. Madhavi, Magnetization of SmCo5 – Aqueous plasma synthesized and commercial powders, Proceedings of CIMM Symposium, Baton Rouge, July 2018, pp.117-120.

[20] N. Seetala, D. Henderson, A. Ulrich, C. Wilson, Magnetization studies of aqueous plasma synthesized FeCu micro-particles, Int. J. of Sci. Eng. & Manag. 2 (2017) 139-142.

[21] A.M. Orlov, I. Yavtushenko, D.S. Bodnarskii, N.V. Ufarkina, Production of metal nanoparticles from aqueous solutions in the arc plasma, Technical Physics 58 (2013) 1267-1273.

DOI: 10.1134/s1063784213090211

[22] N. Seetala, D. Henderson, J. Jno-Baptiste, H. Wen, S. Guo, XRD and Magnetization Studies of FePt and SmCo Powders, Proceedings of CIMM Symposium, Baton Rouge, June (2019).

DOI: 10.4028/www.scientific.net/msf.1016.1299

[23] E.M. Kirkpatrick, S.A. Majetich, M.E. McHenry, Magnetic properties of single domain samarium cobalt nanoparticles, IEEE Trans. On Magnetics 32 (1996) 4502-4504.

DOI: 10.1109/20.538911

[24] E.M. Kirkpatrick , S.A. Majetich, M.E. McHenry, Magnetic properties of single domain samarium cobalt nanoparticles, IEEE Tran. Magn. 32 (1996) 4502-4504.

DOI: 10.1109/20.538911

[25] J. Lee, T.Y. Hwang, M.K. Kang, H.B. Cho, J. Kim, N.V. Myung, Y.H. Choa, Synthesis of samarium-cobalt sub-micron fibers and their excellent hard magnetic properties, Front. Chem. 6 (2018) 18-25.

DOI: 10.3389/fchem.2018.00018

[26] A.M. Gabay, M. Marinescu, J.F. Liu, G.C. Hadjipanayis, Deformation-induced texture in nanocrystalline 2:17, 1:5 and 2:7 Sm–Co magnets, J. Magn. Magn. Mater. 321 (2009) 3318–3323.

DOI: 10.1016/j.jmmm.2009.06.011
