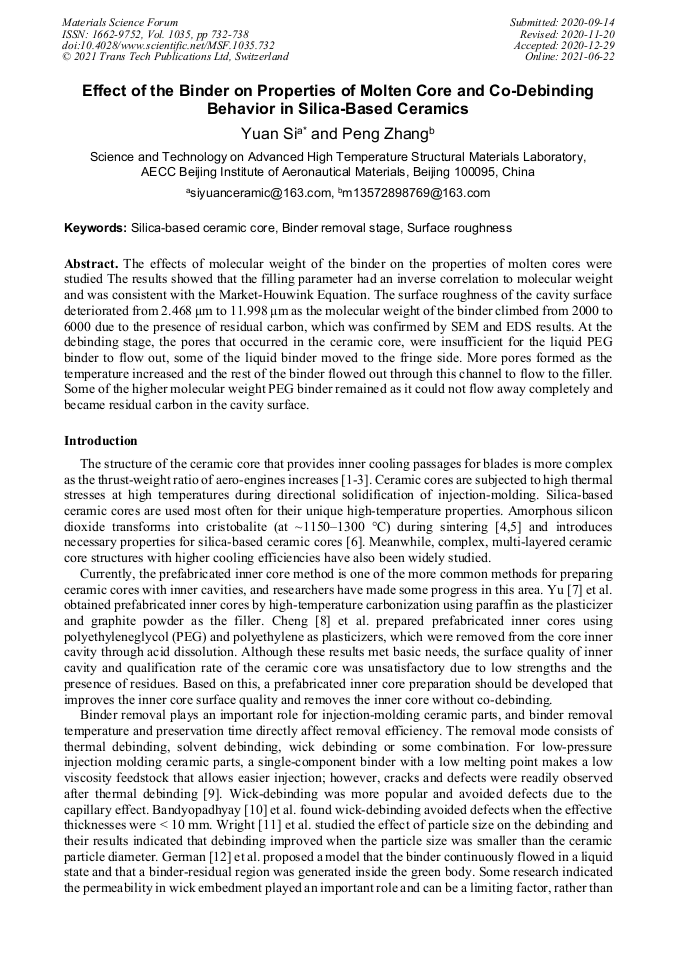

Effect of the Binder on Properties of Molten Core and Co-Debinding Behavior in Silica-Based Ceramics

Abstract:

The effects of molecular weight of the binder on the properties of molten cores were studied The results showed that the filling parameter had an inverse correlation to molecular weight and was consistent with the Market-Houwink Equation. The surface roughness of the cavity surface deteriorated from 2.468 μm to 11.998 μm as the molecular weight of the binder climbed from 2000 to 6000 due to the presence of residual carbon, which was confirmed by SEM and EDS results. At the debinding stage, the pores that occurred in the ceramic core, were insufficient for the liquid PEG binder to flow out, some of the liquid binder moved to the fringe side. More pores formed as the temperature increased and the rest of the binder flowed out through this channel to flow to the filler. Some of the higher molecular weight PEG binder remained as it could not flow away completely and became residual carbon in the cavity surface.

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 732-738
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.732
• Online since: June 2021
• Authors: Yuan Si*, Peng Zhang
• Keywords: Binder Removal Stage, Silica-Based Ceramic Core, Surface Roughness

References

[1] Wei Q, Zhong J W, Xu Z L, et al, Microstructure evolution and mechanical properties of ceramic shell moulds for investment casting of turbine blades by selective laser sintering, Ceram Int. 44(2018) 12088-12097.

DOI: 10.1016/j.ceramint.2018.03.227

[2] Wereszczak A A, Breder K, Ferber M K, et al, Dimensional changes and creep of silica core ceramics used in investment casting of superalloys, J Mater Sci. 37(2002) 4235-4245.

[3] Liang J J, Lin Q H, Zhang X, et al, Effects of Alumina on Cristobalite Crystallization and Properties of Silica-Based Ceramic Cores, J Mater Sci & Tech. 33(2017) 204-209.

[4] Qin Y X, Pan W, Effect of silica sol on the properties of alumina-based ceramic core composites, Mater Sci Eng A-Sruct. 508(2009) 71-75.

DOI: 10.1016/j.msea.2008.12.016

[5] Kazemi A, Faghini-sani MA, Alizadeh HR, Investigation on cristobalite crystallization in silica-based ceramic cores for investment casting, J Eur Ceram Soc. 33(2013) 3397-3402.

DOI: 10.1016/j.jeurceramsoc.2013.06.025

[6] Kim Y T, Yeo J, Lee S, et al, Influence of silicon carbide as a mineralizer on mechanical and thermal properties of silica-based ceramic cores, Ceram Int. 42(2016) 14738-14742.

DOI: 10.1016/j.ceramint.2016.06.100

[7] Yang Z G, Zhao Z J, Yu J B, et al, Effect of silicone resin as precursor and binder on the properties of alumina-based ceramic cores using ball-shaped powders, Ceram Int. 45(2019) 2170-2177.

DOI: 10.1016/j.ceramint.2018.10.127

[8] Cheng T, Li J H, Zhang L J, Preparation and application of a water-soluble ceramic core plasticizer, China. 108484178a, (2018).

[9] Gorjan L, Dakskobler A, Kosmac T, Partial wick-debinding of low pressure powder injection-moulded ceramic parts, J Eur Ceram Soc. 30(2010) 3013-3021.

DOI: 10.1016/j.jeurceramsoc.2010.07.011

[10] Bandyopadhyay G, French KW, Injection-molded ceramics: Critical aspects of the binder removal process and component fabrication, J Eur Ceram Soc. 11(1993) 23-34.

DOI: 10.1016/0955-2219(93)90055-v

[11] Wright JK, Evans JRG, Removal of organic vehicle from moulded ceramic bodies by capillary action, Cream Int. 17(1991) 79-87.

DOI: 10.1016/0272-8842(91)90014-q

[12] German RM, Theory of thermal debinding, Int J Powder Metall. 23(1987) 237-245.

[13] Somasundram IM, Cendrowitz A, Wilson DI, et al, Phenomenological study and modelling of wick debinding, Chem Eng Sci. 63(2008) 3802-3809.

DOI: 10.1016/j.ces.2008.04.040
