The Effect of Vacuum Pressure during Autoclave Curing on Tensile Strength of Epoxy Composite Reinforced Natural Fiber of Cordyline australis with Sea Water Surface Treatment

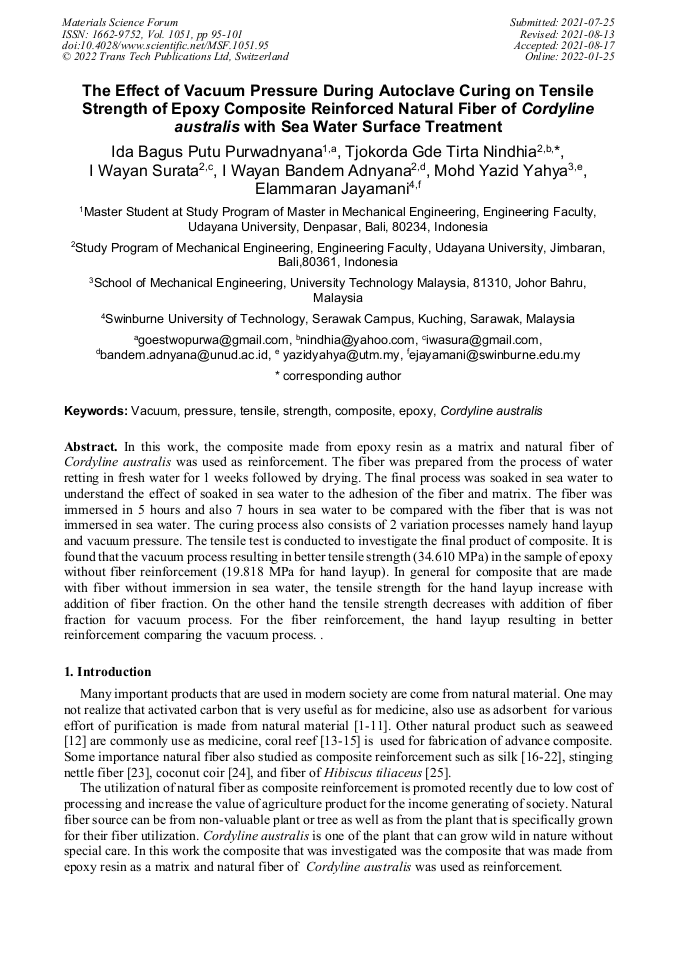

Article Preview

Abstract:

In this work the composite made from epoxy resin as a matrix and natural fiber of Cordyline australis was used as reinforcement. The fiber was prepared from the process of water retting in fresh water for 1 weeks followed by drying. The final process was soaked in sea water to understand the effect of soaked in sea water to the adhesion of the fiber and matrix. The fiber was immersed in 5 hour and also 7 hours in sea water to be compared with the fiber that is was not immersed in sea water. The curing process also consist of 2 variation processes namely hand layup and vacuum pressure. The tensile test is conducted to investigate the final product of composite. It is found that the vacuum process resulting better tensile strength (34.610 MPa) in the sample of epoxy without fiber reinforcement (19.818 MPa for hand layup). In general for composite that are made with fiber without immersion in sea water, the tensile strength for the hand layup increase with addition of fiber fraction. In the other hand the tensile strength is decrease with addition of fiber fraction for vacuum process. For the fiber reinforcement, the hand layup resulting in better reinforcement comparing the vacuum process. .

You might also be interested in these eBooks

Advanced Materials Science IV

Info:

Periodical:

Materials Science Forum (Volume 1051)

Pages:

95-101

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1051.95

Citation:

Cite this paper

Online since:

January 2022

Authors:

Ida Bagus Putu Purwadnyana, Tjokorda Gde Tirta Nindhia*, I Wayan Surata, I Wayan Bandem Adnyana, Mohd Yazid Yahya, Elammaran Jayamani

Keywords:

Composite, Cordyline australis, Epoxy, Pressure, Strength, Tensile, Vacuum

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2022 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] D.N.K.P. Negara, T. G.T. Nindhia, I W. Surata, F.. Hidajat, M. Sucipta, (2019), Surfaces and Interfaces, 16 (2019) 22-28.

DOI: 10.1016/j.surfin.2019.04.002

[2] D.N.K.P. Negara, T.G.T. Nindhia, I W. Surata, F. Hidajat, M. Sucipta, Textural Characteristics of Activated Carbons Derived from Tabah Bamboo Manufactured by Using H3PO4 Chemical Activation, Materials Today: Proceedings, Vol. 22 part 2, (2020) 148-155.

DOI: 10.1016/j.matpr.2019.08.030

[3] D.N.K.P. Negara, T.G.T. Nindhia, I W. Surata, M. Sucipta, Development and Application of Bamboo Activated Carbons and Their Potency as Adsorbent Material for Adsorbed Natural Gas (ANG); An Overview, Key Engineering Materials, Vol. 705 (2016) 126-130.

DOI: 10.4028/www.scientific.net/kem.705.126

[4] D.N.K.P. Negara, T.G.T. Nindhia, I W. Surata, M. Sucipta, Chemical, Strength and Microstructure Characterization of Balinese Bamboos as Activated Carbon Source for Adsorbed Natural Gas Application, IOP Conf. Ser.: Mater. Sci. Eng. 201 012033 (2017) 1-6.

DOI: 10.1088/1757-899x/201/1/012033

[5] D.N.K.P. Negara, T.G.T. Nindhia, I W. Surata, M. Sucipta, F. Hidayat, Activated Carbon Characteristics of Tabah Bamboo that Physically Activated Under Different Activation Time, IOP Conf. Series: Materials Science and Engineering, 539, 012011 (2019) 1-6.

DOI: 10.1088/1757-899x/539/1/012011

[6] M. Sucipta, D.N.K.P. Negara, T.G.T. Nindhia, and I W. Surata, Characteristic of Ampel bamboo as biomass Energy source Potential in Bali, IOP Conf. Series: Materials Science and Engineering 201,0120329 (2017) 1-5.

DOI: 10.1088/1757-899x/201/1/012032

[7] I M. Astika, D. N. K. P. Negara, C. I. P. K. Kencanawati, T. G. T. Nindhia and F. Hidajat, Proximate and morphology properties of swat bamboo activated carbon carburized under different carbonization temperature, IOP Conf. Series: Materials Science and Engineering 539, 012010 (2019) 1-6.

DOI: 10.1088/1757-899x/539/1/012010

[8] D.N.K.P. Negara, T. G. T. Nindhia, Lusiana, I M. Astika, C.I.P.K. Kencanawati. Development and Characterization of activated carbons Derived from Lignocwellulosic Material, Vol. 988 (2020)80-86.

DOI: 10.4028/www.scientific.net/msf.988.80

[9] I P. H. Wangsa, T.G.T. Nindhia, D.N.K.P. Negara, I W. Surata, Performance of activated Carbon Made from Gigantochloa Verticillata Bamboo for Biogas Purification, Materials Science Forum,1013(2020)75-79.

DOI: 10.4028/www.scientific.net/msf.1013.75

[10] M. Sucipta, D.N.K. P. Negara, T.G. T. Nindhia and I W. Surata, Morphology and Surface Characteristic of Bamboo Activated Carbon Chemically Activated under Diferent Immersion Time, Int. J. Global Energy Issues, 43, 2/3, (2021)135-146.

DOI: 10.1504/ijgei.2021.115139

[11] D.N. K. P.Negara, T.G.T. Nindhia, M. Sucipta, I W. Surata, K.S. Astrawan and I P. H. Wangsa, Simultaneous adsorption of motorcycle emissions, through bamboo-activated carbon, Int. J. Global Energy Issues, 43, 2/3(2021)199-210.

DOI: 10.1504/ijgei.2021.115144

[12] I. Stranska-Zachariasova, I. Kurniatanty, H. Gbelcova, M. Jiru, J. Rubert, T.G.T. Nindhia, C. W. D'Acunto, S.H. Sumarsono, M.I. Tan, J. Hajslova and T. Ruml, Bioprospecting of Turbinaria Macroalgae as a Potential Source of Health Protective Compounds, Chemistry and Biodiversity, vol. 14,2 ( 2017)pp.1-15.

DOI: 10.1002/cbdv.201600192

[13] I W. Surata, T.G.T. Nindhia, W.E. Yolanda and I G. R. Trisna, Properties of hybrid composites using coral reefs waste and coconut fiber Materials Science and Engineering, 508, 012059 (2019), 1-5.

DOI: 10.1088/1757-899x/508/1/012059

[14] I W. Surata, T. G.T. Nindhia, W.E. Yolanda, Grain size effect on tensile and flexural strength of particulate composites reinforced with Acropora waste, Materials Today: Proceedings 22 (2020) 156–161.

DOI: 10.1016/j.matpr.2019.08.031

[15] A.R. Pamungkas, I W. Surata and T.G.T. Nindhia, The Tensile and Flexural Forces of Acropora Reef Waste Particulate-Enchanced Polyester Composites, Key Engineering Materials, Vol. 896, (2021) 21-27.

DOI: 10.4028/www.scientific.net/kem.896.21

[16] T.G.T. Nindhia, Y. Koyoshi, A. Kaneko, H. Sawada, M. Ohta, S. Hirai, M. Uo, Hydroxyapatite-silk functionally graded material by pulse electric current sintering, Trends in Biomaterials and Artificial Organs, vol.22, 1, (2008)28-33.

[17] T.S. Nindhia, T.G.T. Nindhia, I W. Surata, Z. Knejzlik, and T. Ruml, Effect of feeding with herb of Erythrina variegata to biocompatibility of the cocoon fiber of wild silk moth attacus atlas for future application as biocompatible of silk sutures, Asian Journal of Pharmaceutical and Clinical Research vol.11.Special Issue 3(2018) pp.20-23.

DOI: 10.22159/ajpcr.2018.v11s3.30019

[18] T. G. T. Nindhia, Z. Knejzlik, T. Ruml, I W. Surata and T. S. Nindhia, Indigenous Indonesian Wild Silkworm Cocoon of Attacusatlas as Biocompatible Film Biomaterial, Materials Science and Engineering 204 (2017) 012011, pp.1-5.

DOI: 10.1088/1757-899x/204/1/012011

[19] T.S. Nindhia T.G.T. Nindhia, I W. Surata, Z. Knejzlik, T. Ruml, Effect of feeding with herb of Erythrina variegata to biocompatibility of the cocoon fiber of wild silk moth Attacus atlas for future application as biocompatible of silk sutures, Asian Journal of Pharmaceutical and Clinical Research, vol.11. Special Issue 3(2018) 20-23.

DOI: 10.22159/ajpcr.2018.v11s3.30019

[20] T. G. T. Nindhia, Z. Knejzlik, T. Ruml, I W. Surata and T.S. Nindhia, Indigenous Indonesian Wild Silkworm Cocoon of Attacus atlas as Biocompatible Film Biomaterial, Materials Science and Engineering, vol. 204, 1, (2017) 1-5.

DOI: 10.1088/1757-899x/204/1/012011

[21] T.G.T. Nindhia, Z. Knejzlik, T.S. Nindhia, I W. Surata and T. Ruml, Biocompatibility, Morphology, and Chemical Elements Composition of Indigenous Indonesian Wild Silkmoth Cocoon for Future Application in the Field of Biomaterial, Materials Science and Engineering 761, 012006 (2020), pp.1-6.

DOI: 10.1088/1757-899x/761/1/012006

[22] A.R. Pamungkas, T.G.T. Nindhia, I W. Surata, T.S. Nindhia, Z. Knejzlik,and T. Ruml, Tensile strength of single fiber of Antheraea pernyi cocoon prepared by various protocols, Vol. 1013 (2020) 69-74.

DOI: 10.4028/www.scientific.net/msf.1013.69

[23] I G.P.A. Suryawan, N.P.G. Suardana, I N. S. Winaya, I W. B. Suyasa, T.G. T. Nindhia, Study of stinging nettle (urtica dioica l.) Fibers reinforced green composite materials : a review, Materials Science and Engineering,vol. 201, 1, (2017) 1-7.

DOI: 10.1088/1757-899x/201/1/012001

[24] A.Widnyana, I G. Rian, I W. Surata, T.G.T. Nindhia, Tensile Properties of coconut coir single fiber with alkali treatment and reinforcement effect on unsaturated polyester polymer, Vol. 22, Part 2, (2020) 300-305.

DOI: 10.1016/j.matpr.2019.08.155

[25] I W. Surata, T.G.T. Nindhia and D.M. Widagdo, Promoting natural fiber from bark of Hibiscus tiliaceus as rope to reduce marine pollution from microplastic fiber yield from synthetic rope, E3S Web of Conferences 158, 04007 (2020) 1-4.

DOI: 10.1051/e3sconf/202015804007

[26] Sudarisman and Ian J. Davies, Influence of Compressive Pressure, Vacuum Pressure, and Holding Temperature Applied During Autoclave Curing on the Microstructure of Unidirectional CFRP Composites, Advanced Materials Research Vols. 41-42 (2008)323-328.

DOI: 10.4028/www.scientific.net/amr.41-42.323

[27] M.R. Ishak, Z. Leman, S.M. Sapuan, M.Y. Salleh and S. Misri, The Effect of Sea Water Treatment on The Impact and Flexural Strength of Sugar Palm Fibre Reinforced Epoxy Composites, International Journal of Mechanical and Materials Engineering, Vol. 4, 3, (2009)316-320.
