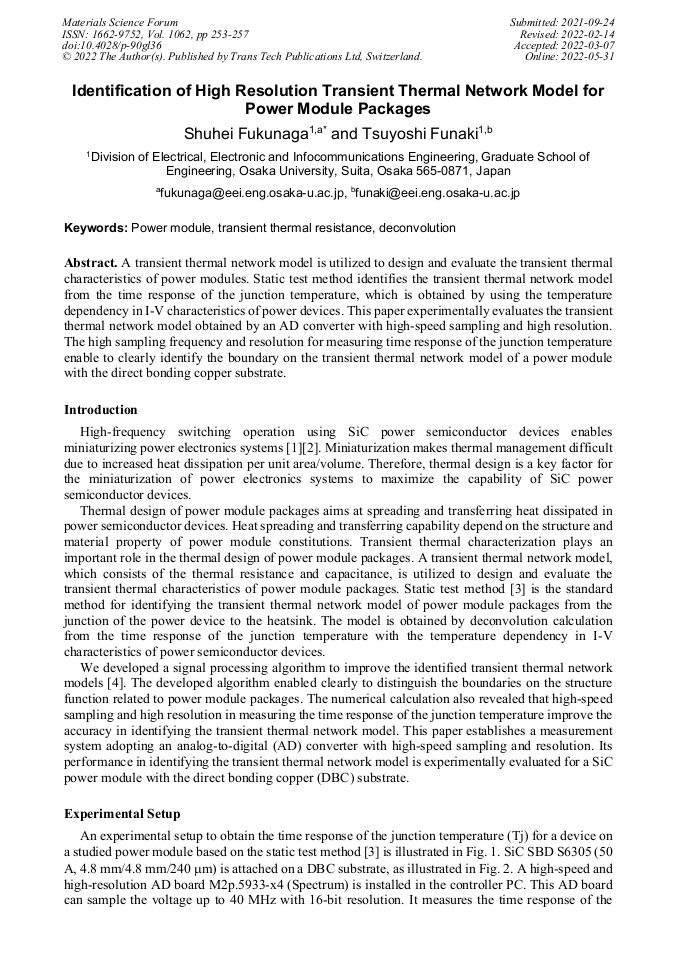

Identification of High Resolution Transient Thermal Network Model for Power Module Packages

Abstract:

A transient thermal network model is utilized to design and evaluate the transient thermal characteristics of power modules. Static test method identifies the transient thermal network model from the time response of the junction temperature, which is obtained by using the temperature dependency of I-V characteristics for power devices. This paper experimentally evaluates the effect of the sampling frequency and the resolution of the AD conversion on the accuracy of the obtained transient thermal network model. The high sampling frequency and the high resolution in the obtained time response of the junction temperature enable to clearly identify the transient thermal network model of the power module with the direct bonding copper substrate.
