Filling-Design Effect of Powder Source in the Crucible on SiC Single-Crystal Growth

Article Preview

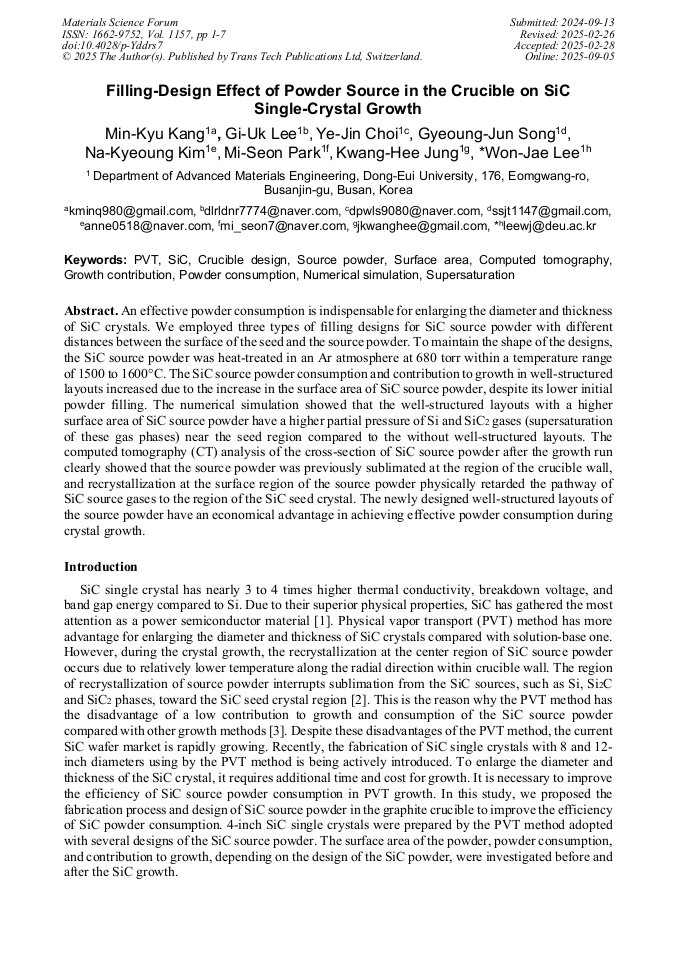

Abstract:

An effective powder consumption is indispensable for enlarging the diameter and thickness of SiC crystals. We employed three types of filling designs for SiC source powder with different distances between the surface of the seed and the source powder. To maintain the shape of the designs, the SiC source powder was heat-treated in an Ar atmosphere at 680 torr within a temperature range of 1500 to 1600°C. The SiC source powder consumption and contribution to growth in well-structured layouts increased due to the increase in the surface area of SiC source powder, despite its lower initial powder filling. The numerical simulation showed that the well-structured layouts with a higher surface area of SiC source powder have a higher partial pressure of Si and SiC2 gases (supersaturation of these gas phases) near the seed region compared to the without well-structured layouts. The computed tomography (CT) analysis of the cross-section of SiC source powder after the growth run clearly showed that the source powder was previously sublimated at the region of the crucible wall, and recrystallization at the surface region of the source powder physically retarded the pathway of SiC source gases to the region of the SiC seed crystal. The newly designed well-structured layouts of the source powder have an economical advantage in achieving effective powder consumption during crystal growth.

You have full access to the following eBook

Info:

* - Corresponding Author

[1] P. J. Wellmann, Review of SiC crystal growth technology, Semicond. Sci. Technol. 33 (2018) 103001

DOI: 10.1088/1361-6641/aad831

Google Scholar

[2] X. Liu, B. Y. Chen, L. X. Song, E. W. Shi, Z. Z. Chen, The behavior of powder sublimation in the long-term PVT growth of SiC crystals, J. Crys. Growth. 312, 9 (2010) 1486-1490

DOI: 10.1016/j.jcrysgro.2010.01.029

Google Scholar

[3] H. Norihiro, et al., High-speed, high-quality crystal growth of 4H-SiC by high-temperature gas source method, Appl. Phys. Express. 7 (2014) 065502

DOI: 10.7567/apex.7.065502

Google Scholar

[4] T. Hidehiko, Silicon carbide powder and sintered materials, J. Ceram. Soc. Japan. 119, 3 (2011) 218-233

DOI: 10.2109/jcersj2.119.218

Google Scholar

[5] I.G. Yeo, et al., The quality investigation of 6H-SiC crystals grown by a conventional PVT method with various SiC powders, TEEM. 11, 2 (2010) 61-64

DOI: 10.4313/teem.2010.11.2.061

Google Scholar

[6] Q. Chen, J. Yan, V. Prasad, Application of flow-kinetics model to the PVT growth of SiC crystals, J. Crys. Growth. 303 (2007) 357-361

DOI: 10.1016/j.jcrysgro.2006.11.186

Google Scholar

[7] X. Wang, D. Cai, H. Zhang, Increase of SiC sublimation growth contribution by optimizing of powder packaging, J. Crys. Growth. 305 (2007) 122-132

DOI: 10.1016/j.jcrysgro.2007.03.022

Google Scholar
