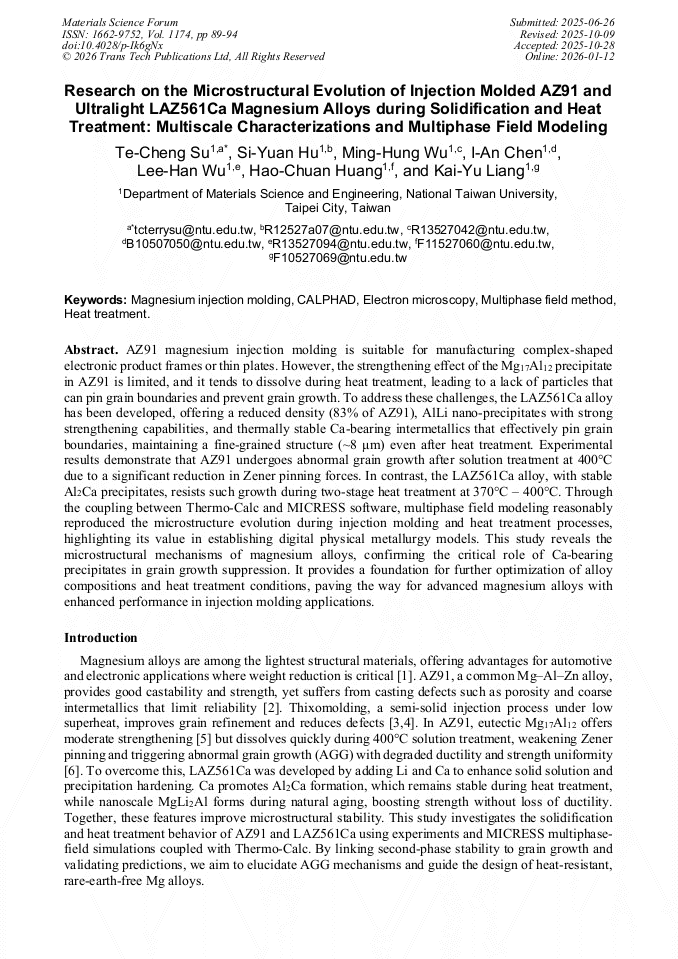

Research on the Microstructural Evolution of Injection Molded AZ91 and Ultralight LAZ561Ca Magnesium Alloys during Solidification and Heat Treatment: Multiscale Characterizations and Multiphase Field Modeling

Abstract:

AZ91 magnesium injection molding is suitable for manufacturing complex-shaped electronic product frames or thin plates. However, the strengthening effect of the Mg₁₇Al₁₂ precipitate in AZ91 is limited, and it tends to dissolve during heat treatment, leading to a lack of particles that can pin grain boundaries and prevent grain growth. To address these challenges, the LAZ561Ca alloy has been developed, offering a reduced density (83% of AZ91), AlLi nanoprecipitates with strong strengthening capabilities, and thermally stable Ca-bearing intermetallics that effectively pin grain boundaries, maintaining a fine-grained structure (~8 μm) even after heat treatment. Experimental results demonstrate that AZ91 undergoes abnormal grain growth after solution treatment at 400°C due to a significant reduction in Zener pinning forces. In contrast, the LAZ561Ca alloy, with stable Al₂Ca precipitates, resists such growth during two-stage heat treatment at 370°C – 400°C. Through the coupling between Thermo-Calc and MICRESS software, multiphase field modeling reasonably reproduced the microstructure evolution during injection molding and heat treatment processes, highlighting its value in establishing digital physical metallurgy models. This study reveals the microstructural mechanisms of magnesium alloys, confirming the critical role of Ca-bearing precipitates in grain growth suppression. It provides a foundation for further optimization of alloy compositions and heat treatment conditions, paving the way for advanced magnesium alloys with enhanced performance in injection molding applications.

• Periodical: Materials Science Forum (Volume 1174)
• Pages: 89-94
• DOI: https://doi.org/10.4028/p-Ik6gNx
• Online since: January 2026
• Authors: Te Cheng Su*, Si Yuan Hu, Ming Hung Wu, I An Chen, Lee Han Wu, Hao Chuan Huang, Kai Yu Liang
• Keywords: CALPHAD, Electron Microscopy, Heat Treatment, Magnesium Injection Molding, Multiphase Field Method

References

[1] A.A. Luo, Magnesium casting technology for structural applications, J. Magnes. Alloy. 1 (2013) 2-22.

[2] C.J. Lin, L. Peng, J.W. Xian, Q. Li, C.M. Gourlay, Eutectic solidification in Mg-9Al-0.7Zn: From divorced to coupled growth, J. Alloys Compd. 938 (2023) 168571.

DOI: 10.1016/j.jallcom.2022.168571

[3] F. Czerwinski, Magnesium injection molding, Springer-Verlag US, 2008.

[4] T.Y. Lai, S.Y. Hu, Y.Y. Kuo, T.C. Su, Heat-Treatment Characteristics and Structure-Property Relationships of Thixomolded AZ91 and Ultralight LAZ771 Magnesium Alloys, Solid State Phenom. 347 (2023) 11-16.

DOI: 10.4028/p-lfax9v

[5] C.M. Cepeda-Jimenez, M. Castillo-Rodriguez, M.T. Perez-Prado, Origin of the low precipitation hardening in magnesium alloys, Acta Mater. 165 (2019) 164-176.

DOI: 10.1016/j.actamat.2018.11.044

[6] P.R. Rios, Abnormal grain growth development from uniform grain size distributions, Acta Mater. 45 (1997) 1785-1789.

DOI: 10.1016/s1359-6454(96)00284-4

[7] I. Arganda-Carreras, V. Kaynig, C. Rueden, K.W. Eliceiri, J. Schindelin, A. Cardona, H.S. Seung, Trainable Weka Segmentation: a machine learning tool for microscopy pixel classification, Bioinformatics 33 (2017) 2424-2426.

DOI: 10.1093/bioinformatics/btx180

[8] M. Hillert, On the theory of normal and abnormal grain growth, Acta Metall. 13 (1965) 227-238.

DOI: 10.1016/0001-6160(65)90200-2

[9] Z. Gao Huang, Mechanical and thermodynamics properties of Al2Ca and Mg2Ca under various pressure: A first principle study, Mater. Express 11 (2021) 1571-1578.

DOI: 10.1166/mex.2021.2064
