Comparison of Pd-42Cu-10Ni and Pd-30Cu-29.5Ag-0.5Zn as Probe Material in Interfacial Reaction with Sn

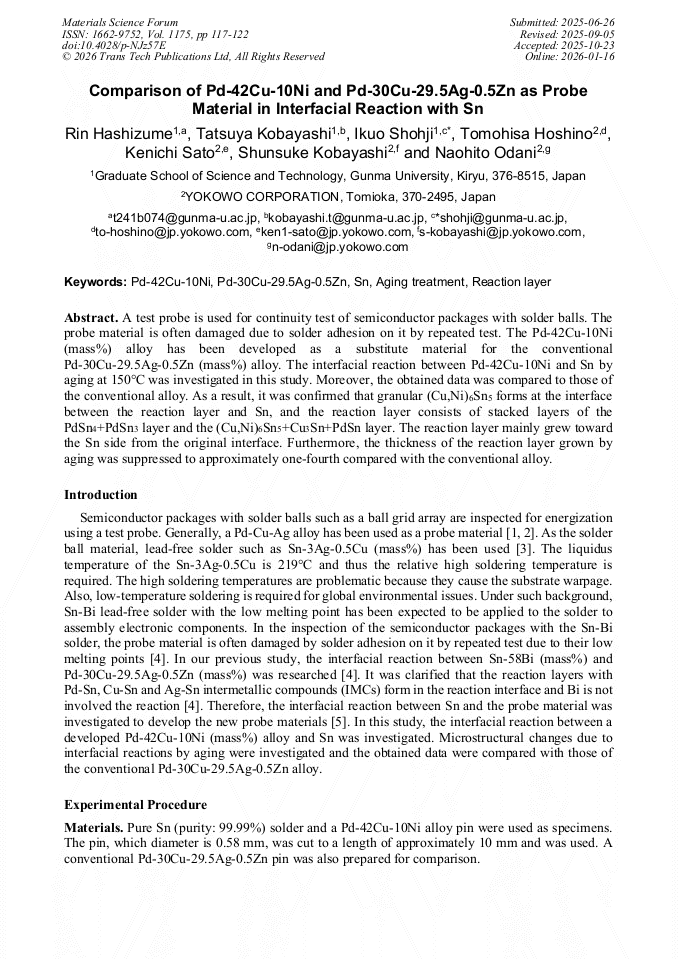

Article Preview

Abstract:

A test probe is used for continuity test of semiconductor packages with solder balls. The probe material is often damaged due to solder adhesion on it by repeated test. The Pd-42Cu-10Ni (mass%) alloy has been developed as a substitute material for the conventional Pd-30Cu-29.5Ag-0.5Zn (mass%) alloy. The interfacial reaction between Pd-42Cu-10Ni and Sn by aging at 150°C was investigated in this study. Moreover, the obtained data was compared to those of the conventional alloy. As a result, it was confirmed that granular (Cu,Ni)6Sn5 forms at the interface between the reaction layer and Sn, and the reaction layer consists of stacked layers of the PdSn4+PdSn3 layer and the (Cu,Ni)6Sn5+Cu3Sn+PdSn layer. The reaction layer mainly grew toward the Sn side from the original interface. Furthermore, the thickness of the reaction layer grown by aging was suppressed to approximately one-fourth compared with the conventional alloy.

You might also be interested in these eBooks
Alloys View Preview

Info:

Periodical:

Materials Science Forum (Volume 1175)

Pages:

117-122

DOI:

https://doi.org/10.4028/p-NJz57E

Citation:

Cite this paper

Online since:

January 2026

Authors:

Rin Hashizume*, Tatsuya Kobayashi, Ikuo Shohji, Tomohisa Hoshino, Kenichi Sato, Shunsuke Kobayashi, Naohito Odani

Keywords:

Aging Treatment, Pd-30Cu-29.5Ag-0.5Zn, Pd-42Cu-10Ni, Reaction Layer, Sn

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] H. Watanabe, R. Koitabashi, C. Iwamoto, Microstructure and mechanical strength of Ag-Cu-Pd alloy, Proc. of 26th Symposium on Microjoining and Assembly Technology in Electronics (2020) 357-360.

Google Scholar

[2] C. Iwamoto, N. Adachi, F. Watanabe, Microstructure evolution in Cu-Pd-Ag alloy wires during heat treatment, Metallurgical and Materials Transactions A 49 (2018) 4947-4955.

DOI: 10.1007/s11661-018-4800-3

Google Scholar

[3] J. Wang, S. Xue, P. Zhang, P. Zhai, Y. Tao, The reliability of lead-free solder joint subjected to special environment: a review, Journal of Materials Science: Materials in Electronics 30 (2019) 9065-9086.

DOI: 10.1007/s10854-019-01333-w

Google Scholar

[4] K. Watarai, I. Shohji, T. Kobayashi, T. Hoshino, K. Sato, S. Kobayashi, N. Odani, Growth kinetics of reaction layer formed on boundary between Sn-58Bi Solder and probe pin for semiconductor package test, Journal of Smart Processing 11 (2022) 188-193.

DOI: 10.7791/jspmee.11.188

Google Scholar

[5] R. Hashizume, T. Kobayashi, I. Shohji, T. Hoshino, K. Sato, S. Kobayashi, N. Odani, Inhibitory effect of interfacial reaction of Pd-Cu-Ni probe for semicondcutor inspection with Sn, Proc. of 31st Symposium on Microjoining and Assembly Technology in Electronics (2025) 373-377.

Google Scholar

[6] K. Watarai, I. Shohji, T. Kobayashi, T. Hoshino, K. Sato, N. Odani, S. Kobayashi, Development of probe material to suppress interfacial reaction with Sn-58Bi solder, Proc. of 29th Symposium on Microjoining and Assembly Technology in Electronics (2023) 146-151.

DOI: 10.7791/jspmee.11.188

Google Scholar
