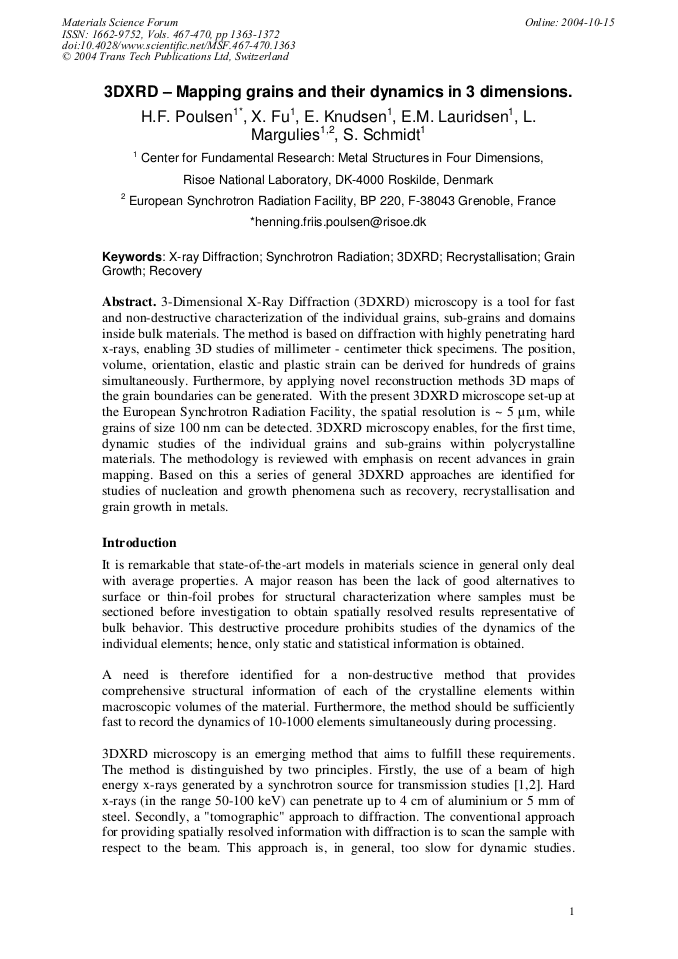

3DXRD – Mapping Grains and Their Dynamics in 3 Dimensions

Abstract:

3-Dimensional X-Ray Diffraction (3DXRD) microscopy is a tool for fast and non-destructive characterization of the individual grains, sub-grains and domains inside bulk materials. The method is based on diffraction with highly penetrating hard x-rays, enabling 3D studies of millimeter - centimeter thick specimens. The position, volume, orientation, elastic and plastic strain can be derived for hundreds of grains simultaneously. Furthermore, by applying novel reconstruction methods 3D maps of the grain boundaries can be generated. With the present 3DXRD microscope set-up at the European Synchrotron Radiation Facility, the spatial resolution is ~ 5 µm, while grains of size 100 nm can be detected. 3DXRD microscopy enables, for the first time, dynamic studies of the individual grains and sub-grains within polycrystalline materials. The methodology is reviewed with emphasis on recent advances in grain mapping. Based on this a series of general 3DXRD approaches are identified for studies of nucleation and growth phenomena such as recovery, recrystallisation and grain growth in metals.

• Periodical: Materials Science Forum (Volumes 467-470)
• Pages: 1363-1372
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.467-470.1363
• Online since: October 2004
• Authors: Henning Friis Poulsen, Xing Fu, Erik Knudsen, Erik M. Lauridsen, L. Margulies, S. Schmidt
• Keywords: 3DXRD, Grain Growth, Recovery, Recrystallization, Synchrotron Radiation (XRD), X-Ray Diffraction (XRD)

References

[1] R. Bouchard, D. Hupfeld, T. Lippmann, J. Neuefeind, H. -B. Neumann, H. F. Poulsen, U. Rütt, T. Schmidt, J. R. Schneider, J. Sussenbach, and M. von Zimmermann: J. Synch. Rad. 5 (1998), p.90.

DOI: 10.1107/s090904959701457x

[2] H. F. Poulsen, S. Garbe, T. Lorentzen, D. Juul Jensen, F. W. Poulsen, N. H. Andersen et al.: J. Synch. Rad. 4 (1997), pp.147-10.

[3] E.M. Lauridsen, S. Schmidt, R.M. Suter, and H.F. Poulsen: J. Appl. Cryst. 34 (2001), p.744.

[4] H.F. Poulsen, S. F. Nielsen, E. M. Lauridsen, S. Schmidt, R. M. Suter, U. Lienert, L. Margulies, T. Lorentzen and D. Juul Jensen: J. Appl. Cryst. 34 (2001), p.751.

DOI: 10.1107/s0021889801014273

[5] H.F. Poulsen and S. Schmidt: J. Appl. Cryst. 36 (2003), p.319.

[6] H.F. Poulsen and X. Fu: J. Appl. Cryst. 36 (2003), p.1062.

[7] T. Markussen, X. Fu, L. Margulies, E. M. Lauridsen, S. F. Nielsen, S. Schmidt, and H. F. Poulsen: J. Appl. Cryst. 37 (2004), p.96.

[8] H.F. Poulsen: Phil. Mag. 83 (2003), p.2761.

[9] E.M. Lauridsen, D. Juul Jensen, H.F. Poulsen, and U. Lienert: Scripta Mat. 43, (2000), p.561.

[10] E.M. Lauridsen, H.F. Poulsen, S.F. Nielsen and D. Juul Jensen: Acta Mat. 51, (2003), p.4423.

[11] H.F. Poulsen, E.M. Lauridsen, S. Schmidt, L. Margulies, and J.H. Driver: Acta Mat. 51 (2003), p.2517.

[12] C. Gundlach, W. Pantleon, E.M. Lauridsen, L. Margulies, R.D. Doherty and H. F. Poulsen: Scripta Mat. 50, (2004), p.477.

DOI: 10.1016/j.scriptamat.2003.10.034

[13] H. F. Poulsen, J. R. Bowen, and C. Gundlach: Scripta Mat. (in press).

[14] A.W. Larsen, C. Gundlach, H.F. Poulsen, L. Margulies, Q. Xing and D. Juul Jensen: In these Proceedings.

[15] S. Schmidt and D. Juul Jensen: In these Proceedings.

[16] R.A. Vandermeer, E.M. Lauridsen and D. Juul Jensen: In these Proceedings.

[17] B.C. Larson, W. Yang, G.E. Ice, J.D. Budai, and T.Z. Tischler: Nature 415, (2002), p.887.

[18] S. Schmidt, H.F. Poulsen and G.B.M. Vaughan: J. Appl. Cryst. 36 (2003), p.326.

[19] W. Pantleon, H.F. Poulsen, J. Almer, and U. Lienert: Proc. ICSMA-13, Mat. Sci. Eng. A, (in press).

[20] G.T. Herman: Image Reconstructions from Projections. The Fundamentals of Compterized Tomography. (Academic Press, New York 1980).

[21] S.E. Offerman, N.H. van Dijk, J. Sietsma, S. Grigull, E.M. Lauridsen, L. Margulies, H.F. Poulsen, M.T. Rekveldt, and S. van der Zwaag: Science 298, (2002), p.1003.

DOI: 10.1126/science.1076681

[22] L. Margulies, G. Winther, and H.F. Poulsen: Science 291 (2001), p.2392.

[23] H.F. Poulsen, L. Margulies, S. Schmidt, and G. Winther, Acta Mat. 51 (2003), p.3821.

[24] S.F. Nielsen, S. Schmidt, E.M. Lauridsen, H. Yiu, J. Savoie, M. Zeng and D. Juul Jensen: Scripta Mat. 48, (2003), p.513.

DOI: 10.1016/s1359-6462(02)00499-2
