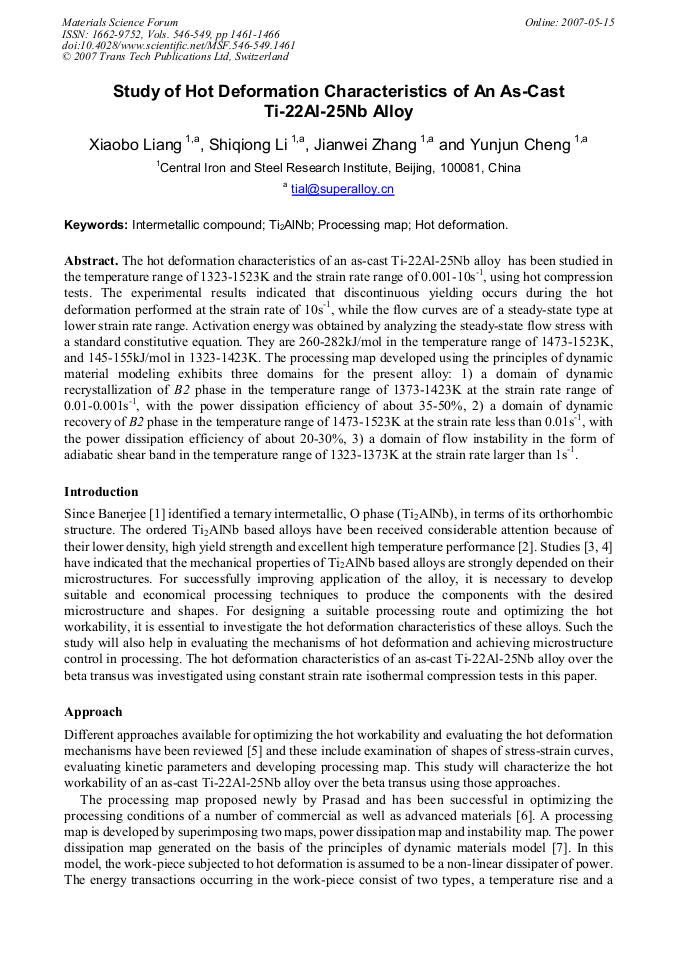

Study of Hot Deformation Characteristics of an As-Cast Ti-22Al-25Nb Alloy

Abstract:

The hot deformation characteristics of an as-cast Ti-22Al-25Nb alloy has been studied in the temperature range of 1323-1523K and the strain rate range of 0.001-10s-1, using hot compression tests. The experimental results indicated that discontinuous yielding occurs during the hot deformation performed at the strain rate of 10s-1, while the flow curves are of a steady-state type at lower strain rate range. Activation energy was obtained by analyzing the steady-state flow stress with a standard constitutive equation. They are 260-282kJ/mol in the temperature range of 1473-1523K, and 145-155kJ/mol in 1323-1423K. The processing map developed using the principles of dynamic material modeling exhibits three domains for the present alloy: 1) a domain of dynamic recrystallization of B2 phase in the temperature range of 1373-1423K at the strain rate range of 0.01-0.001s-1, with the power dissipation efficiency of about 35-50%, 2) a domain of dynamic recovery of B2 phase in the temperature range of 1473-1523K at the strain rate less than 0.01s-1, with the power dissipation efficiency of about 20-30%, 3) a domain of flow instability in the form of adiabatic shear band in the temperature range of 1323-1373K at the strain rate larger than 1s-1.

• Periodical: Materials Science Forum (Volumes 546-549)
• Pages: 1461-1466
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.546-549.1461
• Online since: May 2007
• Authors: Xiao Bo Liang, Shi Qiong Li, Jian Wei Zhang, Yun Jun Cheng
• Keywords: Hot Deformation, Intermetallic Compound (IMC), Processing Map, Ti₂AlNb

References

[1] D. Banerjee, A.K. GoGia, T.K. Nandy and V.A. Josh, Acta Metall, Vol. 36; (1988), p.871.

[2] R.G. Rowe, Y-W. Kim and R.P. Boyer, eds: TMS-AIME, Waarrendale, PA, (1991), p.387.

[3] S.Q. Li, J.W. Zhang, et al., In Proceedings of PRICM4, edited by S. Hanada, Z. Zhong, S.W. Nam, and R.N. Wright, The Japan Institute of Metals, (2001), p.887.

[4] C.J. Boehert, B.S. Majumdar, et al., Metall. Trans., Vol. 28A, (1997), p.309.

[5] Y.V.R.K. Prasad and T. Seshacharyulu, International Materials Reviews, Vol: 43(6) (1998), p.243.

[6] Y.V.R.K. Prasad and T. Seshacharyulu, Materials Science and Engineering, A243 (1998), p.82.

[7] Y.V.R.K. Prasad, H.L. Gegel, S.M. Doraivelu, et al., Metall. Trans., Vol: 15A, (1984), p.1883.

[8] N. Ravichandran, Y.V.R.K. Prasad, Metal. Trans., Vol: 22A (1991), p.2339.

[9] J. Yang. Dissertation of bachelor's degree, Xi'an: Northwestern Polytechnical University, (2005), p.20.

[10] I. Weiss, S.L. Semiatm, Materials Science and Engineering, Vol: A243 (1998), p.46.

[11] I. Philippart, H.J. Rack, Materials Science and Engineering, Vol: A243 (1998), p.196.

[12] T. Sheppard, D.S. Wright, Met. Technol., Vol: 6 (1979), p.215.

[13] Y.V.R.K. Prasad., D.A. Banerjee and P.K. Sagar, Metal. and Mater. Trans., Vol: 27A (1996), p.2593.

[14] P.K. Sagar, D.A. Banerjee and Y.V.R.K. Prasad, Materials Science and Engineering, Vol: A177 (1994), p.185.

[15] Y.V.R.K. Prasad, Ind. Technol., Vol. 28 (1990), p.435.

[16] Y.V.R.K. Prasad and N. Ravichandran, Bull. Mater. Sci., Vol: 14 (1991), p.1241.
