Development of High Strength and High Conductivity Cu-Ag-Zr Alloy

Hoon Cho

doi:10.4028/www.scientific.net/MSF.654-656.1323

Paper Titles

Formability of Pure Titanium Long-Cup by Multi-Stage Deep Drawing
p.1307

Influence of Roll Speed Schedule on Transverse Wall Thickness Evenness of Shell Elongated by Mandrel Mill
p.1311

Effect of Prior Cold-Working on Strength and Electrical Conductivity of Cu-Ti Dilute Alloy Aged in a Hydrogen Atmosphere
p.1315

Simultaneous Enhancement of Electrical Conductivities and Mechanical Properties in Cu-Ti Alloy by Hydrogenation Process
p.1319

Development of High Strength and High Conductivity Cu-Ag-Zr Alloy
p.1323

Cold Joining of Dissimilar Metal Sheets by Shot Peening
p.1327

Study on Powder Metallurgical Preparation of NiCoMnIn Alloy Foam
p.1331

Optimization of the Cooling Process of a Heavy Hydraulic Turbine Runner Band Casting in Heat Treatment
p.1335

Heterogeneous Nucleation and Grain Formation on Spherical and Flat Substrates
p.1339

HomeMaterials Science ForumMaterials Science Forum Vols. 654-656Development of High Strength and High Conductivity...

Development of High Strength and High Conductivity Cu-Ag-Zr Alloy

Abstract:

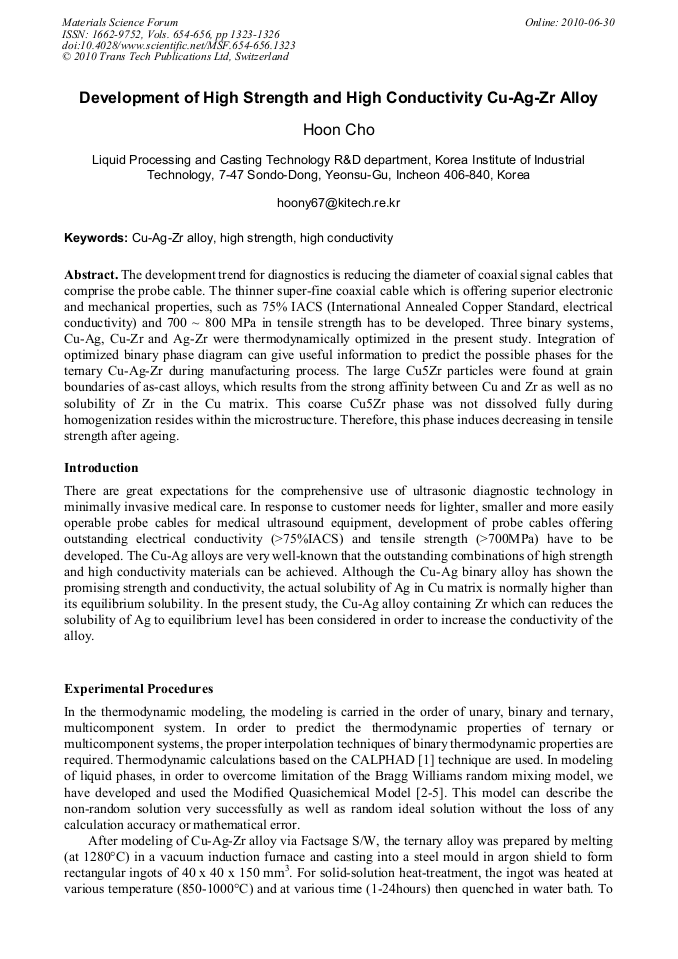

The development trend for diagnostics is reducing the diameter of coaxial signal cables that comprise the probe cable. The thinner super-fine coaxial cable which is offering superior electronic and mechanical properties, such as 75% IACS (International Annealed Copper Standard, electrical conductivity) and 700 ~ 800 MPa in tensile strength has to be developed. Three binary systems, Cu-Ag, Cu-Zr and Ag-Zr were thermodynamically optimized in the present study. Integration of optimized binary phase diagram can give useful information to predict the possible phases for the ternary Cu-Ag-Zr during manufacturing process. The large Cu5Zr particles were found at grain boundaries of as-cast alloys, which results from the strong affinity between Cu and Zr as well as no solubility of Zr in the Cu matrix. This coarse Cu5Zr phase was not dissolved fully during homogenization resides within the microstructure. Therefore, this phase induces decreasing in tensile strength after ageing.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 654-656)

Pages:

1323-1326

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.654-656.1323

Citation:

Cite this paper

Online since:

June 2010

Authors:

Hoon Cho

Keywords:

Cu-Ag-Zr Alloy, High Conductivity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] N. Saunders, A.P. Miodownik, CALPHAD, Pergamon (1998).

Google Scholar

[2] A.D. Pelton, M. Blander, Proceedings of the Second International Symposium on Metallurgical Slags and Fluxes, TMS-AIME, Warrendale, PA, 1984, pp.281-294.

Google Scholar

[3] A.D. Pelton, M. Blander, Metall. Trans. B 17B (1986) 805-815.

Google Scholar

[4] A.D. Pelton, S.A. Decterov, G. Eriksson, C. Robelin, Y. Dessureault, Metall. Mater. Trans. B 31B (2000) 651-659.

Google Scholar

[5] A.D. Pelton, P. Chartrand, Metall. Mater. Trans. A 32 (2001) 1355-1360.

Google Scholar

[6] H. B¨ohm, Z. f. Metallk. 52 (1961) 564-571.

Google Scholar
