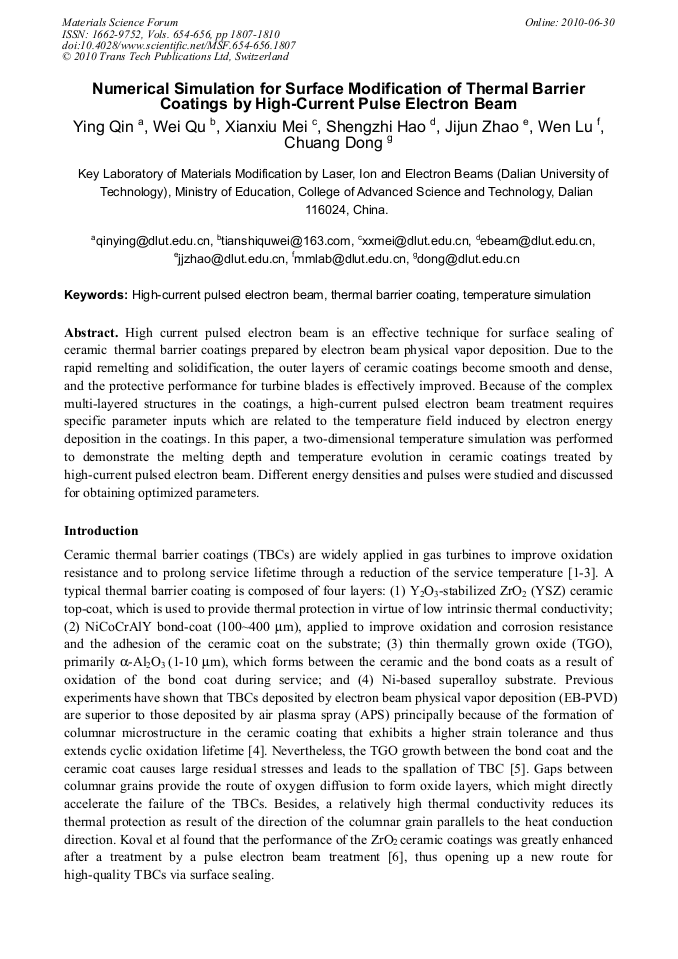

Numerical Simulation for Surface Modification of Thermal Barrier Coatings by High-Current Pulse Electron Beam

Abstract:

High current pulsed electron beam is an effective technique for surface sealing of ceramic thermal barrier coatings prepared by electron beam physical vapor deposition. Due to the rapid remelting and solidification, the outer layers of ceramic coatings become smooth and dense, and the protective performance for turbine blades is effectively improved. Because of the complex multi-layered structures in the coatings, a high-current pulsed electron beam treatment requires specific parameter inputs which are related to the temperature field induced by electron energy deposition in the coatings. In this paper, a two-dimensional temperature simulation was performed to demonstrate the melting depth and temperature evolution in ceramic coatings treated by high-current pulsed electron beam. Different energy densities and pulses were studied and discussed for obtaining optimized parameters.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 654-656)

Pages:

1807-1810

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.654-656.1807

Citation:

Cite this paper

Online since:

June 2010

Authors:

Ying Qin, Wei Qu, Xian Xiu Mei, Sheng Zhi Hao, Ji Jun Zhao, Wen Lu, Chuang Dong

Keywords:

High Current Pulsed Electron Beam (HCPEB), Temperature Simulation, Thermal Barrier Coating (TBC)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R.A. Miller: J. Therm. Spray Technol Vol. 6 (1997), p.35.

Google Scholar

[2] N.P. Padture, M. Gell, and E.H. Jordan: Sci. Vol. 296 (2002), p.280.

Google Scholar

[3] A.G. Evans, D.R. Mumm and J.W. Hutchinson: Mater. Sci. Vol. 46 (2001), p.505.

Google Scholar

[4] X.F. Bi, H.B. Xu and S.K. Gong: Surf. Coat. Technol. Vol. 13 (2000), p.122.

Google Scholar

[5] S. Kuroda and T.W. Clyne: Thin Soild Films. Vol. 200 (1991), p.49.

Google Scholar

[6] N.N. Koval and Y.F. Ivanov: Rus. Phys. J. Vol. 51 (2008), p.505.

Google Scholar

[7] T. Grosdidier, J.X. Zou and N. Stein: Scr. Mater. Vol. 58 (2008), p.1058.

Google Scholar

[8] A.D. Pogrebnjak, Sh.M. Ruzimov and D.L. Alontseva: Vac. Vol. 81 (2007), p.1243.

Google Scholar

[9] C. Dong, A. Wu and S. Hao: Surf. Coat. Technol. Vol. 163 (2003), p.620.

Google Scholar

[10] Y. Qin, C. Dong: J. Vac. Sci. Technol. A Vol. 21 (2003), p. (1934).

Google Scholar

[11] Y. Qin, C. Dong: J. Vac. Sci. Technol. A Vol. 27 (2009), p.430.

Google Scholar

[12] R.E. Taylor, X. Wang and X. Xu: Surf. Coat. Technol. Vol. 120 (1999), p.89.

Google Scholar

[13] D. Y. Xu, X. Chen : J. Eng. Therm. Vol. 25 (2004), p.676 (in Chinese) Fig. 3 Temperature curves of ceramic surface as a function of time for pulses time 50, 80, and 120 µs at the energy density 12 J/cm 2.
