Sliding Wear Behavior of Severely Deformed 6061 Aluminum Alloy by Accumulative Roll Bonding (ARB) Process

Mehdi Eizadjou; Armin Kazemi Talachi; Habib Danesh Manesh; Kamal Janghorban

doi:10.4028/www.scientific.net/MSF.667-669.1107

Paper Titles

Electrochemical Properties of UFG CP-Ti in Ringer’s Solution
p.1083

Impact of Ball Milling and High-Pressure Torsion on the Microstructure and Thermoelectric Properties of p- and n-Type Sb-Based Skutterudites
p.1089

Wear Resistance of SPD-Processed Alloys
p.1095

Wear Behaviour of Al-1050 Alloy Processed by Severe Plastic Deformation
p.1101

Sliding Wear Behavior of Severely Deformed 6061 Aluminum Alloy by Accumulative Roll Bonding (ARB) Process
p.1107

In Vitro Corrosion and Haemocompatibility of Bulk Nanocrystalline 304 Stainless Steel by Severe Rolling
p.1113

The Effect of Structure on Mechanical and Corrosion Properties of Austenitic Steel Subjected to Neutron Irradiation
p.1119

Investigation on Corrosion Behaviors of Ultra-Fine Grain Copper in 3.5% NaCl Solution
p.1125

Overview on the Corrosion Behavior of Ultra-Fine Grained Materials Fabricated by Equal-Channel Angular Pressing
p.1131

HomeMaterials Science ForumMaterials Science Forum Vols. 667-669Sliding Wear Behavior of Severely Deformed 6061...

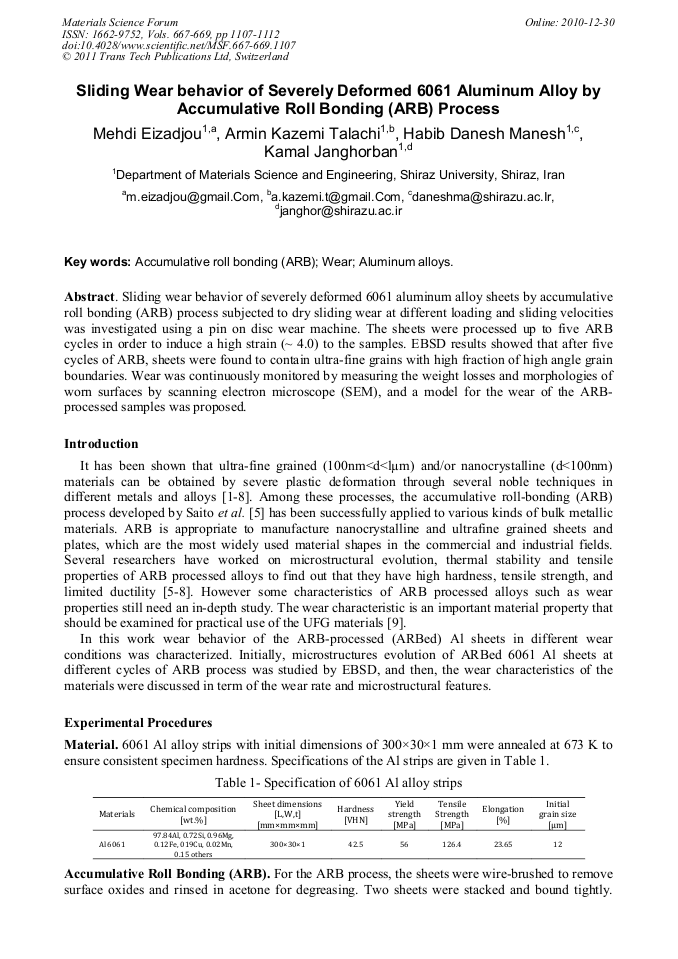

Sliding Wear Behavior of Severely Deformed 6061 Aluminum Alloy by Accumulative Roll Bonding (ARB) Process

Abstract:

Sliding wear behavior of severely deformed 6061 aluminum alloy sheets by accumulative roll bonding (ARB) process subjected to dry sliding wear at different loading and sliding velocities was investigated using a pin on disc wear machine. The sheets were processed up to five ARB cycles in order to induce a high strain (~ 4.0) to the samples. EBSD results showed that after five cycles of ARB, sheets were found to contain ultra-fine grains with high fraction of high angle grain boundaries. Wear was continuously monitored by measuring the weight losses and morphologies of worn surfaces by scanning electron microscope (SEM), and a model for the wear of the ARB-processed samples was proposed.
