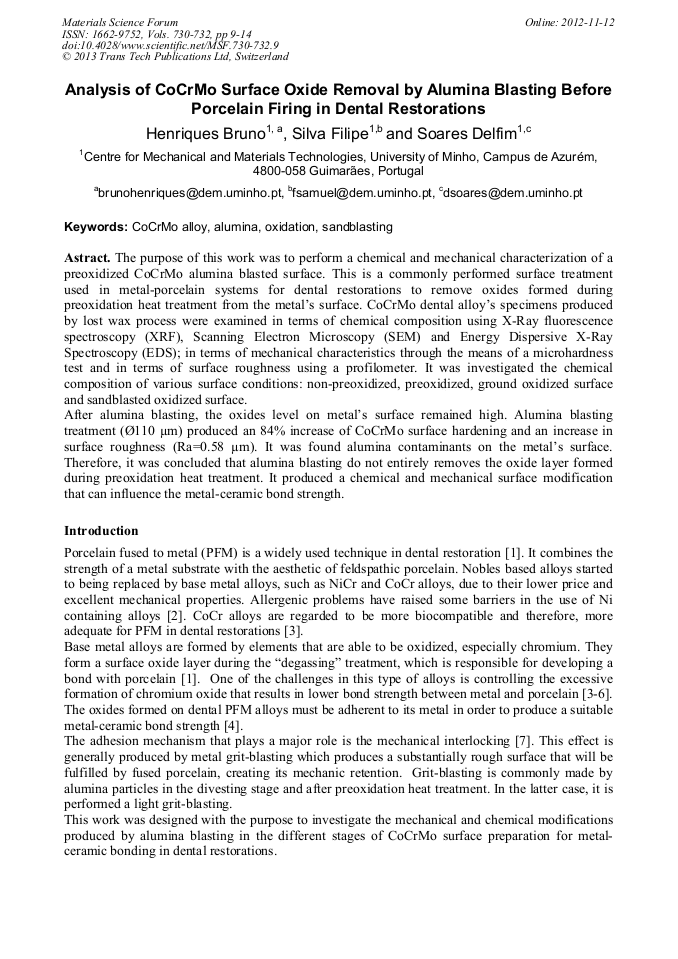

Analysis of CoCrMo Surface Oxide Removal by Alumina Blasting before Porcelain Firing in Dental Restorations

Abstract:

The purpose of this work was to perform a chemical and mechanical characterization of a preoxidized CoCrMo alumina blasted surface. This is a commonly performed surface treatment used in metal-porcelain systems for dental restorations to remove oxides formed during preoxidation heat treatment from the metal’s surface. CoCrMo dental alloy’s specimens produced by lost wax process were examined in terms of chemical composition using X-Ray fluorescence spectroscopy (XRF), Scanning Electron Microscopy (SEM) and Energy Dispersive X-Ray Spectroscopy (EDS); in terms of mechanical characteristics through the means of a microhardness test and in terms of surface roughness using a profilometer. It was investigated the chemical composition of various surface conditions: non-preoxidized, preoxidized, ground oxidized surface and sandblasted oxidized surface. After alumina blasting, the oxides level on metal’s surface remained high. Alumina blasting treatment (Ø110 µm) produced an 84% increase of CoCrMo surface hardening and an increase in surface roughness (Ra=0.58 µm). It was found alumina contaminants on the metal’s surface. Therefore, it was concluded that alumina blasting do not entirely removes the oxide layer formed during preoxidation heat treatment. It produced a chemical and mechanical surface modification that can influence the metal-ceramic bond strength.

• Periodical: Materials Science Forum (Volumes 730-732)
• Pages: 9-14
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.730-732.9
• Online since: November 2012
• Authors: Bruno Henriques, Filipe Silva, Delfim Soares
• Keywords: Alumina, CoCrMo Alloy, Oxidation, Sandblasting

References

[1] K.J. Anusavice, Science of dental materials. 10th ed., WB Saunders Co, Philadephia, 1996.

[2] H.W. Roberts, D.W. Berzins, B.K. Moore, D.G. Charlton. Metal-Ceramic Alloys in Dentistry: A Review. Int. J. Prosthodont. 18 (2009) 188-194.

DOI: 10.1111/j.1532-849x.2008.00377.x

[3] S.R. Rokni, H. Baradaran. The effect of oxide layer thickness on the bond strength of porcelain to Ni-Cr alloy. J. Mashhad. Dent. School 31 (2007) 17-21.

[4] J.R. Mackert, E.E. Parry, D.T. Hashinger, C.W. Fairhurst. Measurement of oxide adherence to PFM alloys. J. Dent. Res. 63 (1984) 1335-1340.

DOI: 10.1177/00220345840630111701

[5] J.W. Mc lean, I.R. Sced. Bonding of dental porcelain to metal. II. The base metal alloy/porcelain bond. Trans J. Br. Ceram. Soc. 72 (1973) 235-238.

[6] I.R. Sced, J.W. Mclean. The strength of metal ceramic bonds with base metals containing chromium (a preliminary report). Br. Dent. J. 2 (1972) 232-234.

DOI: 10.1038/sj.bdj.4802830

[7] W.C. Wagner, K. Asgar, W. Bigelow, R.A. Flinn. Effect of interface variables on metal-porcelain bonding. J. Biomed. Mater. Res. 27 (1993) 531-537.

DOI: 10.1002/jbm.820270414

[8] T. Johnson, R. van Noort, C.W. Stokes. Surface analysis of porcelain fused to metal systems. Dent. Mater. 22 (2006) 330-337.

DOI: 10.1016/j.dental.2005.05.003

[9] T. Papadopoulos, A. Tsetsekou A, G. Eliades. Effect of aluminium oxide sandblasting on cast commercially pure titanium surfaces. Eur. J. Prosthodont Restor. Dent. 7 (1999) 15-21.

[10] Y. Wu, J.B. Moser, L.M. Jameson, W.F.P. Malone. The effect of oxidation heat treatment on porcelain bond strength in selected base metal alloys. J. Prosthet. Dent. 66 (1991) 439-444.

DOI: 10.1016/0022-3913(91)90502-n

[11] C.S. Giggins, F.S. Petit. The effect of alloy grain size and surface deformation on the selective oxidation of chromium in Ni-Cr alloys at temperature of 900º and 1100ºC. Trans. TMS-AIME 245 (1969) 2509-2514.

[12] D. Caplan, G.I. Sproule, R.J. Hussey. Comparison of kinetics of high-temperature oxidation of Fe as influenced by metal purity and cold work. Corros. Sci. 10 (1970) 9-17.

DOI: 10.1016/s0010-938x(70)80093-2
