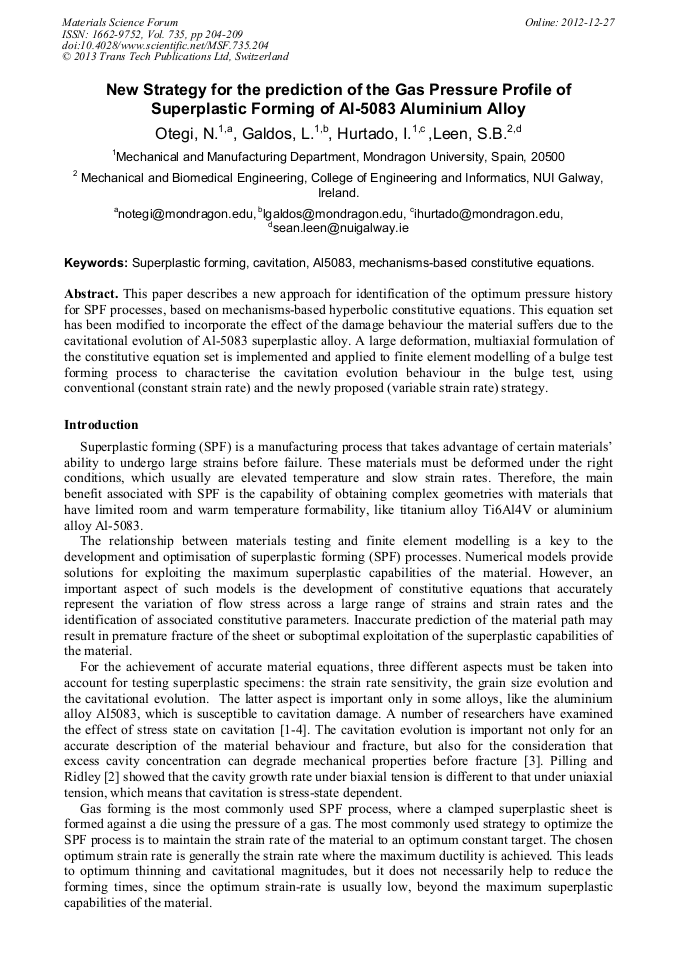

New Strategy for the Prediction of the Gas Pressure Profile of Superplastic Forming of Al-5083 Aluminium Alloy

Abstract:

This paper describes a new approach for identification of the optimum pressure history for SPF processes, based on mechanisms-based hyperbolic constitutive equations. This equation set has been modified to incorporate the effect of the damage behaviour the material suffers due to the cavitational evolution of Al-5083 superplastic alloy. A large deformation, multiaxial formulation of the constitutive equation set is implemented and applied to finite element modelling of a bulge test forming process to characterise the cavitation evolution behaviour in the bulge test, using conventional (constant strain rate) and the newly proposed (variable strain rate) strategy.

• Periodical: Materials Science Forum (Volume 735)
• Pages: 204-209
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.735.204
• Online since: December 2012
• Authors: Nagore Otegi, Lander Galdos, Iñaki Hurtado, Sean B. Leen
• Keywords: AA5083 Aluminum Alloy, Cavitation, Mechanisms-Based Constitutive Equations, Superplastic Forming

References

[1] J. Pilling and N. Ridley, "Effect of hydrostatic pressure on cavitation in superplastic aluminium alloys," Acta Metallurgica 34 (4), 669-679 (1986).

DOI: 10.1016/0001-6160(86)90182-3

[2] Pilling, J. and Ridley, N. Superplasticity in crystalline solids, 1989 (The Institute of Metals, London, UK).

[3] M.J. Stowell, "Failure of superplastic alloys," Metal Science 17 (1), 1-11 (1983).

[4] D.H. Bae and AK Ghosh, "Cavity growth in a superplastic Al-Mg alloy: II. An improved plasticity based model," Acta Materialia 50 (5), 1011-1029 (2002).

DOI: 10.1016/s1359-6454(01)00400-1

[5] X.D. Ding, H.M. Zbib, C.H. Hamilton, and A.E. Bayoumi, On the Optimization of Superplastic Blow-Forming Processes, J. Mater. Eng. Perf., Vol 4 (No. 4), 1995, pp.474-485

DOI: 10.1007/bf02649309

[6] M. K. Khraisheh, F. Abu-Farha, M. Nazzal and K. Weinmann, Combined Mechanics-Materials Based Optimization of Superplastic Forming of Magnesium AZ31 Alloy, Annals of CIRP, Volume 55(1), pp.233-236, (2006)

DOI: 10.1016/s0007-8506(07)60405-3

[7] M Nazzal, M Khraisheh, B Darras. Finite element modeling and optimization of superplastic forming using variable strain rate approach, Journal of Materials Engineering and Performance. 13 (2004) 691-699.

DOI: 10.1361/10599490421321

[8] N. Otegi, L. Galdos, I. Hurtado, and S. B. Leen, "Analysis of the Capabilities of a Hyperbolic Constitutive Equation for Al-5083 Superplastic Aluminium Alloy"AIP Conf. Proc. 1353, 1574 (2011)

DOI: 10.1063/1.3589741

[9] T.W. Kim and F. P. E. Dunne, "Determination of superplastic constitutive equations and strain rate sensitivities for aerospace alloys," Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering 211 (6), 367-380 (1997).

DOI: 10.1243/0954410971532730

[10] J. Lin and F.P.E. Dunne, "Modelling grain growth evolution and necking in superplastic blow-forming," Int.J.Mech.Sci. 43 (3), 595-609 (2001).

DOI: 10.1016/s0020-7403(00)00055-2

[11] C.C. Bampton et al., "Control of superplastic cavitation by hydrostatic pressure," Metallurgical and Materials Transactions A 14 (8), 1583-1591 (1983).

DOI: 10.1007/bf02654385

[12] Z.X. Guo and N. Ridley, "Effect of stress state on cavitation and hole growth in superplastic AA 7475 aluminium alloy," Materials Science and Technology 6 (6), 516-519, 1990.

DOI: 10.1179/mst.1990.6.6.516
