AlGaN/GaN Based HEMTs on SiC/Si-Substrates: Influences on High Frequency Performance

Abstract:

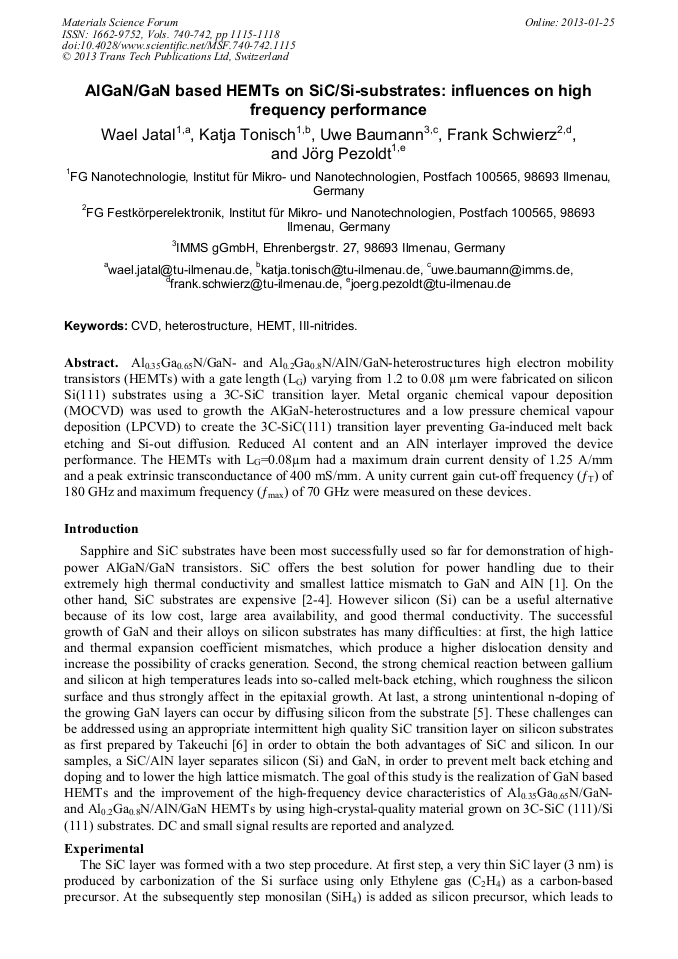

Al0.35Ga0.65N/GaN- and Al0.2Ga0.8N/AlN/GaN-heterostructures high electron mobility transistors (HEMTs) with a gate length (LG) varying from 1.2 to 0.08 µm were fabricated on silicon Si(111) substrates using a 3C-SiC transition layer. Metal organic chemical vapour deposition (MOCVD) was used to growth the AlGaN-heterostructures and a low pressure chemical vapour deposition (LPCVD) to create the 3C-SiC(111) transition layer preventing Ga-induced melt back etching and Si-out diffusion. Reduced Al content and an AlN interlayer improved the device performance. The HEMTs with LG=0.08µm had a maximum drain current density of 1.25 A/mm and a peak extrinsic transconductance of 400 mS/mm. A unity current gain cut-off frequency (ƒT) of 180 GHz and maximum frequency (ƒmax) of 70 GHz were measured on these devices.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2012

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 740-742)

Pages:

1115-1118

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.740-742.1115

Citation:

Cite this paper

Online since:

January 2013

Authors:

Wael Jatal, Katja Tonisch, Uwe Baumann, Frank Schwierz, Joerg Pezoldt

Keywords:

CVD, HEMT, Heterostructure, III-Nitrides

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Y. -F. Wu, D. Kapolnek, J.P. Ibbetson, P. Parikh, B.P. Keller, U.K. Mishra, IEEE Trans. Electr. Dev. 48 (2001) 586-590.

DOI: 10.1109/16.906455

Google Scholar

[2] D. C. Dumka, C. Lee, H. Q. Tsern, P. Saumier, M. Kumar, Electr. Lett. 40 (2004) 1023-1024.

Google Scholar

[3] J. W. Johnson, E. L. Piner, A. Vescan, R. Therrien, P. Rajagopal, J. C. Roberts, J. D. Brown, S. Singhal, K. L. Linthicum, IEEE Electr. Dev. Lett. Vol. 25 (2004) 459-461.

DOI: 10.1109/led.2004.831190

Google Scholar

[4] Y. Cordier, M. Portail, S. Chenot, O. Tottereau, M. Zielinski, Th. Chassagne, J. Cryst. Growth, Vol. 310 (2008) 4417-4423.

DOI: 10.1016/j.jcrysgro.2008.07.063

Google Scholar

[5] A. Dadger, A. Strittmatter, J. Blasing, M. Poschenrieder, O. Contreras, P. Veit, T. Riemann, F. Bertram, A. Reiher, A. Krtschil, A. Diez, T. Hempel, T. Finger, A. Kasic, M. Schubert, D. Bimberg, F. A. Ponce, J. Christen, A. Krost, Phys. Stat. Sol. C 0 (2003).

DOI: 10.1002/pssc.200303122

Google Scholar

[6] T. Takeuchi, H. Amano, K. Hiramatsu, N. Sawaki, I. Akasaki, J. Cryst. Growth Vol. 115 (1991) 634-638.

Google Scholar

[7] Ch. Förster, V. Cimalla, O. Ambacher, J. Pezoldt, Mater. Sci. Forum, 483-485 (2005) 201-204.

DOI: 10.4028/www.scientific.net/msf.483-485.201

Google Scholar

[8] K. Tonisch, W. Jatal, F. Niebelschuetz, H. Romanus, F. Schwierz, U. Baumann, J. Pezoldt, Thin Solid Films 520 (2011) 491-496.

DOI: 10.1016/j.tsf.2011.07.003

Google Scholar

[9] G. K. Reeves, H. B. Harrison, IEEE Electr. Dev. Lett. 3 (1982) 111-113.

Google Scholar

[10] M. Higashiwaki, T. Mimura, T. Matsui, Appl. Phys. Express 1 (2008) 021103-1 - 021103-1.

Google Scholar

[11] M. Higashiwaki, T. Mimura, T. Matsui, IEEE Electr. Dev. Lett. 27 (2006) 16-18.

Google Scholar

[12] V. Kumar, W. Lu, R. Schwindt, A. Kuliev, G. Simin, J. Yang, M. Asif Khan, L. Adesida, IEEE Electr. Dev. Lett. 23 (2002) 455-457.

DOI: 10.1109/led.2002.801303

Google Scholar
