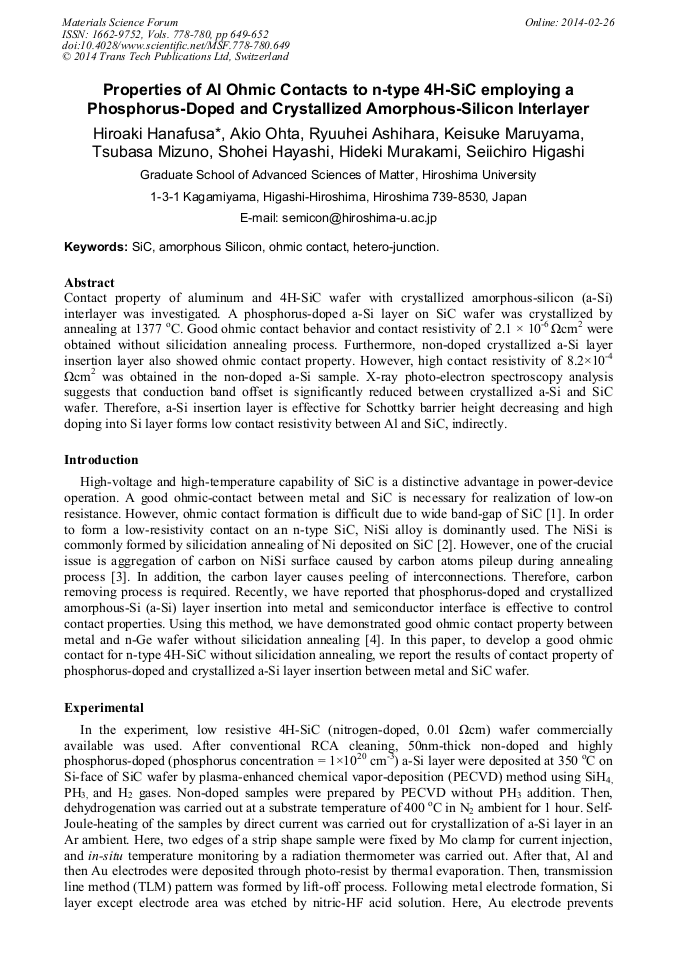

Properties of Al Ohmic Contacts to n-type 4H-SiC Employing a Phosphorus-Doped and Crystallized Amorphous-Silicon Interlayer

Abstract:

Contact property of aluminum and 4H-SiC wafer with crystallized amorphous-silicon (a-Si) interlayer was investigated. A phosphorus-doped a-Si layer on SiC wafer was crystallized by annealing at 1377 °C. Good ohmic contact behavior and contact resistivity of 2.1 × 10^-6Ωcm² were obtained without silicidation annealing process. Furthermore, non-doped crystallized a-Si layer insertion layer also showed ohmic contact property. However, high contact resistivity of 8.2×10^-4Ωcm² was obtained in the non-doped a-Si sample. X-ray photo-electron spectroscopy analysis suggests that conduction band offset is significantly reduced between crystallized a-Si and SiC wafer. Therefore, a-Si insertion layer is effective for Schottky barrier height decreasing and high doping into Si layer forms low contact resistivity between Al and SiC, indirectly.
