The Mechanical and Deformation Behavior of TWIP Steel Prepared by Directional Solidification

Abstract:

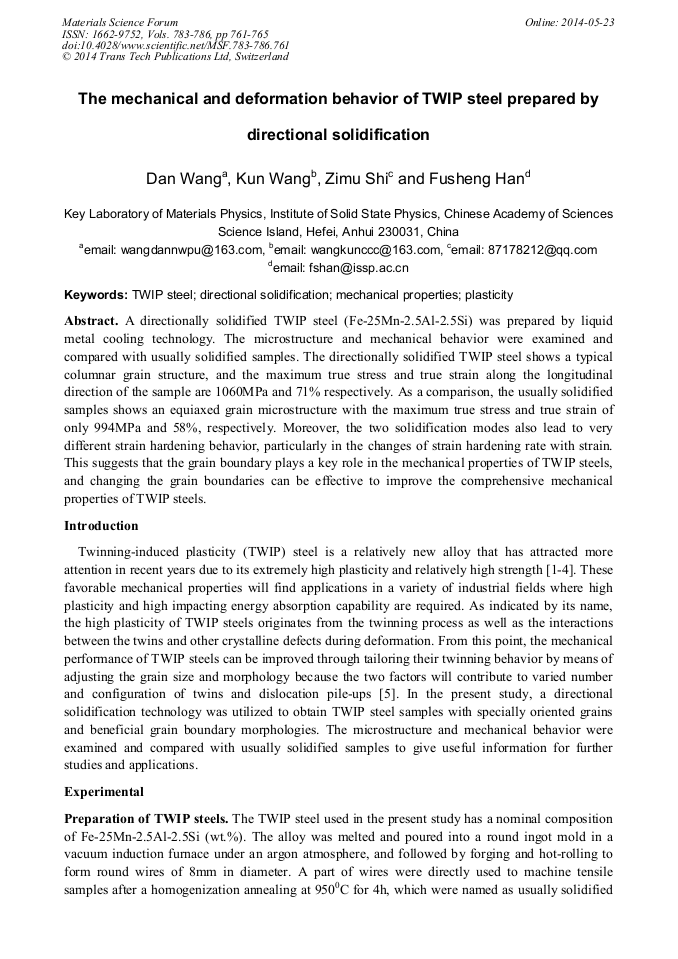

A directionally solidified TWIP steel (Fe-25Mn-2.5Al-2.5Si) was prepared by liquid metal cooling technology. The microstructure and mechanical behavior were examined and compared with usually solidified samples. The directionally solidified TWIP steel shows a typical columnar grain structure, and the maximum true stress and true strain along the longitudinal direction of the sample are 1060MPa and 71% respectively. As a comparison, the usually solidified samples shows an equiaxed grain microstructure with the maximum true stress and true strain of only 994MPa and 58%, respectively. Moreover, the two solidification modes also lead to very different strain hardening behavior, particularly in the changes of strain hardening rate with strain. This suggests that the grain boundary plays a key role in the mechanical properties of TWIP steels, and changing the grain boundaries can be effective to improve the comprehensive mechanical properties of TWIP steels.

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 761-765
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.761
• Online since: May 2014
• Authors: Dan Wang*, kun wang, Zi Mu Shi, Fu Sheng Han
• Keywords: Directional Solidification, Mechanical Property, Plasticity, TWIP Steel

References

[1] O. Grassel, L. Kruger, G. Frommeyer, L.W. Meyer, High strength Fe–Mn–(Al, Si) TRIP/TWIP steels development — properties — application, Int. J. Plast. 16 (2000) 1391-1409.

DOI: 10.1016/s0749-6419(00)00015-2

[2] H. Idrissi, L. Ryelandt, M. Veron, D. Schryvers, P.J. Jacques, Is there a relationship between the stacking fault character and the activated mode of plasticity of Fe–Mn-based austenitic steels, Scr. Mater. 60 (2009) 941-944.

DOI: 10.1016/j.scriptamat.2009.01.040

[3] H. Idrissi, K. Penard, L. Ryelandt, D. Schryvers, P.J. Jacques, On the mechanism of twin formation in Fe–Mn–C TWIP steels, Acta Mater. 58 (2010) 2464-2476.

DOI: 10.1016/j.actamat.2009.12.032

[4] X.F. Duan, D. Wang, K. Wang, F.S. Han, Twinning behaviour of TWIP steel studied by Taylor factor analysis, Phil. Mag. Lett. 93 (2013) 316-321.

DOI: 10.1080/09500839.2013.776185

[5] I. Gutierrez-Urrutia, D. Raabe, Grain size effect on strain hardening in twinning-induced plasticity steels, Scr. Mater. 66 (2012) 992-996.

DOI: 10.1016/j.scriptamat.2012.01.037

[6] D.R. Steinmetz, T. Japel, B. Wietbrock, P. Eisenlohr, I. Gutierrez-Urrutia, A. Saeed-Akbari, T. Hickel, F. Roters, D. Raabe, Revealing the strain-hardening behavior of twinning-induced plasticity steels: Theory, simulations, experiments, Acta Mater. 61 (2013).

DOI: 10.1016/j.actamat.2012.09.064

[7] K.K. Jeong, J.E. Jin, Y.S. Jung, S.G. Kang, Y.K. Lee, The effects of Si on the mechanical twinning and strain hardening of Fe-18Mn-0. 6C twinning-induced plasticity steel, Acta Mater. 61 (2013) 3399-3410.

DOI: 10.1016/j.actamat.2013.02.031
