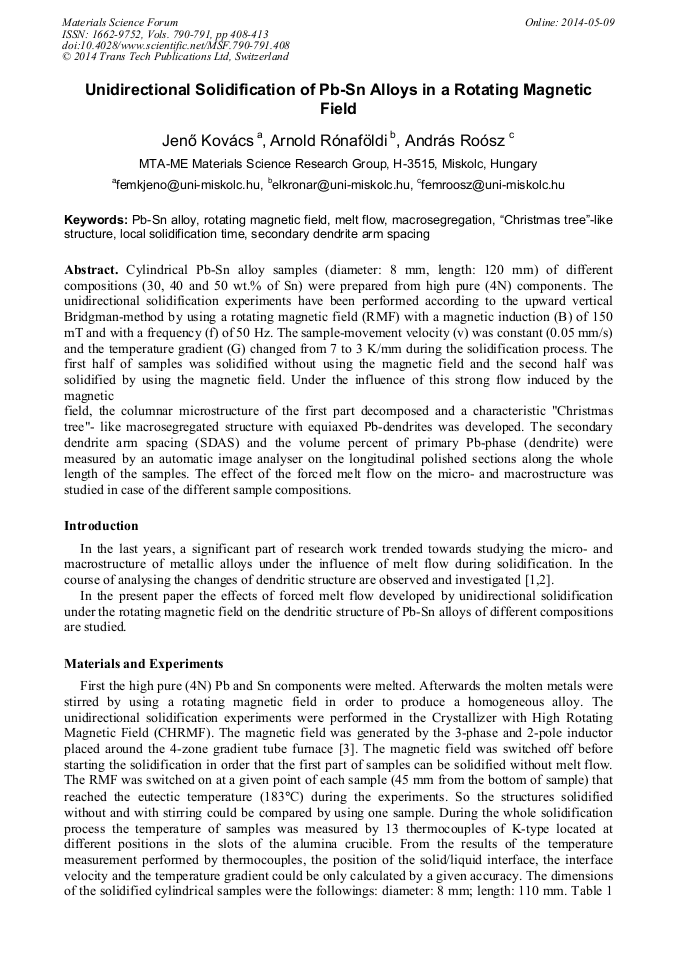

Unidirectional Solidification of Pb-Sn Alloys in a Rotating Magnetic Field

Abstract:

Cylindrical Pb-Sn alloy samples (diameter: 8 mm, length: 120 mm) of different compositions (30, 40 and 50 wt.% of Sn) were prepared from high pure (4N) components. The unidirectional solidification experiments have been performed according to the upward vertical Bridgman-method by using a rotating magnetic field (RMF) with a magnetic induction of 150 mT and with a frequency of 50 Hz. The sample-movement velocity was constant (0.05 mm/s) and the temperature gradient changed from 7 to 3 K/mm during the solidification process. The first half of samples was solidified without using the magnetic field and the second half was solidified by using the magnetic field. Under the influence of this strong flow induced by the magnetic field, the columnar microstructure of the first part decomposed and a characteristic "Christmas tree"- like macrosegregated structure with equiaxed Pb-dendrites was developed. The secondary dendrite arm spacing (SDAS) and the volume percent of primary Pb-phase (dendrite) were measured by an automatic image analyser on the longitudinal polished sections along the whole length of the samples. The effect of the forced melt flow on the micro-and macrostructure was studied in case of the different sample compositions.

• Periodical: Materials Science Forum (Volumes 790-791)
• Pages: 408-413
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.790-791.408
• Online since: May 2014
• Authors: Jenő Kovács*, Arnold Rónaföldi, András Roósz
• Keywords: Christmas Tree-Like Structure, Local Solidification Time, Macrosegregation, Melt Flow, Pb-Sn Alloy, Rotating Magnetic Field, Secondary Dendrite Arm Spacing

References

[1] B. Willers, S. Eckert, P.A. Nikrityuk, D. Rabiger, J. Dong, K. Eckert and G. Gerbeth, Efficient Melt Stirring Using Pulse Sequences of a Rotating Magnetic Field: Part II. Application to Solidification of Al-Si Alloys, Metall. and Mater. Trans. B. 39 April (2008).

DOI: 10.1007/s11663-008-9126-x

[2] C.G. Kanga, J.W. Baeb, B.M. Kima, The grain size control of A356 aluminum alloy by horizontal electromagnetic stirring for rheology forging, J. of Mater. Proc. Technology 187–188 (2007) 344–348.

DOI: 10.1016/j.jmatprotec.2006.11.181

[3] A. Rónaföldi, J. Kovács and A. Roósz, A suggested effective method for unidirectional solidification under rotating magnetic field in the space experiments, Trans. Indian Inst. Met. 62 (4-5) Aug. -Oct. (2009) 475-477.

DOI: 10.1007/s12666-009-0078-x

[4] A. Rónaföldi, J. Kovács, A. Roósz, Revolution Number (RPM) Measurement of Molten Alloy by Pressure Compensation Method, Mater. Sci. Forum 649 (2010) 275-280.

DOI: 10.4028/www.scientific.net/msf.649.275

[5] J. Kovács, A. Rónaföldi, Á. Kovács, and A. Roósz, Effect of the rotating magnetic field on the unidirectionally solidified macrostructure of Al6Si4Cu alloy, Trans. Indian Inst. Met. 62 (4-5) Aug. -Oct. (2009) 461-464.

DOI: 10.1007/s12666-009-0085-y

[6] O Budenkova, F Baltaretu, J Kovács, A Roósz, A Rónaföldi, A-M Bianchi and Y. Fautrelle, Simulation of a directional solidification of a binary Al-7wt%Si and a ternary alloy Al-7wt%Si-1wt%Fe under the action of a rotating magnetic field, IOP Conf. Series: Mater. Sci. and Eng. 33 (2012).

DOI: 10.1088/1757-899x/33/1/012046

[7] V. Rontó and A. Roósz, Investigation of secondary dendrite arm coarsening of Al-Cu-Si alloys, Mater. Sci. Forum 329-330 (2000) 79-86.

DOI: 10.4028/www.scientific.net/msf.329-330.79

[8] T. Mende, A. Roósz, Accurate calculation of the non-variant points of equilibrium phase diagrams by using the ESTPHAD method, Mater. Sci. Forum 729 (2013) 448-454.

DOI: 10.4028/www.scientific.net/msf.729.448

[9] V. Rontó and A. Roósz, The effect of cooling rate and composition on the secondary dendrite arm spacing during solidification. Part I: Al-Cu-Si alloys, Int. J. of Cast Met. Research 13 (2001) 337-342.

DOI: 10.1080/13640461.2001.11819415

[10] S. Steinbach and L. Ratke, The effect of rotating magnetic fields on the microstructure of directionally solidified Al–Si–Mg alloys, Mater. Sci. and Eng. A. 413-414 (2005) 200-204.

DOI: 10.1016/j.msea.2005.09.010
