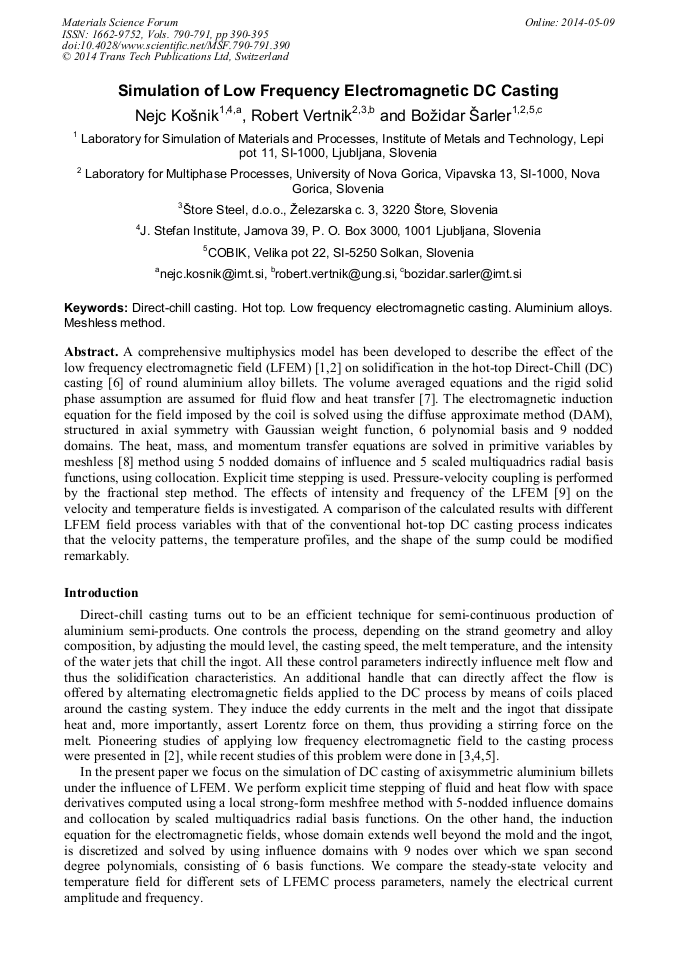

Simulation of Low Frequency Electromagnetic DC Casting

Abstract:

A comprehensive multiphysics model has been developed to describe the effect of the low frequency electromagnetic field (LFEM) [1, on solidification in the hot-top Direct-Chill (DC) casting [ of round aluminium alloy billets. The volume averaged equations and the rigid solid phase assumption are assumed for fluid flow and heat transfer [. The electromagnetic induction equation for the field imposed by the coil is solved using the diffuse approximate method (DAM), structured in axial symmetry with Gaussian weight function, 6 polynomial basis and 9 nodded domains. The heat, mass, and momentum transfer equations are solved in primitive variables by meshless [ method using 5 nodded domains of influence and 5 scaled multiquadrics radial basis functions, using collocation. Explicit time stepping is used. Pressure-velocity coupling is performed by the fractional step method. The effects of intensity and frequency of the LFEM [ on the velocity and temperature fields is investigated. A comparison of the calculated results with different LFEM field process variables with that of the conventional hot-top DC casting process indicates that the velocity patterns, the temperature profiles, and the shape of the sump could be modified remarkably.

• Periodical: Materials Science Forum (Volumes 790-791)
• Pages: 390-395
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.790-791.390
• Online since: May 2014
• Authors: Nejc Kosnik, Robert Vertnik, Božidar Šarler
• Keywords: Aluminium Alloy, Direct-Chill Casting, Hot Top, Low Frequency Electromagnetic Casting, Meshless Method
