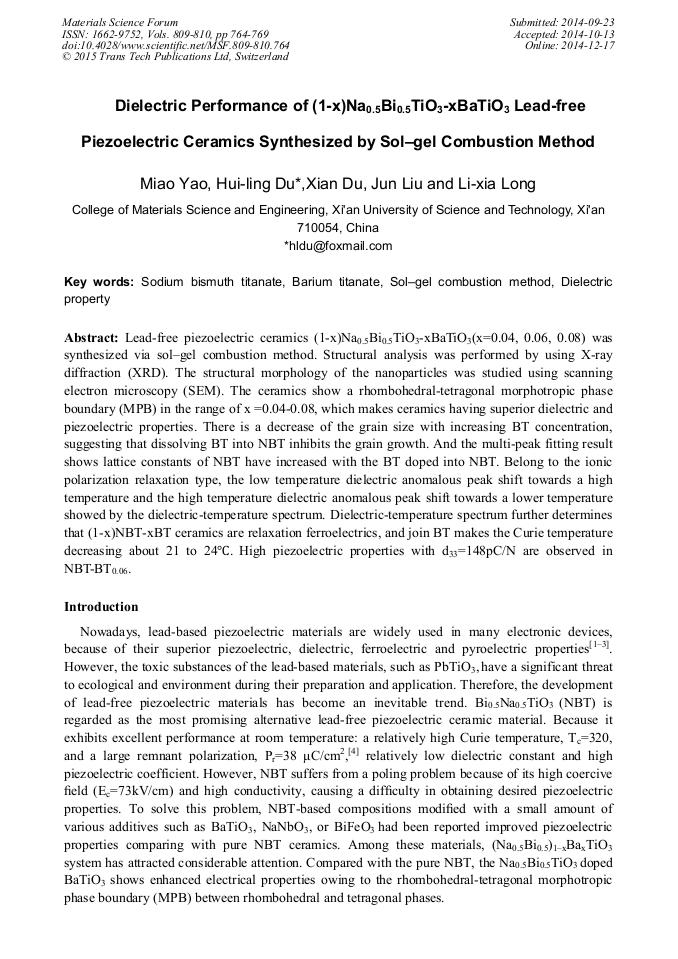

Dielectric Performance of (1-x)Na_0.5Bi_0.5TiO₃-xBaTiO₃ Lead-Free Piezoelectric Ceramics Synthesized by Sol-Gel Combustion Method

Abstract:

Lead-free piezoelectric ceramics (1-x)Na_0.5Bi_0.5TiO₃-xBaTiO₃(x=0.04, 0.06, 0.08) was synthesized via sol–gel combustion method. Structural analysis was performed by using X-ray diffraction (XRD). The structural morphology of the nanoparticles was studied using scanning electron microscopy (SEM). The ceramics show a rhombohedral-tetragonal morphotropic phase boundary (MPB) in the range of x =0.04-0.08, which makes ceramics having superior dielectric and piezoelectric properties. There is a decrease of the grain size with increasing BT concentration, suggesting that dissolving BT into NBT inhibits the grain growth. And the multi-peak fitting result shows lattice constants of NBT have increased with the BT doped into NBT. Belong to the ionic polarization relaxation type, the low temperature dielectric anomalous peak shift towards a high temperature and the high temperature dielectric anomalous peak shift towards a lower temperature showed by the dielectric-temperature spectrum. Dielectric-temperature spectrum further determines that (1-x)NBT-xBT ceramics are relaxation ferroelectrics, and join BT makes the Curie temperature decreasing about 21 to 24°C. High piezoelectric properties with d₃₃=148pC/N are observed in NBT-BT_0.06.

• Periodical: Materials Science Forum (Volumes 809-810)
• Pages: 764-769
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.809-810.764
• Online since: December 2014
• Authors: Miao Yao, Hui Ling Du*, Xian Du, Jun Liu, Li Xia Long
• Keywords: Barium Titanate, Dielectric Property, Sodium Bismuth Titanate, Sol–Gel Combustion Method

References

[1] G A Smolenskii, V A Isupov, A Agranovskaya, et al. New ferroelectrics of complex composition [J]. Sov Phys Solid State, Vol. 2 (1961) No. 11, p.2651.

[2] H Wang, R Zuo, Ji, Xu Z. Effects of ball milling on microstructure and electrical properties of sol-gel derived (Na0. 5Bi0. 5)0. 94Ba0. 06TiO3 piezoelectric ceramics [J]. Mater Des, Vol. 31(2010), p.4403.

DOI: 10.1016/j.matdes.2010.04.041

[3] M Otoncar, S D Skapin, et al. Compositional range and electrical properties of the morphotropic phase boundary in the Na0. 5Bi0. 5TiO3-K0. 5Bi0. 5TiO3 system [J]. J Eur Ceram Soc, Vol. 30 (2010) p.971.

[4] Cernea, E Andronecu, et al. Sol-gel synthesis and characterization of BaTiO3 doped (Bi0. 5Na0. 5)- BaTiO3 piezoelectric ceramics [J]. J Alloy Compd, Vol. 490 (2010) p.690.

DOI: 10.1016/j.jallcom.2009.10.140

[5] J G Hou, Y F Qu, W B Ma, et al. Synthesis and piezoelectric properties of (Na0. 5Bi0. 5)0. 94Ba0. 06- TiO3 ceramics prepared by sol-gel auto-combustion method [J]. Mater Sci, Vol. 42(2007) p.6787.

DOI: 10.1007/s10853-006-1429-1

[6] X J Li, Z Z Xi, W Long, et al. Study on structure and property of Bi0. 5Na0. 5TiO3 based ceramics doped with different ions [J]. J Synth Cryst, Vol. 42(2013) No. 11, p.2346.

[7] X Du , H L Du, J YHuang, et al. Study on Preparation Technology of bismuth sodium titanate based lead-free piezoelectric materials by sol-gel combustion method [J]. J Synth Cryst, Vol. 40 (2011)No. 6, p.1504.

[8] Li Y, W Chen, Q Xu, el al. Piezoelectric and dielectric properties of CeO2-doped lead-free ceramics [J]. Ceram Int, Vol. 33 (2007) p.95.

DOI: 10.1016/j.ceramint.2005.08.001

[9] C Xu, D Lin, el at. Structure electrical properties and depolarization temperature of (Bi0. 5Na0. 5) TiO3-BaTiO3 lead-free piezoelectric ceramics [J]. Solid State, Vol. 10 (2008) p.934.

DOI: 10.1016/j.solidstatesciences.2007.11.003

[10] P Kantha, K Pengpat, P Jarupoom, et al. Phase formation and electrical properties of BNLT-BZ T lead-free piezoelectric ceramic system [J]. Curr Appl Phys, Vol. 9 (2009), p.466.

DOI: 10.1016/j.cap.2008.04.004

[11] M Chen, Q Xu, B H Kim, et al. Structure and electrical properties of (Na0. 5Bi0. 5)1−xBaxTiO3 piezoelectric ceramic[J]. J Eur Ceram Soc, Vol. 28(2008) p.843.

[12] W F Mu, H L DU, X S, et al. Dielectric and ferroelectric properties of Lead-free piezoceramic of BNT–BT–ST system[J]. J Chin Ceram Soc, Vol. 39(2011) No. 12, p. (1961).

[13] M Cernea, B. Vasile, et al. Dielectric and piezoelectric behaviors of NBT-BT0. 05 processed by sol-gel method [J]. J Eur Ceram Soc, Vol. 32 (2012), p.133.

DOI: 10.1016/j.jeurceramsoc.2011.07.038

[14] C R Zhou, X Y Liu, G H Yang, et al. Dielectric relaxor of A site complex ferroelectric ceramics of Bi0. 5(Na0. 82K0. 18)0. 5Ti03-BiCrO3 [J]. J Inorg Mater, Vol. 24(2009) p.953.

[15] M Cerneaa, B S. Vasile, C Capiani, et al. Dielectric and piezoelectric behaviors of NBT-BT0. 05 processed by sol-gel method [J]. J Eur Ceram Soc, Vol. 32 (2012) p.133.

DOI: 10.1016/j.jeurceramsoc.2011.07.038

[16] B. J Chu, D. R. Chen, G. R Li, el al , Electrical properties of (Na1/2Bi1/2)TiO3–BaTiO3 ceramics. [J]J. Eur. Ceram. Soc, Vol. 22 (2002)p.2115.
