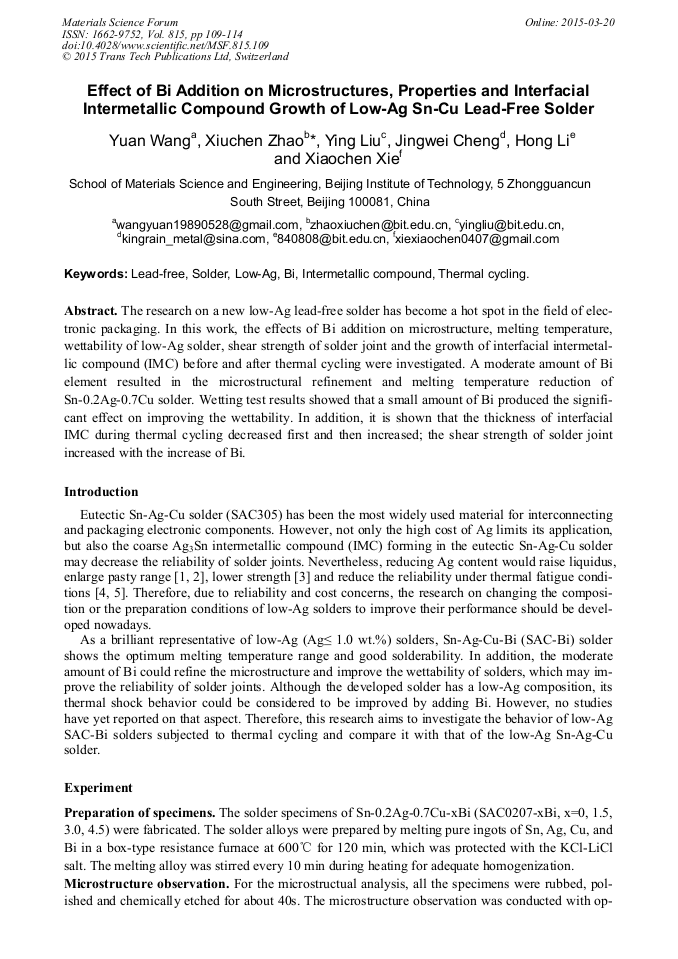

Effect of Bi Addition on Microstructures, Properties and Interfacial Intermetallic Compound Growth of Low-Ag Sn-Cu Lead-Free Solder

Abstract:

The research on a new low-Ag lead-free solder has become a hot spot in the field of electronic packaging. In this work, the effects of Bi addition on microstructure, melting temperature, wettability of low-Ag solder, shear strength of solder joint and the growth of interfacial intermetallic compound (IMC) before and after thermal cycling were investigated. A moderate amount of Bi element resulted in the microstructural refinement and melting temperature reduction of Sn-0.2Ag-0.7Cu solder. Wetting test results showed that a small amount of Bi produced the significant effect on improving the wettability. In addition, it is shown that the thickness of interfacial IMC during thermal cycling decreased first and then increased; the shear strength of solder joint increased with the increase of Bi.

• Periodical: Materials Science Forum (Volume 815)
• Pages: 109-114
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.815.109
• Online since: March 2015
• Authors: Yuan Wang, Xiu Chen Zhao, Ying Liu, Jing Wei Cheng, Hong Li, Xiao Chen Xie
• Keywords: Bi, Intermetallic Compound, Lead-Free, Low-Ag, Solder, Thermal Cycling

References

[1] T.S. Kim, A. Syed, S.W. Cha, J. Scanlon, C.G. Ryu, Effect of ph free alloy composition on drop/impact reliability of 0. 4, 0. 5 & 0. 8mm pitch chip scale packages with NiAu pad finish, The Electronic Components and Technology Conference. (2007).

DOI: 10.1109/ectc.2007.373911

[2] J.H. Lee, A.M. Yu, J.H. Kim, M.S. Kim, N. Kang, Reaction Properties and Interfacial Intermetallics for Sn-xAg-0. 5Cu Solders as a Function of Ag Content, Met Mater Int. 14(2008) 649-654.

DOI: 10.3365/met.mat.2008.10.649

[3] F.X. Che, J.E. Luan, X. Baraton, Effect of silver content and nickel dopant on mechanical properties of Sn-Ag-based solders, The Electronic Components and Technology Conference. (2008) 485-490.

DOI: 10.1109/ectc.2008.4550016

[4] S. Terashima, Y. Kariya, T. Hosoi, M. Tanaka, Effect of silver content on thermal fatigue life of Sn-xAg-0. 5Cu flip-chip interconnects, J Electron Mater. 32(2003) 1527-1533.

DOI: 10.1007/s11664-003-0125-z

[5] S. Terashima, M. Tanaka, K. Tatsumi, Thermal fatigue properties and grain boundary character distribution in Sn-xAg-0. 5Cu (x=1, 1. 2 and 3) lead free solder interconnects, Sci Technol Weld Joi. 13(2008) 60-65.

DOI: 10.1179/174329308x271788

[6] X. Wang, Y. Xiu, M.J. Dong, Y.C. Liu, The microstructure and properties of the Sn-xBi-0. 9Zn-0. 3Ag lead-free solders, J Mater Sci-Mater El. 22(2011) 592-595.

DOI: 10.1007/s10854-010-0182-z
