Thermal Simulation of Paralleled SiC PiN Diodes in a Module Designed for 6.5 kV/1 kA

Abstract:

This work shows thermal simulations of a package of 48/96 high-voltage (6.5 kV/1 kA) PiN diodes. A temperature dependent heat generation for a forward voltage of 3.6 V with a realistic heat generating volume in the diode of (2.7x2.7x0.01) mm3 was used. The thermal coupling of two diodes was determined to be less than 1 % for a distance between the diodes of 10 mm. The temperature distribution for the entire module has been studied for two different ceramic insulating materials, AlN and Al₂O₃, as well as for two numbers of diodes, 48 and 96. This led to a maximum temperature of 106 °C/118 °C (AlN, 48/96 diodes) and 123 °C/144 °C (Al₂O₃, 48/96 diodes). Assuming a constant applied voltage, a variance of ±0.5 V of the characteristic curve (forward voltage versus current) due to variations in the production process was considered fork single diodes. For a shift of +0.5 V for a single diode, the maximum temperature difference to the cooler temperature becomes approximately twice the original difference. Additionally, the operation under constant current (7.1 A, 10.2 A, 14.2 A) was studied including single diode failure. For single diode failure, the resulting change of the maximum temperature would be less than 3 %.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2014

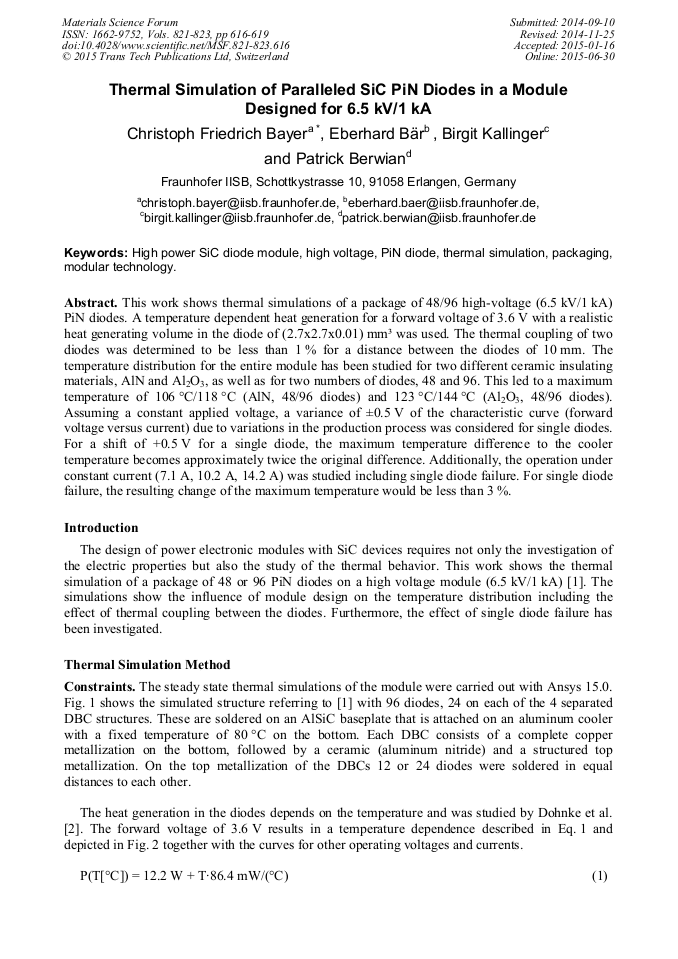

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 821-823)

Pages:

616-619

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.821-823.616

Citation:

Cite this paper

Online since:

June 2015

Authors:

Christoph Friedrich Bayer*, Eberhard Bär, Birgit Kallinger, Patrick Berwian

Keywords:

High Power SiC Diode Module, High Voltage, Modular Technology, Packaging, PiN Diode, Thermal Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] D. Peters, B. Thomas, T. Duetemeyer, T. Hunger, R. Sommer; An Experimental Study of High Voltage SiC PiN Diode Modules designed for 6. 5 kV / 1 kA; Materials Science Forum 679-680 (2011), pp.531-534.

DOI: 10.4028/www.scientific.net/msf.679-680.531

Google Scholar

[2] K. O. Dohnke, D. Peters, R. Schoerner; Characterization of packaged 6. 5 kV SiC PiN-diodes up to 300 °C; Materials Science Forum 717-720 (2012), pp.957-960.

DOI: 10.4028/www.scientific.net/msf.717-720.957

Google Scholar

[3] P. Beckedahl, W. Tursky, U. Scheuermann; Packaging considerations of an Integrated Inverter Module (IIM) for Hybrid Vehicles; in: Proc. PCIM, S6b1 (2005), pp.778-783.

Google Scholar
