Low R_ons in 3kV 4H-SiC UMOSFET with MeV Implanted Buried P-Base Region

Abstract:

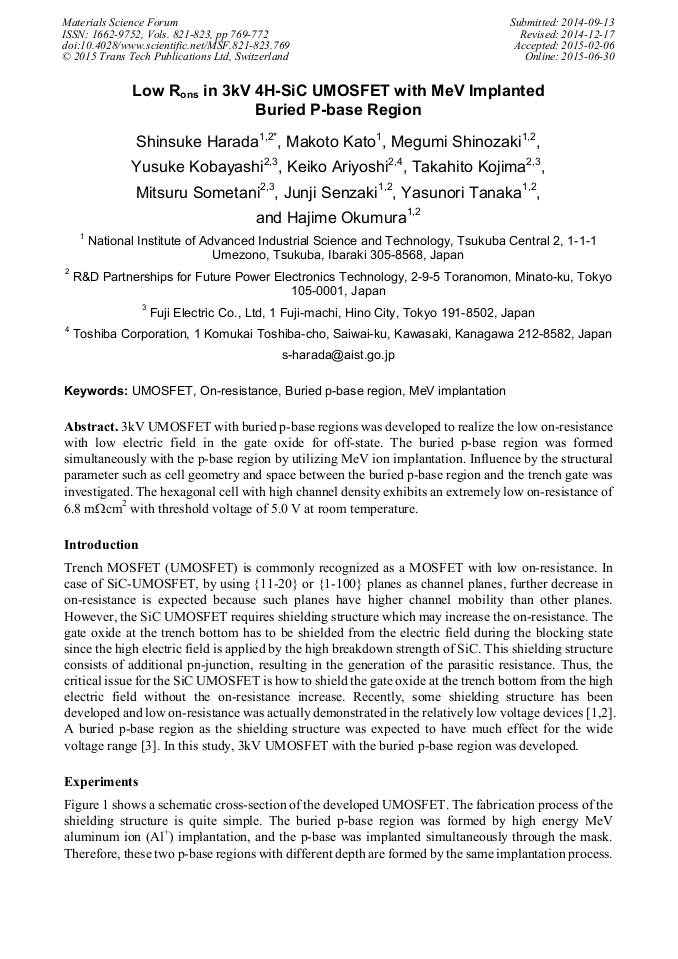

3kV UMOSFET with buried p-base regions was developed to realize the low on-resistance with low electric field in the gate oxide for off-state. The buried p-base region was formed simultaneously with the p-base region by utilizing MeV ion implantation. Influence by the structural parameter such as cell geometry and space between the buried p-base region and the trench gate was investigated. The hexagonal cell with high channel density exhibits an extremely low on-resistance of 6.8 mΩcm² with threshold voltage of 5.0 V at room temperature.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2014

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 821-823)

Pages:

769-772

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.821-823.769

Citation:

Cite this paper

Online since:

June 2015

Authors:

Shinsuke Harada*, Makoto Kato, Megumi Shinozaki, Yusuke Kobayashi, Keiko Ariyoshi, Takahito Kojima, Mitsuru Sometani, Junji Senzaki, Yasunori Tanaka, Hajime Okumura

Keywords:

Buried P-Base Region, MeV Ion Implantation, On-Resistance, UMOSFET

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] T. Nakamura, Y. Nakano, M. Aketa, R. Nakamura, S. Mitani, H. Sakairi and Y. Yokotsuji, Technical Digest of International Electron Devices Meeting, (2011), p.599.

DOI: 10.1109/iedm.2011.6131619

Google Scholar

[2] Y. Kagawa, N. Fujiwara, K. Sugawara, R. Tanaka, Y. Fukui, Y. Yamamoto, N. Miura, M. Imaizumi, S. Nakata and S. Yamakawa, Mater. Sci. Forum, 778-780 (2014), p.919.

DOI: 10.4028/www.scientific.net/msf.778-780.919

Google Scholar

[3] S. Harada, M. Kato, T. Kojima, K. Ariyoshi, Y. Tanaka and H. Okumura, Proceedings of the 24th International Symposium on Power Semiconductor Devices and Ics (2012), p.253.

DOI: 10.1109/ispsd.2012.6229071

Google Scholar

[4] K. Ariyoshi, S. Harada, J. Senzaki, T. Kojima, K. Kojima, Y. Tanaka and T. Shinohe, Mater. Sci. Forum, 778-780 (2014), p.615.

DOI: 10.4028/www.scientific.net/msf.778-780.615

Google Scholar
