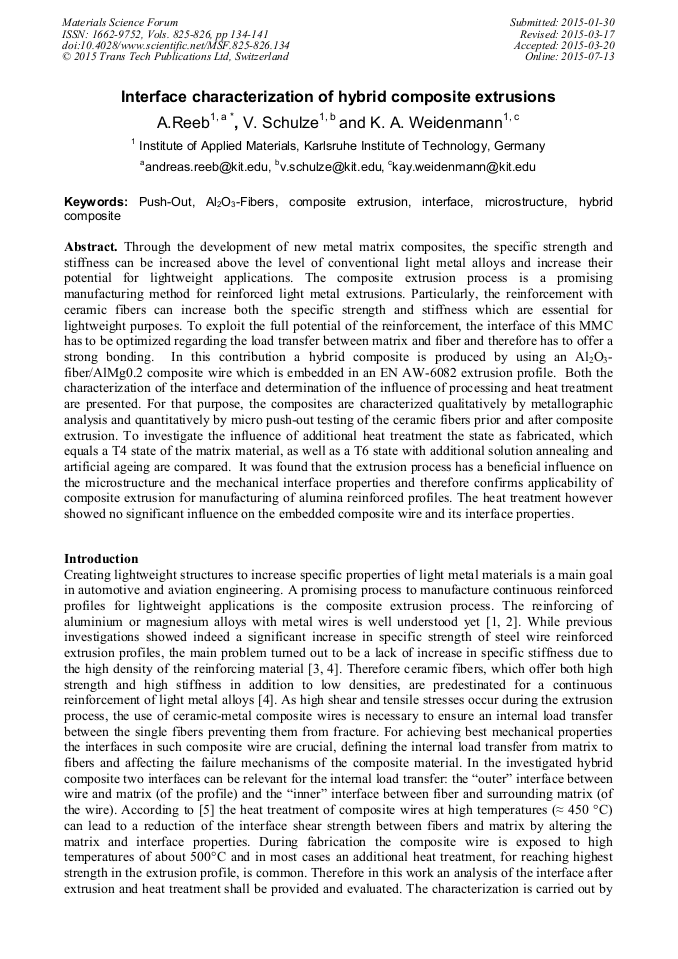

Interface Characterization of Hybrid Composite Extrusions

Abstract:

Through the development of new metal matrix composites, the specific strength and stiffness can be increased above the level of conventional light metal alloys and increase their potential for lightweight applications. The composite extrusion process is a promising manufacturing method for reinforced light metal extrusions. Particularly, the reinforcement with ceramic fibers can increase both the specific strength and stiffness which are essential for lightweight purposes. To exploit the full potential of the reinforcement, the interface of this MMC has to be optimized regarding the load transfer between matrix and fiber and therefore has to offer a strong bonding. In this contribution a hybrid composite is produced by using an Al₂O₃-fiber/AlMg0.2 composite wire which is embedded in an EN AW-6082 extrusion profile. Both the characterization of the interface and determination of the influence of processing and heat treatment are presented. For that purpose, the composites are characterized qualitatively by metallographic analysis and quantitatively by micro push-out testing of the ceramic fibers prior and after composite extrusion. To investigate the influence of additional heat treatment the state as fabricated, which equals a T4 state of the matrix material, as well as a T6 state with additional solution annealing and artificial ageing are compared. It was found that the extrusion process has a beneficial influence on the microstructure and the mechanical interface properties and therefore confirms applicability of composite extrusion for manufacturing of alumina reinforced profiles. The heat treatment however showed no significant influence on the embedded composite wire and its interface properties.

• Periodical: Materials Science Forum (Volumes 825-826)
• Pages: 134-141
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.825-826.134
• Online since: July 2015
• Authors: Andreas Reeb*, Volker Schulze, Kay André Weidenmann
• Keywords: Al₂O₃-Fibers, Composite Extrusion, Hybrid Composite, Interface, Microstructure, Push-Out

References

[1] M. Schomäcker, M. Schikorra, M. Kleiner, 4 Years of Research on Composite Extrusion for Continuous Reinforcement of Profiles, 6th Aluminium 2000 World Congress, Florence, (2007).

[2] A. Klaus, M. Schomäcker, M. Kleiner, First Advances in the Manufacture of Composite Extrusions for Lightweight Constructions, Light Metal Age, Vol. 62 (2004), No. 8, pp.12-21.

[3] M. Merzkirch, M. Meissner, V. Schulze, K.A. Weidenmann, Tensile behaviour of spring steel wire reinforced EN AW-6082, J. Compos. Mater. (2014) 1-14.

DOI: 10.1177/0021998313517581

[4] D. Löhe, V. Schulze, C. Fleck, K.A. Weidenmann, Verbundstranggepresste Aluminiummatrixverbunde – Werkstoffauswahl und Charakterisierung ausgewählter Metall-Metall-Systeme, Aluminium 80. Jahrgang 12 (2004) 1374-1378.

[5] M. Doktor, Production and Characterization of Continuous Reinforced Aluminum Wires, PHD-Thesis, Technische Universität Wien, Institut für Werkstoffkunde und Materialprüfung, Wien, (2000).

[6] K.A. Weidenmann, M. Schomäcker, E. Kerscher, D. Löhe, M. Kleiner, Composite Extrusion of Aluminum Matrix Specimens Reinforced with Continuous Ceramic Fibers, Light Metal Age (2005) 6-10.

[7] D. Pietzka, M. Schikorra, A.E. Tekkaya, Embedding of Alumina Reinforcing Elements in the Composite Extrusion Process, Advanced Materials Research 43 (2008) 9-16.

DOI: 10.4028/www.scientific.net/amr.43.9

[8] C. Dahnke, D. Pietzka, M. Haase, A.E. Tekkaya, Extending the Flexibility in the Composite Extrusion Process, Procedia CIRP, 18 (2014) 33-38.

DOI: 10.1016/j.procir.2014.06.103

[9] M. Doktor, J.T. Blucher, H.P. Degischer, Continuous fiber reinforced aluminium wires, ICCM-12, Paris, July 5-9, (1999).

[10] J.T. Blucher, M. Doktor, A New Pressure Infiltration Processs for Continuous Production of Fiber Reinforced MMC Structural Elements, Proceedings of the 30thInternational SAMPE Technical Conference, San Antonio, Texas, Oct. 22-4, (1998).

[11] B. Moser, A. Rossoll, L. Weber, O. Beffort, A. Mortensen, Transmitted light microscopy of a fibre reinforced metal, Journal of Microscopy, Vol. 209 (2003) 8 -12.

DOI: 10.1046/j.1365-2818.2003.01097.x

[12] A. Ohl, M. Merzkirch, M. Grigro, B. Butz, K.A. Weidenmann, Präparation von Dünnschliffen aus langfaserverstärkten Verbundwerkstoffen mit Polymer- oder Aluminiummatrizes zur Bestimmung der Grenzflächenscherfestigkeit mittels Push-Out Test, Prakt. Met. Sonderband 41 (2009).

[13] E.P. Rhyne, J.R. Hellmann, J.M. Galbraith, D.A. Koss, Thin-slice Fiber Pushout And Specimen Bending In Metallic Matrix Composite Tests, Scr. Metall. Mater. 32 (1994).

DOI: 10.1016/0956-716x(95)90835-8

[14] M. Merzkirch, K.A. Weidenmann, E. Kerscher, D. Löhe, Mechanical Properties of Hybrid Composite Extrusions of an Aluminum-Alumina Wire Reinforced Aluminium Alloy. Proceedings of Materials Science & Technology Conference and Exhibition (MS&T'08), October 5-9, Pittsburgh, 2008, pp.2552-2562.

DOI: 10.4028/www.scientific.net/amr.43.17

[15] I. Kientzl, Á. Németh, J. Dobránszky, Influence of the infiltration pressure on the properties of MMC wires, Mechanical Engineering 52/1 (2008) 15-18.

DOI: 10.3311/pp.me.2008-1.03

[16] T. Matsunaga, K. Ogata, T. Hatayama, K. Shinozaki, M. Yoshida, Effect of acoustic cavitation on ease of infiltration of molten aluminum alloys into carbon fiber bundles using ultrasonic infiltration method, Composites: Part A 38 (2007) 771-778.

DOI: 10.1016/j.compositesa.2006.09.003

[17] L.J. Barker, Revealing the Grain Structure of Common Aluminum Alloy Metallographic Specimens, Trans. Amer. Soc. Metals 42 (1950), 347-356.

[18] F. J. Humphreys, M. Hatherly, Recrystallization and related annealing phenomena, Pergamon, ISBN: 0-08-041884-8, Oxford, (1996).

[19] J. R. Davis, ASM Specialty Handbook: Aluminum and Aluminum Alloys, ASM International Handbook Committee, ISBN: 978-0871704962, (1993).
