Improvement of 4H-SiC Epitaxial Layers Grown on 2o Offcut Si-Face Substrates

Hirokuni Asamizu; Keiichi Yamada; Kentaro Tamura; Chiaki Kudou; Johji Nishio; Keiko Masumoto; Kazutoshi Kojima

doi:10.4028/www.scientific.net/MSF.858.133

Paper Titles

The Role of Porous Graphite Plate for High Quality SiC Crystal Growth by PVT Method
p.113

Advances in Fast Epitaxial Growth of 4H-SiC and Defect Reduction
p.119

Long Charge Carrier Lifetime in As-Grown 4H-SiC Epilayer
p.125

Homoepitaxial Chemical Vapor Deposition of up to 150 μm Thick 4H-SiC Epilayers in a 10×100 mm Batch Reactor
p.129

Improvement of 4H-SiC Epitaxial Layers Grown on 2^o Offcut Si-Face Substrates
p.133

p-Type Doping of 4H- and 3C-SiC Epitaxial Layers with Aluminum
p.137

Structural Study of the Innovative 3C-SiC/Si/3C-SiC/Si Heterostructure for Electro-Mechanical Applications
p.143

Stacking Fault Analysis of Epitaxial 3C-SiC on Si(001) Ridges
p.147

3C-SiC Epitaxy on Deeply Patterned Si(111) Substrates
p.151

HomeMaterials Science ForumMaterials Science Forum Vol. 858Improvement of 4H-SiC Epitaxial Layers Grown on 2o...

Improvement of 4H-SiC Epitaxial Layers Grown on 2^o Offcut Si-Face Substrates

Abstract:

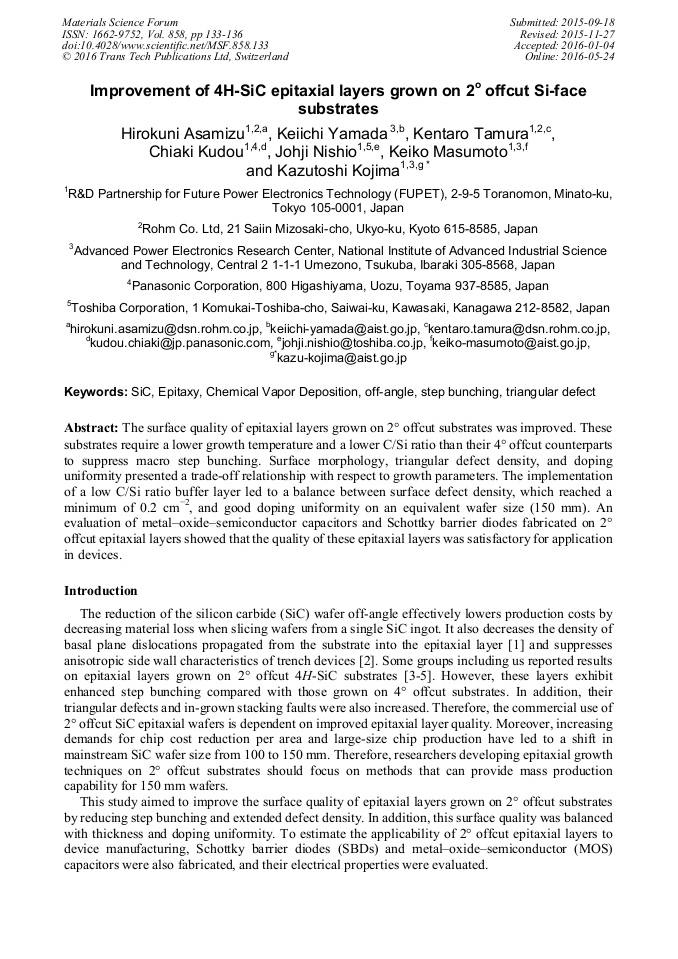

The surface quality of epitaxial layers grown on 2° offcut substrates was improved. These substrates require a lower growth temperature and a lower C/Si ratio than their 4° offcut counterparts to suppress macro step bunching. Surface morphology, triangular defect density, and doping uniformity presented a trade-off relationship with respect to growth parameters. The implementation of a low C/Si ratio buffer layer led to a balance between surface defect density, which reached a minimum of 0.2 cm⁻², and good doping uniformity on an equivalent wafer size (150 mm). An evaluation of metal–oxide–semiconductor capacitors and Schottky barrier diodes fabricated on 2° offcut epitaxial layers showed that the quality of these epitaxial layers was satisfactory for application in devices.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2015

View Preview

Info:

Periodical:

Materials Science Forum (Volume 858)

Pages:

133-136

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.858.133

Citation:

Cite this paper

Online since:

May 2016

Authors:

Hirokuni Asamizu, Keiichi Yamada, Kentaro Tamura, Chiaki Kudou, Johji Nishio, Keiko Masumoto, Kazutoshi Kojima*

Keywords:

Chemical Vapor Deposition (CVD), Epitaxy, Silicon Carbide (SiC), Step Bunching, Triangular Defect

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. Chen, M. A. Capano, J. Appl. Phys. 98 (2005) 114907.

Google Scholar

[2] S. Harada, S. Ito, M. Kato, A. Takatsuka, K. Kojima, K. Fukuda and H. Okumura, Mater. Sci. Forum 645-648 (2010) 999.

DOI: 10.4028/www.scientific.net/msf.645-648.999

Google Scholar

[3] K. Tamura, C. Kudo, K. Masumoto, J. Nishio and K. Kojima, Mater. Sci. Forum 778-780 (2014) 214.

Google Scholar

[4] L. Lilja, J. ul Hassan, E. Janzén and P. Bergman, Mater. Sci. Forum 778-780 (2014) 206.

DOI: 10.4028/www.scientific.net/msf.778-780.206

Google Scholar

[5] F. La Via, N. Piluso, P. Fiorenza, M. Mauceri, C. Vecchio, A. Pecora and D. Crippa, Mater. Sci. Forum 821-823 (2015) 157.

DOI: 10.4028/www.scientific.net/msf.821-823.157

Google Scholar

[6] K. Kojima, K. Masumoto, S. Ito, A. Nagata and H. Okumura, ECS Transactions 58 (2013) 111.

Google Scholar

[7] Q. Wahab, T. Kimoto, A. Ellison, C. Hallin, M. Tuominen, R. Yakimova, A. Henry, J. P. Bergman, and E. Janzén, J. Appl. Phys. 72 (1998) 445.

DOI: 10.1063/1.120782

Google Scholar

[8] M. Kitabatake, M. Sasaki, T. Yamashita, K. Tamura, K. Yamada, O. Ishiyama, J. Senzaki and H. Matsuhata, Mater. Sci. Forum 778-780 (2014) 979.

DOI: 10.4028/www.scientific.net/msf.778-780.979

Google Scholar
