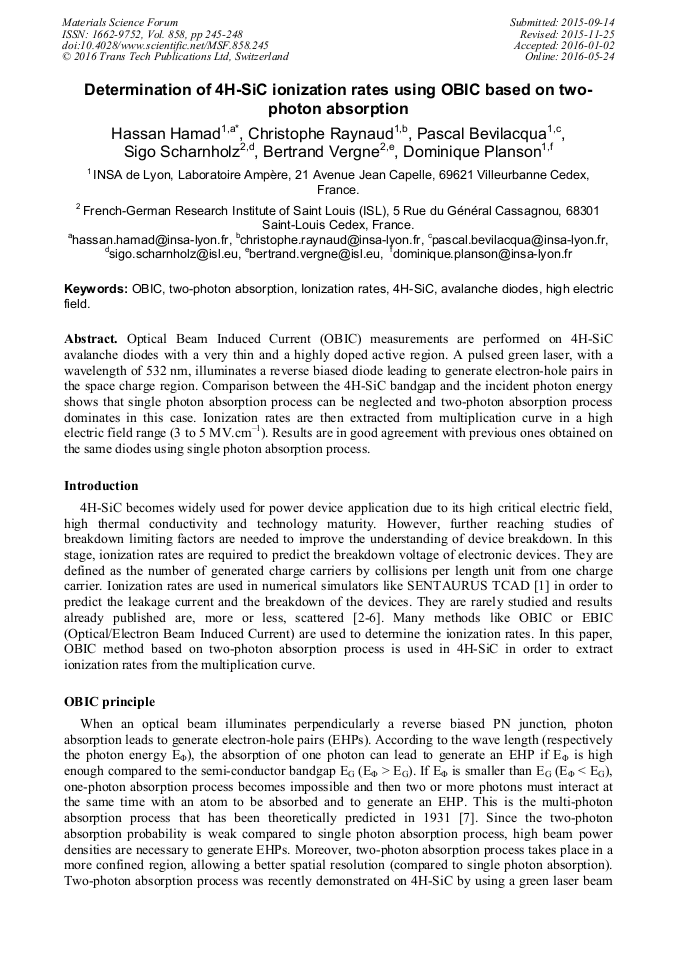

Determination of 4H-SiC Ionization Rates Using OBIC Based on Two-Photon Absorption

Abstract:

Optical Beam Induced Current (OBIC) measurements are performed on 4H-SiC avalanche diodes with a very thin and a highly doped active region. A pulsed green laser, with a wavelength of 532 nm, illuminates a reverse biased diode leading to generate electron-hole pairs in the space charge region. Comparison between the 4H-SiC bandgap and the incident photon energy shows that single photon absorption process can be neglected and two-photon absorption process dominates in this case. Ionization rates are then extracted from multiplication curve in a high electric field range (3 to 5 MV.cm^–1). Results are in good agreement with previous ones obtained on the same diodes using single photon absorption process.
