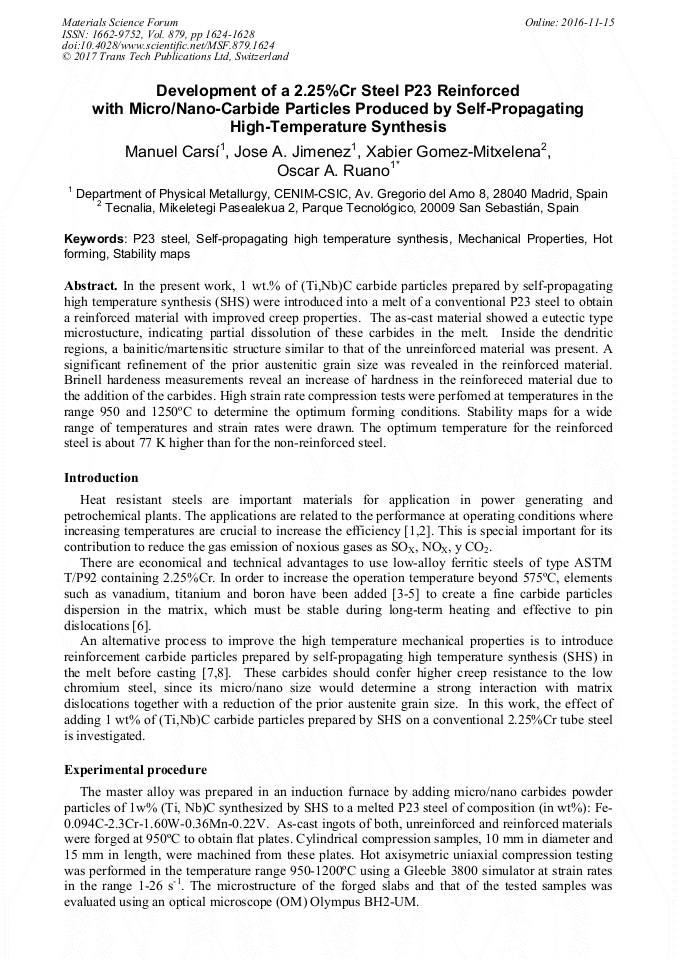

Development of a 2.25%Cr Steel P23 Reinforced with Micro/Nano-Carbide Particles Produced by Self-Propagating High-Temperature Synthesis

Abstract:

In the present work, 1 wt.% of (Ti,Nb)C carbide particles prepared by self-propagating high temperature synthesis (SHS) were introduced into a melt of a conventional P23 steel to obtain a reinforced material with improved creep properties. The as-cast material showed a eutectic type microstucture, indicating partial dissolution of these carbides in the melt. Inside the dendritic regions, a bainitic/martensitic structure similar to that of the unreinforced material was present. A significant refinement of the prior austenitic grain size was revealed in the reinforced material. Brinell hardeness measurements reveal an increase of hardness in the reinforeced material due to the addition of the carbides. High strain rate compression tests were perfomed at temperatures in the range 950 and 1250oC to determine the optimum forming conditions. Stability maps for a wide range of temperatures and strain rates were drawn. The optimum temperature for the reinforced steel is about 77 K higher than for the non-reinforced steel.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 1624-1628
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.1624
• Online since: November 2016
• Authors: Manuel Carsí, José A. Jiménez, Xabier Gomez-Mitxelena, Oscar Ruano
• Keywords: Hot Forming, Mechanical Properties, P23 Steel, Self-Propagating High Temperature Synthesis, Stability Maps

References

[1] R.L. Klueh, A.T. Nelson, J. Nucl. Mater. 371 (2007) 37-52.

[2] W. Bendick, J. Gabrel, B. Hahn, B. Vandenberghe, Int. J. Pres. Ves. Pip. 84 (2007) 13-20.

[3] Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes, ASTM Standard A213/A213M-14, ASTM Int., Pennsylvania, (2014).

DOI: 10.1520/a0213_a0213m-18a

[4] Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service, ASTM Standard A335/A335M-11, ASTM Int., Pennsylvania, (2011).

DOI: 10.1520/a0335_a0335m-09a

[5] S. Paddea, F. Masuyama, A. Shibli, in: Coal Power Plant Materials and Life Assessment, Woodhead Publishing in Materials, Cambridge, UK, 2014, p.87–106.

DOI: 10.1533/9780857097323.1.87

[6] K. Miyata, M. Igarashi, Y. Sawaragi, ISIJ Int. 39 (1999) 947–954.

[7] Y. Yang, H. Wang, Y. Liang, R. Zhao, Q. Jiang, Mater. Sci Eng. A445-446 (2007) 398-404.

[8] I. Erauskin, PhD Thesis. Escuela Técnica Superior de Ingeniería de Bilbao. (2009).

[9] I. Rieiro, M. Carsí, O.A. Ruano, Mater. Sci. Technol. 25 (2009) 995.

[10] I. Rieiro, O.A. Ruano, M. Eddahbi, M. Carsí, J. Mater. Proc. Technol. 78 (1998) 177.

[11] H.L. Gegel, J.C. Malas, S.M. Doraivelu, V.A. Shende, Metals Handbook, vol. 14, ASM, Metals Park, 1987, p.417.

[12] J.C. Malas, V. Seetharaman: JOM 44 (1992) 8.

[13] J. C. Malas III, PhD Thesis, Ohio University, (1991).
