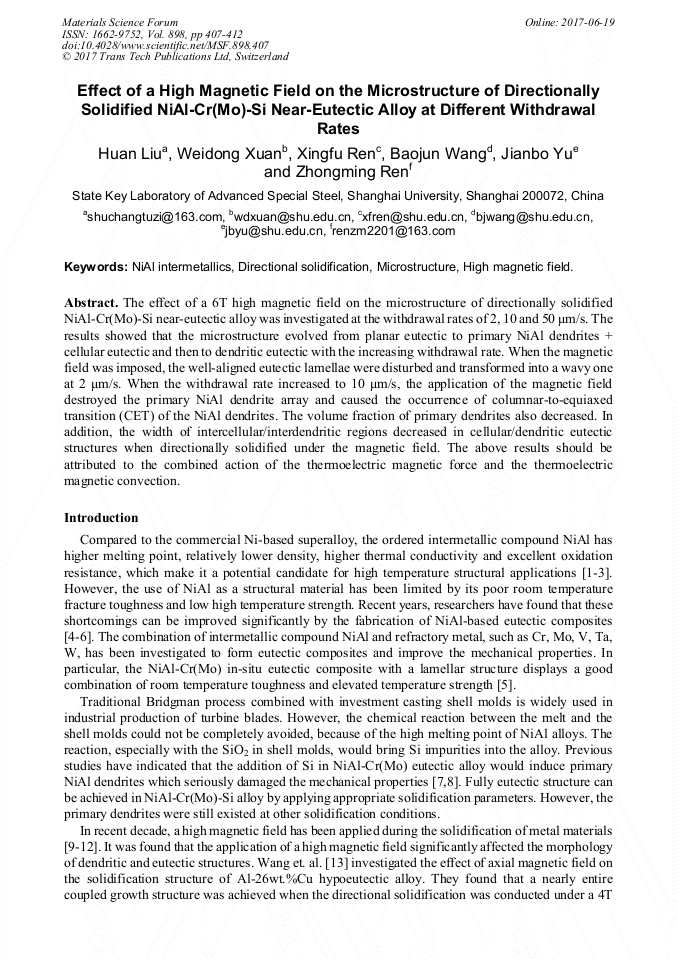

Effect of a High Magnetic Field on the Microstructure of Directionally Solidified NiAl-Cr(Mo)-Si Near-Eutectic Alloy at Different Withdrawal Rates

Abstract:

The effect of a 6T high magnetic field on the microstructure of directionally solidified NiAl-Cr (Mo)-Si near-eutectic alloy was investigated at the withdrawal rates of 2, 10 and 50 μm/s. The results showed that the microstructure evolved from planar eutectic to primary NiAl dendrites + cellular eutectic and then to dendritic eutectic with the increasing withdrawal rate. When the magnetic field was imposed, the well-aligned eutectic lamellae were disturbed and transformed into a wavy one at 2 μm/s. When the withdrawal rate increased to 10 μm/s, the application of the magnetic field destroyed the primary NiAl dendrite array and caused the occurrence of columnar-to-equiaxed transition (CET) of the NiAl dendrites. The volume fraction of primary dendrites also decreased. In addition, the width of intercellular/interdendritic regions decreased in cellular/dendritic eutectic structures when directionally solidified under the magnetic field. The above results should be attributed to the combined action of the thermoelectric magnetic force and the thermoelectric magnetic convection.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 407-412
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.407
• Online since: June 2017
• Authors: Huan Liu*, Wei Dong Xuan, Xing Fu Ren, Bao Jun Wang, Jian Bo Yu, Zhong Ming Ren
• Keywords: Directional Solidification, High Magnetic Field, Microstructure, NiAl Intermetallics

References

[1] R.D. Noebe, R.R. Bowman, M.V. Nathal, Physical and mechanical properties of the B2 compound NiAl, Inter. Mater. Rev. 38 (1993) 193-232.

DOI: 10.1179/imr.1993.38.4.193

[2] D.B. Miracle, The physical and mechanical properties of NiAl, Acta Metall. Mater. 41 (1993) 649-684.

[3] R. Darolia, NiAl alloys for high-temperature structural applications, JOM 43 (1991) 44-49.

DOI: 10.1007/bf03220163

[4] H.E. Cline, J.L. Walter, The effect of alloy additions on the rod-plate transition in the eutectic NiAl-Cr, Metall. Trans. 1 (1970) 2907-2917.

DOI: 10.1007/bf03037830

[5] D.R. Johnson, X.F. Chen, B.F. Oliver, R.D. Noebe, J.D. Whittenberger, Processing and mechanical properties of in-situ composites from the NiAl-Cr and the NiAl-(Cr, Mo) eutectic systems, Intermetallics 3 (1995) 99-113.

DOI: 10.1016/0966-9795(95)92674-o

[6] H. Bei, E.P. George, Microstructures and mechanical properties of a directionally solidified NiAl-Mo eutectic alloy, Acta Mater. 53 (2005) 69-77.

DOI: 10.1016/j.actamat.2004.09.003

[7] H. Liu, W.D. Xuan, X.L. Xie, J.B. Yu, J. W, Z.M. Ren, Microstructure evolution and room temperature fracture toughness of directionally solidified NiAl–31Cr3Mo–0. 2Si near-eutectic alloy at different withdrawal rates, Mater. Sci. Eng. A 678 (2016).

DOI: 10.1016/j.msea.2016.10.002

[8] J.D. Whittenberger, S.V. Raj, I.E. Locci, J.A. Salem, Effects of Minor Alloying Additions on the Microstructure, Toughness, and Creep Strength of Directionally Solidified NiAl-31Cr-3Mo, In: K.J. Hemker, D.M. Dimiduk, H. Clemens, R. Darolia, H. Inui, J.M. Larsen (Eds. ), Structural Intermetallics 2001, The Minerals, Metals and Materials Society, Warrendale, 2001, pp.775-784.

DOI: 10.1016/s0966-9795(99)00023-0

[9] H. Yasuda, I. Ohnaka, Y. Yamamoto, A. Wismogroho, N. Takezawa, K. Kishio, Alignment of BiMn crystal orientation in Bi-20 at% Mn alloys by laser melting under a magnetic field, Mater. Trans. 44 (2003) 2550-2554.

DOI: 10.2320/matertrans.44.2550

[10] P. Lehmann, R. Moreau, D. Camel, R. Bolcato, Modification of interdendritic convection in directional solidification by a uniform magnetic field, Acta Mater. 46 (1998) 4067-4079.

DOI: 10.1016/s1359-6454(98)00064-0

[11] X. Li, A. Gagnoud, Y. Fautrelle, Z. M. Ren, R. Moreau, Y.D. Zhang, C. Esling, Dendrite fragmentation and columnar-to-equiaxed transition during directional solidification at lower growth speed under a strong magnetic field, Acta Mater. 60 (2012).

DOI: 10.1016/j.actamat.2012.02.019

[12] X. Li, A. Gagnoud, Y. Fautrelle, Z.M. Ren, R. Moreau, Influence of thermoelectric effects on the morphology of Al-Si eutectic during directional solidification under an axial strong magnetic field, J. Cryst. Growth 367 (2013) 94-103.

DOI: 10.1016/j.jcrysgro.2012.12.032

[13] J. Wang, Study on influence of interaction between thermoelectric currents and magnetic field during directional solidification of binary alloy, PhD Thesis, Shanghai University, (2014).

[14] C.J. Li, H. Yang, Z.M. Ren, W.L. Ren, Y.Q. Wu, On nucleation temperature of pure aluminum in magnetic fields, Prog. Electromagn. Res. Lett. 15 (2010) 45-52.

DOI: 10.2528/pierl10041412
