High Temperature Rupture Life of Nickel-Based Superalloy under Directional Solidification with High Temperature Gradient

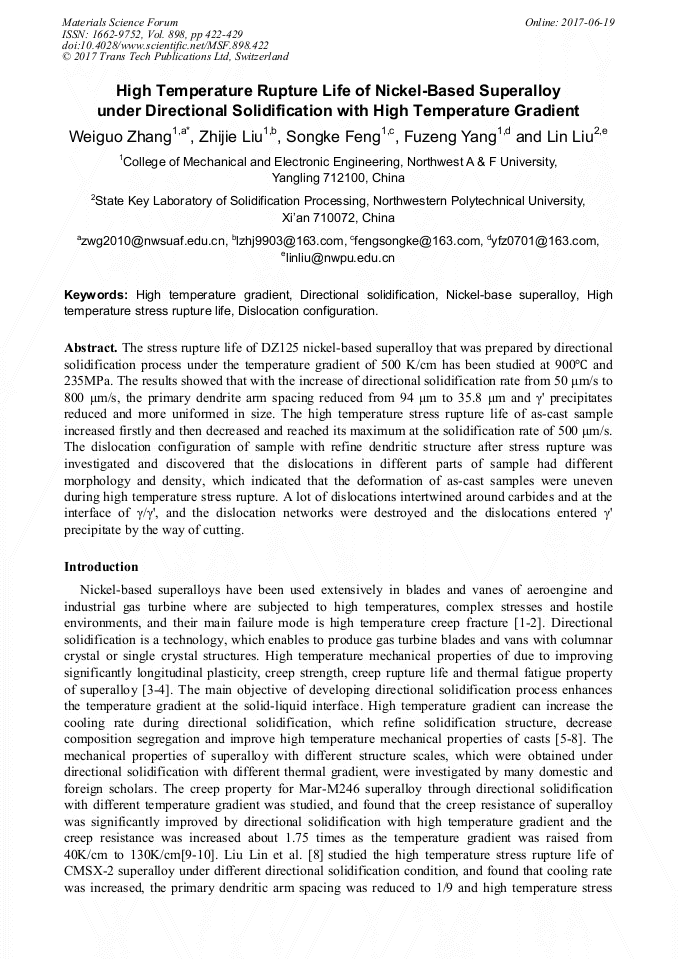

Abstract:

The stress rupture life of DZ125 nickel-based superalloy that was prepared by directional solidification process under the temperature gradient of 500 K/cm has been studied at 900°C and 235MPa. The results showed that with the increase of directional solidification rate from 50 μm/s to 800 μm/s, the primary dendrite arm spacing reduced from 94 μm to 35.8 μm and γ' precipitates reduced and more uniformed in size. The high temperature stress rupture life of as-cast sample increased firstly and then decreased and reached its maximum at the solidification rate of 500 μm/s. The dislocation configuration of sample with refine dendritic structure after stress rupture was investigated and discovered that the dislocations in different parts of sample had different morphology and density, which indicated that the deformation of as-cast samples were uneven during high temperature stress rupture. A lot of dislocations intertwined around carbides and at the interface of γ/γ', and the dislocation networks were destroyed and the dislocations entered γ' precipitate by the way of cutting.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 422-429
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.422
• Online since: June 2017
• Authors: Wei Guo Zhang*, Zhi Jie Liu, Song Ke Feng, Fu Zeng Yang, Lin Liu
• Keywords: Directional Solidification, Dislocation Configuration, High Temperature Gradient, High Temperature Stress Rupture Life, Nickel-Base Superalloy

References

[1] S.G. Tian, Y. C. Xue, Z. Zeng, D.L. Shu, J. Xie, Fracture mechanism of a nickel-based single crystal superalloy during creep at moderate temperature, Rare Metal Mater. and Eng. 43 (2014) 1092-1098.

DOI: 10.1016/j.msea.2013.11.049

[2] Q.Y. Xu, B.C. Liu, J. Yu, Progress on modeling and simulation of directional solidification of superalloy turbine blade casting, China Foundry. 9 (2012) 69-77.

[3] E. M. Francis, B. M. B. Grant, J. Q. Fonseca, P. J. Phillips, M. J. Mills, M. R. Daymond, M. Preuss, High-temperature deformation mechanisms in a polycrystalline nickel-base superalloy studied by neutron diffraction and eletron microscopy, Acta Mater. 74(2014).

DOI: 10.1016/j.actamat.2014.04.028

[4] J. Zhang, L. H. Lou, Directional solidification assisted by liquid metal cooling, J. Mater. Sci. Technol. 23(2007) 289-299.

[5] S. S. Hu, L. Liu, Q. W. Cui, T. W. Huang, J. Zhang, H. Z. Fu, Converging competitive growth in bicrystal of Ni-based superalloy during directional solidification, Acta Metal. Sin. 52(2016) 897-904.

[6] M. L. Clemens, A. Price, R. S. Bellows, Advanced solidification processing of an industrial gas turbine engine component, JOM. 55(2003) 27-31.

DOI: 10.1007/s11837-003-0156-1

[7] A. J. Elliott, T. M. Pollock, S. Tin, W. T. King, S. C. Huang, M. F. X. Gigliotti, Directionalsolidification of large superalloy castings with radiation and liquid-metal cooling: a comparative assessment. Metall. Mater. Trans. A., 35(2004).

DOI: 10.1007/s11661-004-0066-z

[8] L. Liu, T. W. Huang, J. Zhang, H. Z. Fu. Microstructure and stress rupture properties of single crystal superalloy CMSX-2 under high thermal gradient directional solidification. Mater. Letters., 61 (2007) 227-230.

DOI: 10.1016/j.matlet.2006.04.037

[9] M. McLean, Directionally Solidified Materials for High temperature Service. London: The Metals Society, 1983: 170.

[10] P. N. Quested, M. McLean, Solidification Technology in the Foundry and Cast House, The Metals Society. London, 1983, pp.586-591.

[11] L. Liu, J. Zhang, J. Shen, T. W. Huang, H. Z. Fu, Advances in directional solidification techniques of superalloy. Mater. China. 29(2010) 1-8.

[12] S. Balsones, G. Feng, L. Peterson, J. Schaeffer, Microstructure and mechanical behavior of iquid metal cooled directionally solidified GTD-444, M. Rappaz, R. Triviedi (Eds. ), Solidification processes and microstructure A symposium, Wilfried Kurz Warrendale, T.M.S. 2004: 77-83.

[13] W. G. Zhang, L. Liu, X. B. Zhao, T. W. Huang, Z. H. Yu, M. Qu, H. Z. Fu, Effect of directional solidification cooling rates on dendrite spacings of DZ125 alloy under high thermal gradient, Rare Metals. 28(2009) 633-638.

DOI: 10.1007/s12598-009-0121-4

[14] W. G. Zhang, L. Liu, Solidification microstructure of directionally solidified superalloy under high temperature gradient. Rare Metals. 31(2012) 541-546.

DOI: 10.1007/s12598-012-0554-z

[15] D. H. Ma, Z. X. Yang, W. Y. Wang, S. J. He, W. H. Shu, R. C. Zhao, Y. G. Wang, G. M. Zhu, X. Wang, Study on the relationship between withdraw rate of directionally solidified DZ17 superalloy and structures and properties under liquid metal cooling process, Journal of Shanghai Iron & Steel Research, 1984, 4: 16-21. (In Chinese).

[16] Y. Z. Liang. Study on crystal orientation of columnar grain in directionally solidified nickel-based superalloy by X-ray diffraction back reflection Laue photograph method, Journal of Shanghai Iron & Steel Res. 1 (1986) 13-16.
