Microstructures of Low Angle Boundaries of a Third Generation Single Crystal Superalloy DD9

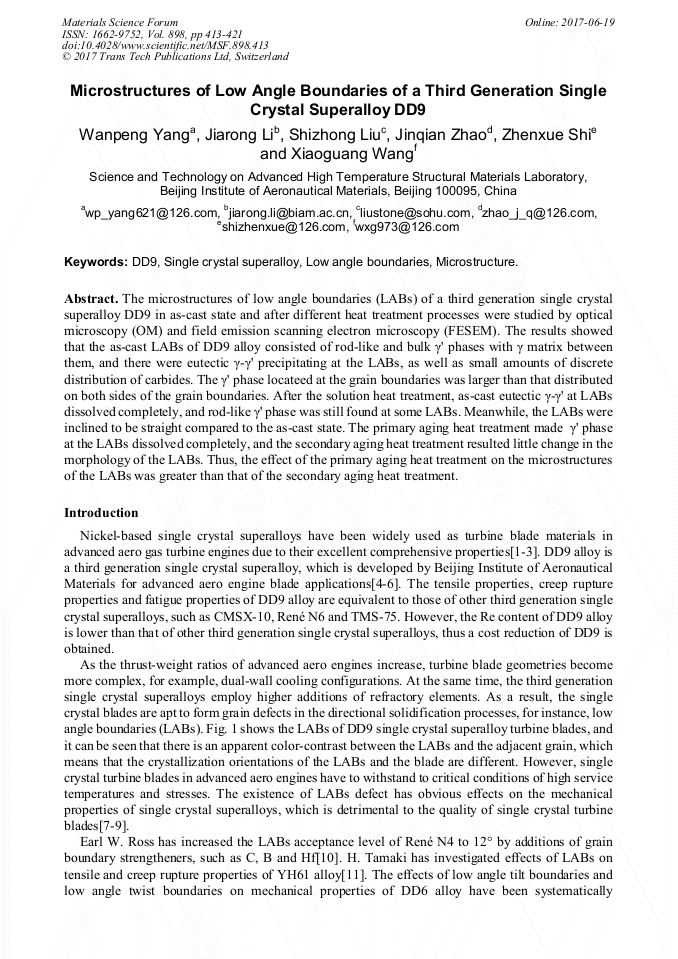

Abstract:

The microstructures of low angle boundaries (LABs) of a third generation single crystal superalloy DD9 in as-cast state and after different heat treatment processes were studied by optical microscopy (OM) and field emission scanning electron microscopy (FESEM). The results showed that the as-cast LABs of DD9 alloy consisted of rod-like and bulk γ' phases with γ matrix between them, and there were eutectic γ-γ' precipitating at the LABs, as well as small amounts of discrete distribution of carbides. The γ' phase locateed at the grain boundaries was larger than that distributed on both sides of the grain boundaries. After the solution heat treatment, as-cast eutectic γ-γ' at LABs dissolved completely, and rod-like γ' phase was still found at some LABs. Meanwhile, the LABs were inclined to be straight compared to the as-cast state. The primary aging heat treatment made γ' phase at the LABs dissolved completely, and the secondary aging heat treatment resulted little change in the morphology of the LABs. Thus, the effect of the primary aging heat treatment on the microstructures of the LABs was greater than that of the secondary aging heat treatment.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 413-421
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.413
• Online since: June 2017
• Authors: Wan Peng Yang*, Jia Rong Li, Shi Zhong Liu, Jin Qian Zhao, Zhen Xue Shi, Xiao Guang Wang
• Keywords: DD9, Low Angle Boundary, Microstructure, Single Crystal Superalloy

References

[1] M. Gell, D.N. Duhl, A.F. Giamei, The development of single crystal superalloy turbine blades, Superalloys 1980, Warrendale, TMS, 205-214.

DOI: 10.7449/1980/superalloys_1980_205_214

[2] B.B. Seth, Superalloys - The utility gas turbine perspective, Superalloys 2000, Warrendale, TMS, 3-16.

DOI: 10.7449/2000/superalloys_2000_3_16

[3] K. Kawagishi, T. Yokokawa, T. Kobayashi, Y. Koizumi, M. Sakamoto, M. Yuyama, H. Harada, I. Okada, M. Taneike, H. Oguma, Development of low or zero-rhenium high-performance Ni-base single crystal superalloys for jet engine and power generation applications, Superalloys 2016, Warrendale, TMS, 115-122.

DOI: 10.1002/9781119075646.ch13

[4] J.R. Li, S.Z. Liu, Z.X. Shi, Y.S. Luo, X.G. Wang, Third generation single crystal superalloy DD9, J. Iron. Steel Res. 23 (2011) 337-340.

[5] J.R. Li, S.Z. Liu, X.G. Wang, Z.X. Shi, J.Q. Zhao, Development of a low-cost third generation single crystal superalloy DD9, Superalloys 2016, Warrendale, TMS, 57-63.

DOI: 10.1002/9781119075646.ch6

[6] X.G. Wang, J.R. Li, J. Yu, S.Z. Liu, Z.X. Shi, X.D. Yue, Tensile anisotropy of single crystal superalloy DD9, Acta Metal. Sin. 51 (2015) 1253-1260.

[7] D.M. Shah, A. Cetel, Evaluation of PWA1483 for large single crystal IGT blade applications, Superalloys 2000, Warrendale, TMS, 295-304.

DOI: 10.7449/2000/superalloys_2000_295_304

[8] Y. Wang, D. Wang, G. Zhang, L.H. Lou, J. Zhang, Characterization of tilt and twist low angle grain boundaries and their effects on intermediate-temperature creep deformation behaviour, Superalloys 2016, Warrendale, TMS, 757-762.

DOI: 10.1002/9781119075646.ch81

[9] Y.S. Zhao, J. Zhang, Y.S. Luo, G. Sha, D.Z. Tang, Q. Feng, Effect of Hf and B on transverse and longitudinal creep of a Re-containing nickel-base bicrystal superalloy, Superalloys 2016, Warrendale, TMS, 683-692.

DOI: 10.1002/9781119075646.ch73

[10] E.W. Ross, K.S. O' Hara, René N4: A first generation single crystal turbine airfoil with improved oxidation resistance, low angle boundary strength and superior long time rupture strength, Superalloys 1996, Warrendale, TMS, 19-25.

DOI: 10.7449/1996/superalloys_1996_19_25

[11] H. Tamaki, A. Yoshinari, A. Okayama, S. Nakamura, Development of a low angle grain boundary resistant single crystal superalloy YH61, Superalloys 2000, Warrendale, TMS, 757-766.

DOI: 10.7449/2000/superalloys_2000_757_766

[12] J.Q. Zhao, J.R. Li, S.Z. Liu, H.L. Yuan, M. Han, Effect of low angle grain boundaries on tensile properties of single crystal superalloy DD6 at 980 °C, Rare Metal Mat. Eng. 36 (2007) 2232-2235.

[13] J.R. Li, J.Q. Zhao, S.Z. Liu, M. Han, Effects of low angle boundaries on the mechanical properties of single crystal superalloy DD6, Superalloys 2008, Warrendale, TMS, 443-451.

DOI: 10.7449/2008/superalloys_2008_443_451

[14] Z.X. Shi, J.R. Li, S.Z. Liu, J.Q. Zhao, Transverse stress rupture properties of DD6 single crystal superalloy with twist low angle boundaries, J. Mat. Eng. (2009) 80-83.

[15] Z.X. Shi, J.R. Li, S.Z. Liu, J.Q. Zhao, M. Han, Microstructures of low angle boundaries of DD6 single crystal superalloy blades, Rare Metal Mat. Eng. 40 (2011) 2117-2120.

[16] Z.X. Shi, J.R. Li, S.Z. Liu, J.Q. Zhao, Effect of LAB on the stress rupture properties and fracture characteristic of DD6 single crystal superalloy, Rare Metal Mat. Eng. 41 (2012) 962-966.

DOI: 10.1016/s1875-5372(12)60053-8

[17] R.M. Kearsey, J.C. Beddoes, K.M. Jaansalu, W.T. Thompson, P. Au, The effects of Re, W and Ru on microsegregation behaviour in single crystal superalloy systems, Superalloys 2004, Warrendale, TMS, 801-810.

DOI: 10.7449/2004/superalloys_2004_801_810

[18] M. Ramsperger, R.F. Singer, C. Körner, Microstructure of the nickel-base superalloy CMSX-4 fabricated by selective electron beam melting, Metall. Mater. Trans. A 47 (2016) 1469–1480.

DOI: 10.1007/s11661-015-3300-y

[19] H. Z Fu, X.G. Geng, High rate directional solidification and its application in single crystal superalloys, Sci. Technol. Adv. Mat. 2 (2001) 197-204.

DOI: 10.1016/s1468-6996(01)00049-3

[20] Q.Z. Chen, C.N. Jones, D.M. Knowles, The grain boundary microstructures of the base and modified RR 2072 bicrystal superalloys and their effects on the creep properties, Mat. Sci. Eng. A 385 (2004) 402-418.

DOI: 10.1016/s0921-5093(04)00905-0

[21] K. Wu, G.Q. Liu, B.F. Hu, Y.W. Zhang, Y. Tao, J.T. Liu, Effect of solution cooling rate and post treatment on γ' precipitation and microhardness of a novel nickel-based P/M superalloy FGH98I, Rare Metal Mat. Eng. 41 (2012) 1267-1272.
